Measurement Range: Up to 1000V DC / 750V AC, 20A AC/DC, 100mF Capacitance
Key Features: True RMS, NCV (with 4-segment bar graph), LIVE Single-Probe Test, Max/Min/Relative Mode
Display: 6000 Count Large Backlit LCD
Safety Rating: CAT II 1000V / CAT III 600V (Overload protection across all ranges)
The UNI-T UT890D+ True RMS Multimeter is a professional, manual-range True RMS digital multimeter designed for precision electrical maintenance, PCB troubleshooting, and automotive electronics. Featuring a large 6000-count backlit LCD display, it measures AC/DC voltage up to 1000V/750V, AC/DC current up to 20A, capacitance up to 100mF, and resistance up to 60M$Omega$. It comes equipped with Non-Contact Voltage (NCV) detection, LIVE line testing, hFE transistor testing, and blown-fuse visual/acoustic alarms.
True RMS Measurement: Delivers reliable, accurate AC voltage and current readings across non-linear and distorted circuit waveforms.
Heavy-Duty 20A Current Capacity: Measures up to 20A AC/DC, making it suitable for automotive starter/charging diagnostics and high-draw industrial loads.
Massive 100mF Capacitance Range: Fast-response capacitance mode allows direct testing of large motor-start and power supply filter capacitors up to 100mF (100,000μF) in under 12 seconds.
Non-Contact Voltage (NCV) Detection: Features multi-segment visual and audible alarms to detect live AC voltage through walls or insulation without physical contact.
LIVE Neutral/Live Wire Test: Easily distinguish between Live and Neutral wires using a single test probe with clear acoustic and visual indicator prompts.
Fuse Detection & Overload Protection: Built-in acoustic-optic alarm warns if an input fuse is blown or current limits are exceeded.
Max/Min & Relative (∆) Modes: Capture peak fluctuations or zero out test lead resistance for low-ohm testing.

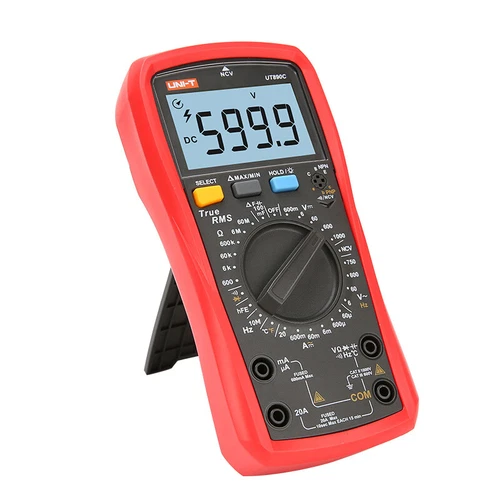

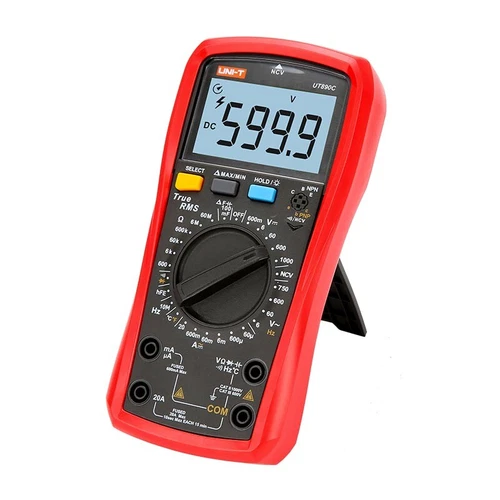

Ergonomic Workshop Build: Equipped with a bright LCD backlight, data hold, auto power off (with disable option), integrated test lead holders, and a sturdy tilt kickstand.
| Parameter | Measurement Range | Basic Accuracy |
| DC Voltage (V) | 600mV / 6V / 60V / 600V / 1000V | ±(0.5% + 2) |
| AC Voltage (V) | 6V / 60V / 600V / 750V | ±(0.8% + 3) |
| ACV Frequency | 10Hz ~ 10kHz | ±(0.1% + 5) |
| DC Current (A) | 60μA / 600μA / 6mA / 60mA / 600mA / 20A | ±(0.8% + 8) |
| AC Current (A) | 60μA / 600μA / 6mA / 60mA / 600mA / 20A | ±(1.0% + 12) |
| Resistance (Ω) | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ | ±(0.8% + 3) |
| Capacitance (F) | 6.000nF ~ 60.00mF / 100.0mF | ±(3.0% + 10) |
| Frequency (Hz) | 9.999Hz ~ 9.999MHz | ±(0.1% + 5) |
| Display Count | 6000 counts | — |
| True RMS | Yes | — |
| NCV Detection | Yes (Audio/Visual LED indicator) | — |
| LIVE Wire Test | Yes | — |
| Transistor (hFE) | Supported | — |
| Diode & Continuity | Supported (Buzzer & LED indicator) | — |
| Power Supply | 2 × 1.5V AAA (R03) Batteries | — |

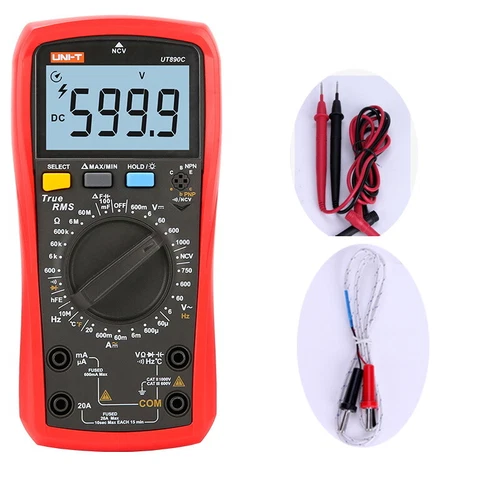

1 × UNI-T UT890D+ True RMS Digital Multimeter
1 × Pair of High-Grade Multimeter Test Leads
1 × User Manual
