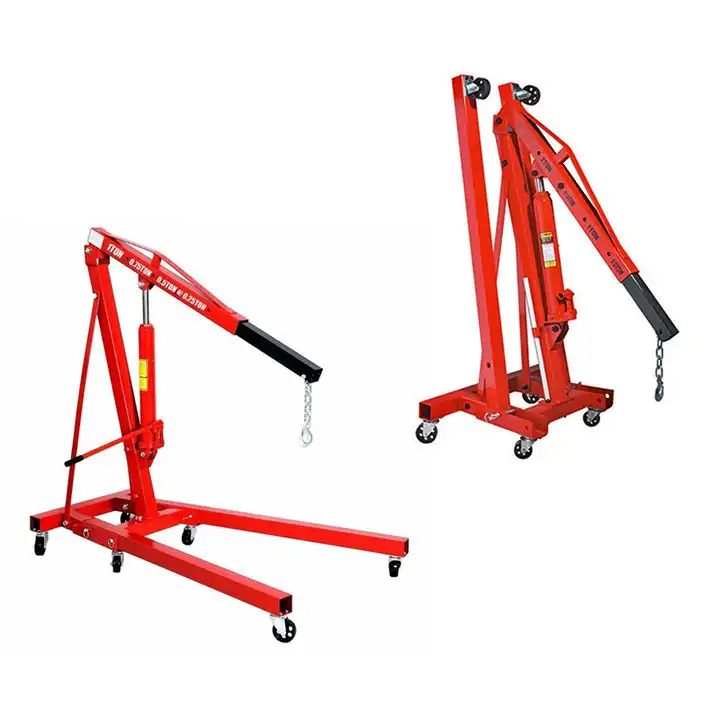

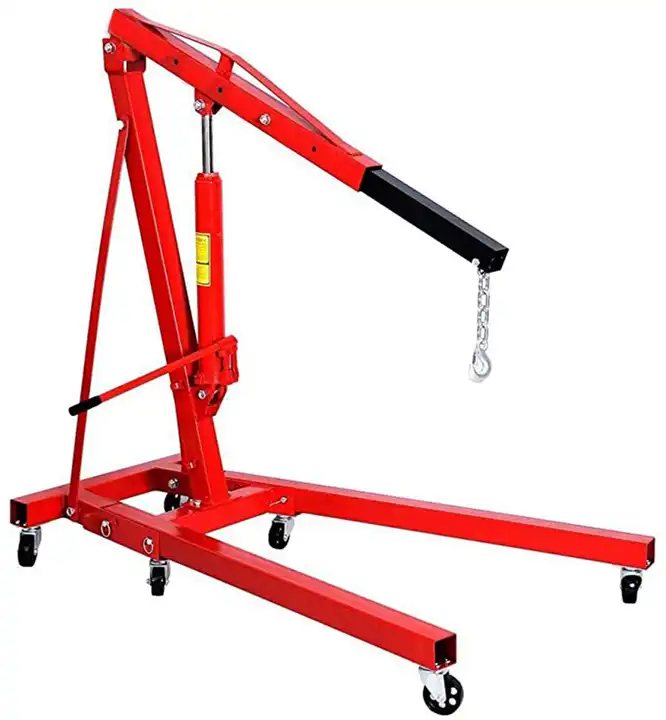

Built for professional auto mechanics, engine rebuilders, and serious DIYers, this 2-Ton Hydraulic Engine
Crane Hoist(Cherry Picker) is designed to safely pull, install, and transport heavy automotive engines, transmissions, and shop equipment.
Constructed from thick, high-grade structural steel with reinforced stress points, this crane handles heavy loads with stability and precision. The long-reach telescopic boom adjusts across four distinct weight settings, allowing you to reach deep into engine bays while maintaining balanced lifting capacity.
2-Ton (4,000 lbs) Maximum Capacity: Heavy-duty hydraulic ram effortlessly lifts full-size engines, gearboxes, and shop equipment.
4-Position Adjustable Boom: Telescopic boom extends with clearly marked capacity positions:
2.0 Ton (2000 kg) Position
1.5 Ton (1500 kg) Position
1.0 Ton (1000 kg) Position
0.5 Ton (500 kg) Position
6 Heavy-Duty Swivel Casters: 360-degree rotating steel casters deliver smooth movement, easy positioning, and exceptional maneuvering in tight shop spaces.
Space-Saving Folding Legs: Quick-release pin mechanism allows the base legs to fold upright, minimizing workshop floor space when stored.
Heavy-Duty Latch Hook & Chain: Includes a forged steel grab hook with safety latch mounted on a high-strength chain for secure engine slinging.
Precise Hydraulic Release: Manual release valve provides smooth, controlled lowering speeds for accurate engine positioning onto mounts or stands.
Maximum Lifting Capacity: 2 Ton / 2000 kg
Hydraulic Ram Capacity: 8-Ton Long-Ram Jack
Boom Positions: 0.5T, 1T, 1.5T, 2T
Frame Material: Heavy-Gauge Tubular Structural Steel
Wheel Configuration: 6 Solid Steel 360° Swivel Casters
Base Type: Folding Legs with Pin Lock System
Finish: Industrial Powder-Coated Red Finish
1x 2-Ton Folding Hydraulic Engine Crane Frame Assembly
1x 8-Ton Hydraulic Long Ram Jack with Handle
1x Adjustable Telescopic Extension Boom
1x Heavy-Duty Lifting Chain & Safety Latch Hook
6x Steel Swivel Caster Wheels
Assembly Hardware & Lock Pins
User Manual
