Read & Erase Fault Codes (DTCs) from all modules.
Live Data Streaming with graphing and freeze-frame data.
Service Resets: Oil, Brake, SAS, and DPF regeneration.
Component Activations: Test fuel pumps, fans, and injectors.
ECU Coding & Adaptations: Program new injectors or reset transmission values.

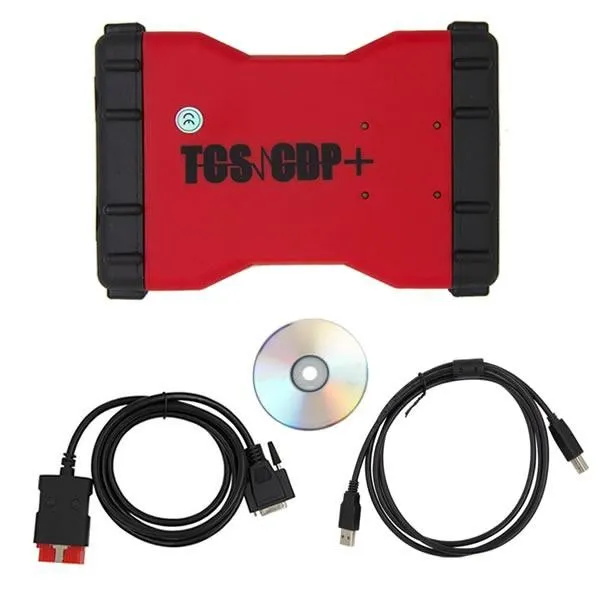

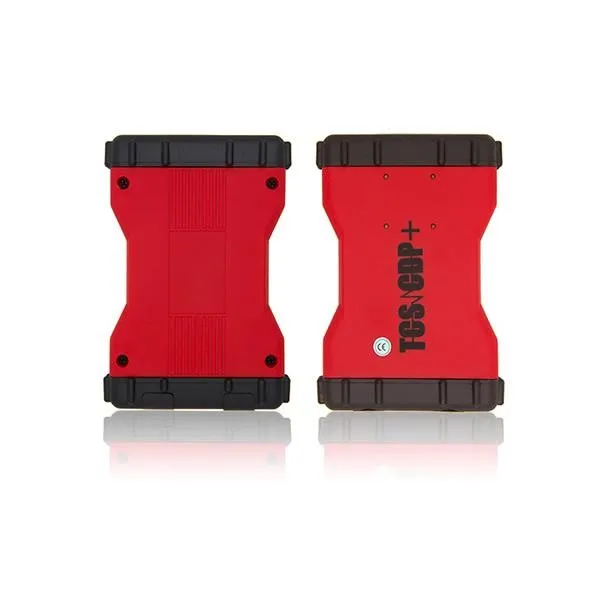

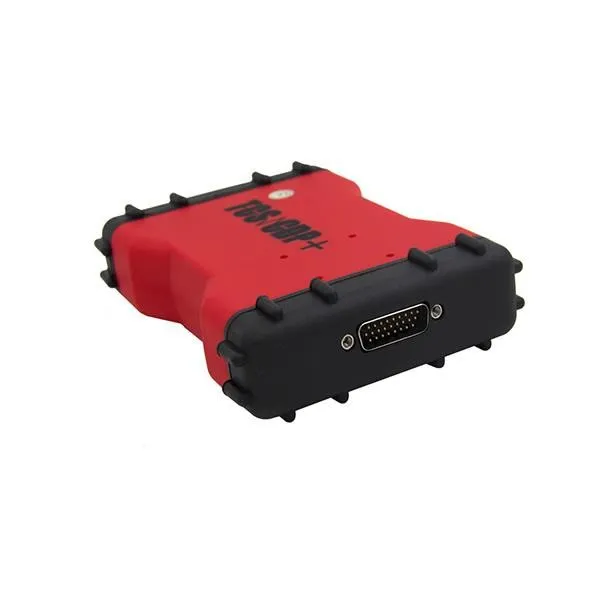

TCS CDP Pro+ Universal Diagnostic Tool is a powerful, wireless diagnostic interface that acts as a bridge between your vehicle and a PC. Compatible with software like Autocom, Delphi, and WOW, it supports deep-system scanning for over 54,000 vehicle systems across 4,000+ models. Whether you are working on a 1988 sedan or a 2024 heavy-duty truck, the TCS CDP provides the bi-directional control and data logging needed for professional repairs.
Dual-Board Intelligence: Built with a high-quality "Green PCB" and NEC Relays, ensuring stable 12V/24V switching and long-term durability in professional shop environments.
Intelligent System Scan (ISS): Automatically scans all ECUs (Engine, ABS, SRS, Gearbox, Climate Control) and displays stored fault codes in one comprehensive report, saving hours of manual checking.
Flight Recorder Function: Record live sensor parameters in real-time while driving the vehicle. With built-in memory, you can capture intermittent faults without needing a laptop in the passenger seat.
Battery Voltage Monitor: The tool automatically detects whether it’s plugged into a 12V car or a 24V truck and warns you with both sound and light if the battery voltage drops too low for safe coding.
LED Diagnostic Connector: The 16-pin OBD2 head features a built-in LED light to help you find the vehicle's diagnostic port in dark footwells or behind hidden panels.
Multi-Color Status Indicator: A large 360-degree LED ring changes color (e.g., alternating blue and green) to communicate the communication status between the PC, the tool, and the vehicle.
| Specification | Details |
| Compatibility | Cars, Light Vans, and Heavy Duty Trucks (12V / 24V) |
| Connectivity | Bluetooth (up to 30m) and High-Speed USB |
| Protocols | 2xHS CAN, SW CAN, K/L Line, VPW, PWM, RS485, TTL |
| Coverage | 47 Car Brands / 37 Truck Brands |
| OS Support | Windows XP, 7, 8, 10, 11 (32/64-bit) |
| Firmware | Updateable via USB as new vehicle versions are released |
Read & Erase Fault Codes (DTCs) from all modules.
Live Data Streaming with graphing and freeze-frame data.
Service Resets: Oil, Brake, SAS, and DPF regeneration.
Component Activations: Test fuel pumps, fans, and injectors.
ECU Coding & Adaptations: Program new injectors or reset transmission values.
