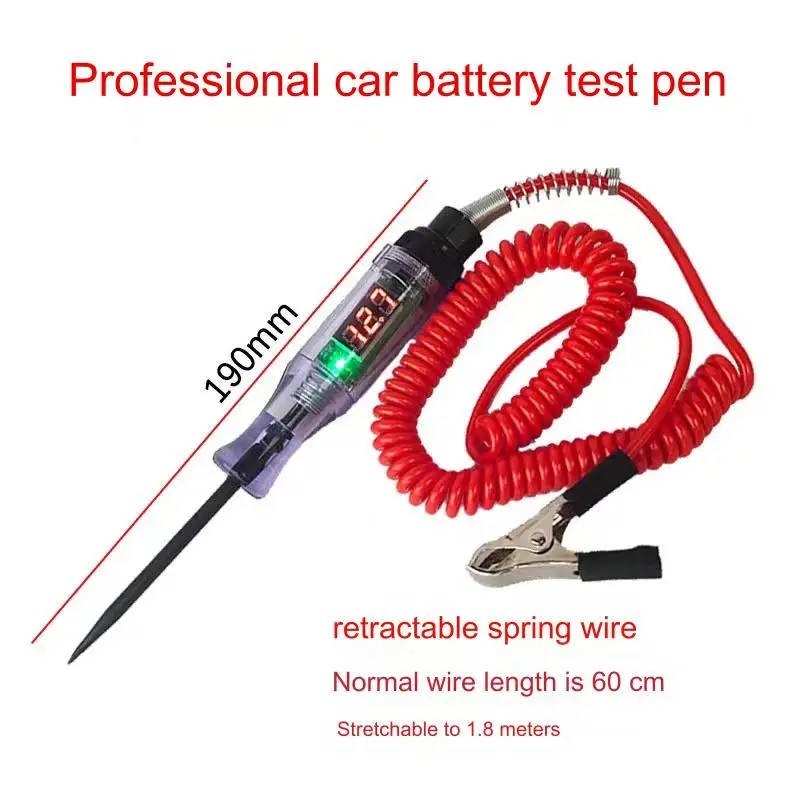

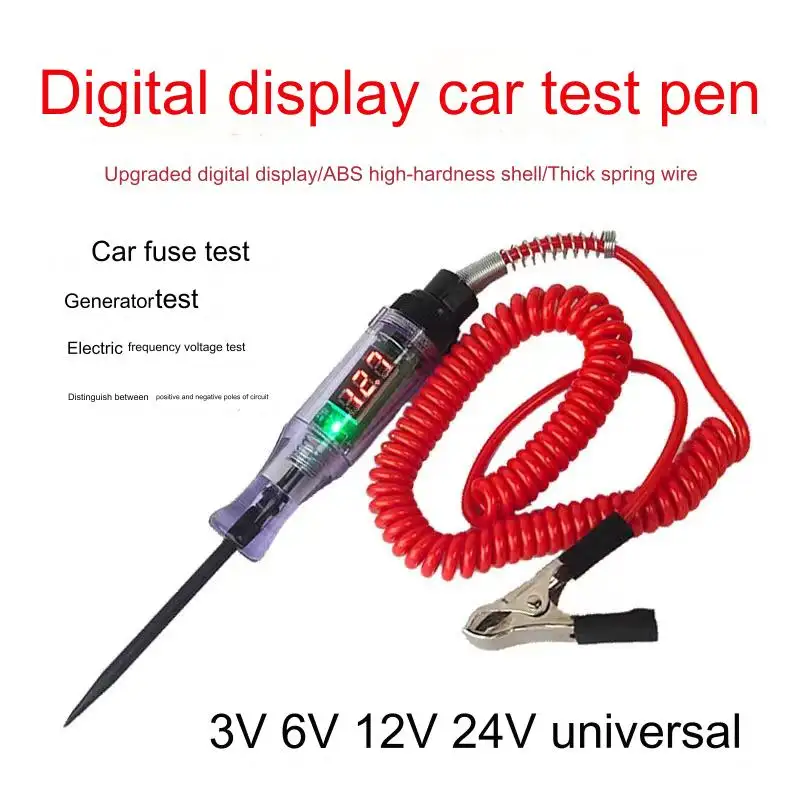

Car Voltage Tester is the essential modern evolution of the traditional automotive circuit tester. While a standard test light only confirms if power is present by glowing, this digital version provides the precise real-time voltage on an integrated LCD, allowing you to catch voltage drops and ground issues that a simple bulb would miss.
Designed for professional technicians and DIY enthusiasts alike, this tool is the primary "first-strike" diagnostic device for troubleshooting fuses, batteries, alternators, and wiring harnesses. It combines the speed of a test light with the accuracy of a digital multimeter.
| Feature | Range / Detail |
| Voltage Detection Range | 3V – 24V DC (Safe for 12V, 24Vsystems) |
| Resolution | 0.1V |
| Probe Material | Heat-treated, sharp stainless steel (piercing-capable) |
| Cord Length | 1.8m Heavy-duty PU spring cable |
| Illumination | Backlit LCD + Dual-color Polarity LED (Red: +, Green: -) |
| Current Draw | < 10mA (Computer Safe / High Impedance) |
Bi-Directional Testing: You can attach the alligator clip to either the positive or negative terminal. The dual-color LEDs will instantly tell you if you've hit power or ground, while the LCD shows the voltage level.
Computer Safe (High Impedance): Unlike old incandescent test lights that draw enough current to accidentally trigger an airbag or fry an ECU, this tester is designed with a high-resistance circuit board, making it safe for sensitive modern vehicle modules.
Extreme Portability: Its slender, pen-style design allows you to reach deep into cramped engine bays or under-dash fuse panels where a full-sized multimeter would be too bulky.
Rugged Build: Constructed with a shatter-proof ABS housing and a heavy-duty strain relief on the cable to prevent internal wire breakage during frequent stretching.
Fuse Testing: Ground the clip and touch both small metal tabs on the back of a fuse. If one side reads 12.6V and the other reads 0.0V, the fuse is blown.
Parasitic Draw/Ground Check: Attach to a power source and touch the probe to a ground point. A reading higher than 0.2V on a ground circuit indicates high resistance (corrosion).
Alternator Health: With the engine running, touch the battery positive terminal. A reading between 13.5V and 14.7V indicates the charging system is healthy.
Sensor Signal Verification: Quickly check for 5V reference signals from the ECU to sensors like the Throttle Position Sensor (TPS).
