Universal TPMS sensor for most vehicle models.
Works with Launch X431 TPMS programming tools.
Supports 315MHz and 433MHz dual frequency.
Provides accurate and stable tyre pressure data.

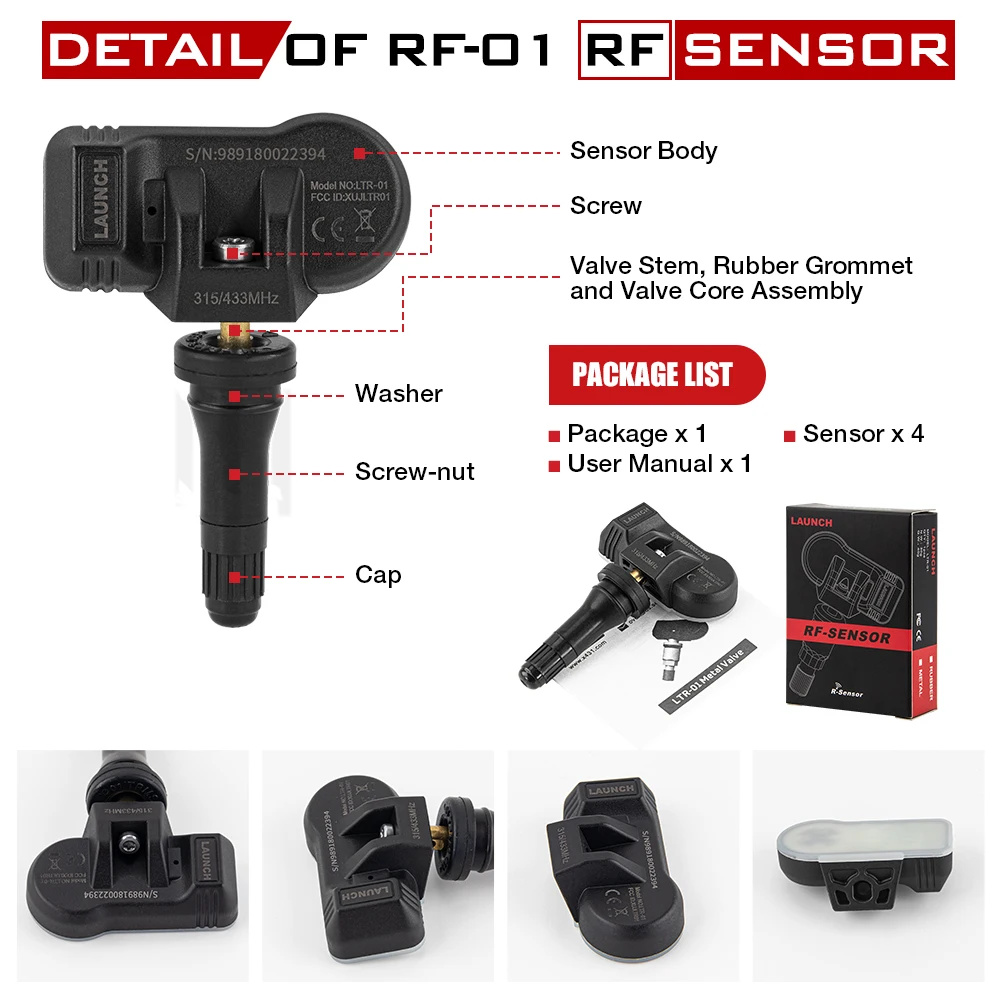

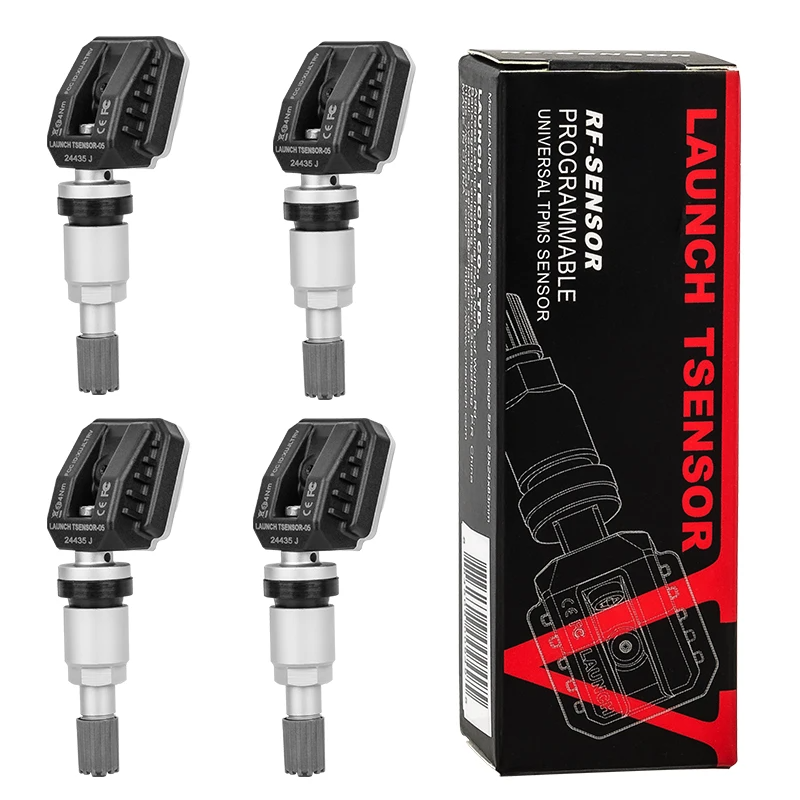

Launch X431 LTR-V Tyre Pressure TPMS Sensor is a high-performance, universal programmable TPMS sensor. It is a "2-in-1" solution, meaning it combines both 315MHz and 433MHz frequencies into a single unit.
Dual Frequency (315MHz + 433MHz): Automatically switches to the correct frequency during programming, covering both American (315MHz) and European/Asian (433MHz) vehicle standards.
98% Vehicle Coverage: Compatible with almost all TPMS-equipped vehicles on the road, including Toyota, Ford, BMW, Mercedes, Nissan, and Hyundai.
Unlimited Programming: Can be reprogrammed an unlimited number of times. If a customer sells their car, the sensor can be wiped and used for a different model.
High-Precision Chip: Features the FXTH87 automotive-grade chip, providing pressure readings accurate to within 0.1 BAR.
Over-the-Air (OTA) Programming: Can be programmed wirelessly even after the tire is already mounted on the rim.
Long Battery Life: Equipped with an automotive-grade battery designed to last 4 to 6 years under normal driving conditions.
Durable Construction: Available in both Metal (Aluminum) and Rubber valve stems to match the look of the vehicle’s original wheels.
| Feature | Details |
| Model | LTR-V (Upgraded LTR-01 / LTR-03) |
| Operating Frequency | 315MHz / 433MHz |
| Battery Voltage | 3.0V |
| Pressure Range | 0 – 800 kPa (0 – 116 PSI) |
| Pressure Accuracy | ±10 kPa ±0.1 BAR |
| Temperature Accuracy | ± 5°C |
| IP Rating | IP67 (Dust tight and waterproof) |
| Weight | ~24g (Rubber) / ~30g (Metal) |
The LTR-V sensor is designed to work specifically within the Launch ecosystem. To program these sensors, your customers will need one of the following Launch TPMS tools:
Launch X431 TSGUN: The professional wand that connects to X431 tablets (Pro3S+, PAD V, PAD VII).
Launch i-TPMS: The newest handheld tool that works either with a tablet or as a standalone via a smartphone app.
Launch CRT5011E: A standalone TPMS diagnostic and programming tool.
