• Accurate digital pressure and temperature measurement for HVAC and refrigeration systems.
• Supports multiple refrigerant types with built-in refrigerant database for easy diagnostics.
• Vacuum measurement and system testing functions help ensure efficient maintenance.
• Durable, user-friendly design with clear digital display for professional field use.

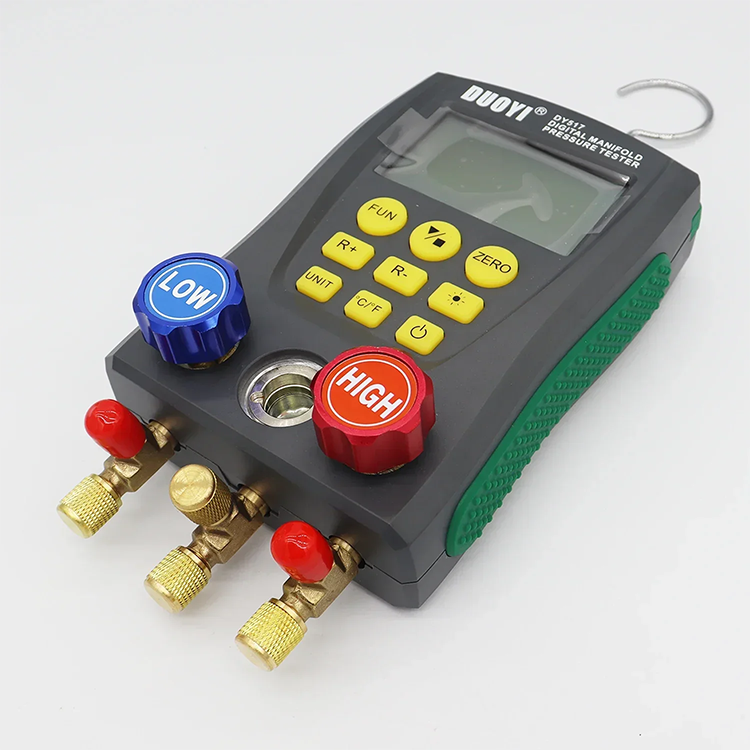

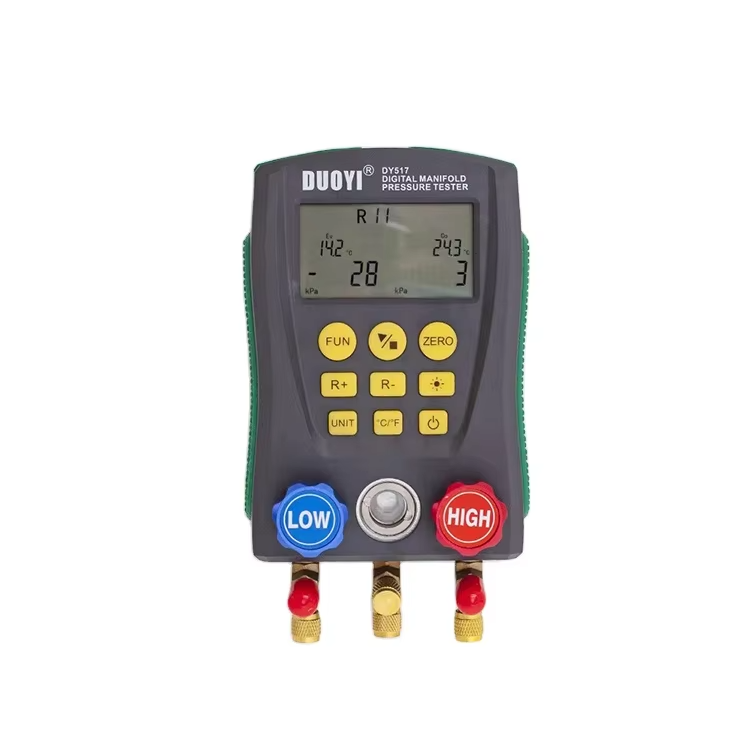

The Duoyi DY517 Digital Manifold Gauge is an intelligent, multi-functional electronic diagnostic tool built for the installation, testing, and maintenance of refrigeration and HVAC equipment. It consolidates multiple traditional analog tools into a single unit, making it an excellent choice for servicing automotive air conditioning, residential HVAC, and commercial cold storage systems.
Dual-Pressure & Dual-Temperature Processing: Measures high-side and low-side pressures simultaneously along with live dual-temperature inputs.
Automatic Superheat & Subcooling Calculations: It automatically cross-references real-time pressure-temperature readouts against its internal database to provide instant superheat and subcooling data, eliminating manual calculation errors.
Comprehensive Refrigerant Database: Pre-programmed with 89 standard NIST refrigerant profiles (including R134a, R22, R410A, and R1234yf) for automatic saturation and evaporation temperature readings.
Vacuum & Leakage Testing: Features a relative vacuum tracking mode and an automated pressure-drop/leak logging test that records leak speed over a designated timeframe.
Heavy-Duty Construction: Built with high-strength engineering plastics and wrapped in a flexible, non-slip silicone bumper for industrial drop protection and a solid grip.
Feature / Metric Specification Range & Details Pressure Test Range 0 to 6000 kPa (0 bar to 60 bar / 0 PSI to 870 PSI) Pressure Accuracy ±0.5% (Full Scale) + 5 dgt Pressure Resolution 1 kPa /0.01 bar/0.1 PSI Pressure Overload Limit 10000 kPa (10 MPa / 100 bar) Vacuum Test Range -101 kPa to 0 kPa (Relative Vacuum) Temperature Test Range -40°C to 150°C (-40°F to 302°F) Temperature Accuracy ±0.5°C+ 2 dgt /±0.9°F + 2 dgt Selectable Units Pressure: kPa, MPa, bar, PSI, inHg
Temperature: °C, °F
Interface / Ports 1/4 -inch SAE standard 3-port, 2-way brass valve block Display Large-format LCD with high-contrast green backlight Power Supply 4 x 1.5V AA (LR6) batteries Dimensions & Weight 170 x 110 x 50 mm | Approx. 950 grams Note on Model Variants:
DY517: Standard package typically includes the manifold gauge block and the user manual. Temperature clamps and charging hoses are sold separately or as optional add-ons.
