Intelligent Auto-Scanning: No manual switching required; the meter automatically identifies voltage, resistance, and continuity for faster troubleshooting.
Safety First with NCV: Detect live AC voltage safely without making physical contact, accompanied by an audible buzzer and light warning.
True RMS Accuracy: Features a 6000-count resolution for precise measurements on complex electronic circuits.
Ruggedized Protection: Encased in a soft silicone anti-drop shell that provides a comfortable grip and protection against minor impacts.
Essential DIY Tool: Includes helpful extras like a data hold button, automatic shutdown to save battery, and a built-in work light.

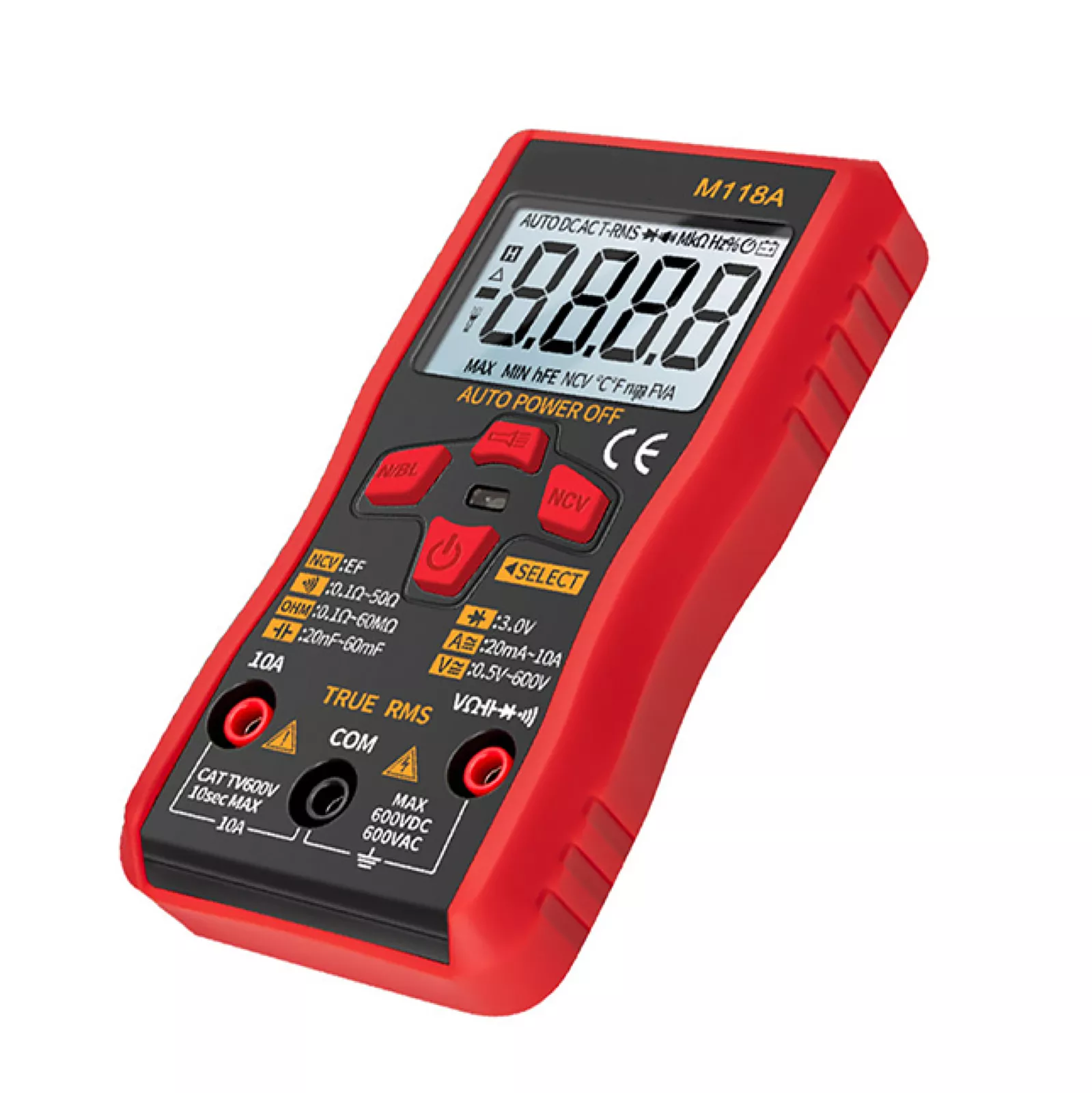

Aneng M118a Mini Multimeter is a pocket-sized, intelligent digital multimeter known for its "Auto-Scan" capability. It is specifically designed for users who want a hassle-free experience—the device automatically recognizes whether you are measuring Voltage, Resistance, or Continuity without needing to turn a physical dial.
Features:
| Brand | ANENG | Model | M118A |
| Resistance | Yes | Display | 6000 counts |
| capacitance | Yes | continuity test | Yes |
| NCV | Yes | Zero line/Fire line test | Yes |
| All unit symbol | Yes | Backlight manual | Yes |
| true RMS | Yes | automatic shutdown | Yes |
| Flashlight lighting | Yes | diode | Yes |
| Sampling rate | Yes | power supply | 2 X 1.5V AAA |
| Range | Accuracy | |
| DC/AC voltage | 6V/ 60V/ 600V | ±(0.5%+3) |
| Resistance | 600Ω | ±(0.8%+5) |
| 6kΩ/60kΩ/600kΩ/6MΩ | ±(0.8%+3) | |
| 60MΩ | ± (2.5%+3) | |
| Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF | ±(3.5%+20) |
| 60mF | ±(5%+3) | |
| AC / DC current | 6A/10A | ±(2%+30) |
