UPA USB Programmer

In Stock

UGX2,000,000 UGX175,000 -UGX1,825,000

Full EEPROM Support: Read, write, and erase data from 24xxx, 25xxx, and 93xxx series EEPROMs.
Specialized MCU Programming: Supports a massive range of Motorola (NXP/Freescale), Atmel, and ST microcontrollers.
Odometer & Airbag Specialist: Widely used for mileage correction and resetting "Crash Data" in airbag modules after an accident.
ZIF & SOIC Sockets: The main unit features a 40-pin ZIF socket for DIP chips and a 16-pin SOIC socket for smaller surface-mount chips, making it easy to test without soldering.
In-Circuit Programming (ISP): Includes a 10-pin ISP connector that allows you to program chips directly on the PCB using the included ribbon cable and pogo-pin adapters.

Quantity:

BUY NOW

ORDER ON WHATSAPP

Description

The UPA USB Programmer is a world-renowned tool for automotive electronics, specialized in reading and writing a vast range of EEPROMs, Microcontrollers (MCUs), and Serial Flash memory. It is a staple in any professional workshop for tasks such as airbag reset, odometer correction, and ECU data recovery.

This "Full Set" version includes a comprehensive array of adapters, allowing you to interface with chips from Motorola, Atmel, ST, and more, without the need for manual wiring or complex soldering.

Key Features of UPA USB Programmer

Extensive Chip Support: Compatible with hundreds of MCUs and EEPROMs, including Motorola HC05, HC08, HC11, HC12, HCS12, Atmel AVR, and Microchip PICs.

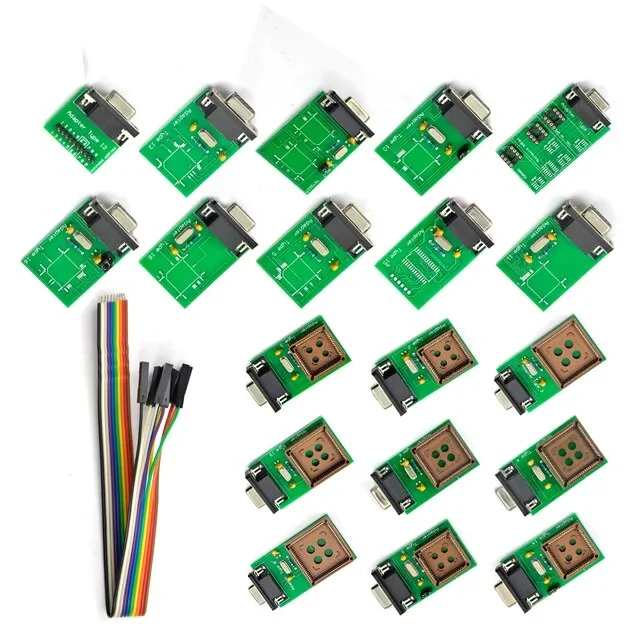

No-Soldering Solution: The full set includes 20+ specialized adapters (PLCC, SOIC, etc.) that fit directly over the chips, making the process faster and safer for the hardware.
USB Powered: No external power supply is needed for most operations; the tool draws stable power directly from your PC’s USB port.
Built-in Safety: Includes over-current and over-voltage protection on all 6 I/O pins to prevent damage to expensive automotive modules.
Logic & Measurement Tools: Includes a single-channel oscilloscope (50kHz), voltage meter, and signal generator for advanced circuit troubleshooting.

Technical Specifications of UPA USB Programmer

Feature	Details
Connectivity	USB 2.0 / USB 1.1
Supported Protocols	I2C, SPI, Microwire, UART
Hardware Version	V2014 (V1.3 Software)
Operating Voltage	3.3V and 5V (Adjustable)
Package Includes	UPA Main Unit, 20 Adapters, USB Cable, Software CD

Supported Motorola (Freescale/NXP) Chips

The UPA USB is famous for its robust support of the Motorola HC series, which are common in older automotive ECUs, immobilizers, and dashboards.

HC05 Series: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05X16, MC68HC05X32.
HC08 Series: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC908AZ60A.
HC11 Series: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11F1, MC68HC11K4, MC68HC11KA4, MC68HC11KS2, MC68HC11P2, MC68HC11PH8.
HC12 Series: MC68HC912B32, MC68HC912BE32, MC68HC912D60(A), MC68HC912DG128(A), MC68HC912DC128A.
HCS12 Series: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256.

Supported Atmel (Microchip) Chips

The UPA USB handles Atmel processors commonly found in smaller modules and consumer electronics.

8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253.
AVR 8-Bit RISC: * ATmega Series: ATmega8, ATmega16, ATmega64, ATmega103, ATmega128, ATmega161, ATmega162, ATmega163, ATmega8515, ATmega8535.
- ATtiny Series: ATtiny12, ATtiny15, ATtiny2313.
- AT90S Series: AT90S1200, AT90S2313, AT90S4433, AT90S8515, AT90S8535.

Key Information for Customers

Note: Many of these chips require the specific adapters included in the "Full Set" to be read correctly. For example, the HC11 and HC05 chips often need the PLCC52 or QFP64 adapters to interface without soldering.
