Accurate Battery Diagnostics – Tests 12V lead-acid batteries for voltage, cold cranking amps (CCA), internal resistance, and state of health.
Wide Testing Range – Supports multiple battery standards (CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB).
Clear LCD Display – Provides fast, easy-to-read test results with detailed battery condition analysis.
User-Friendly Design – Compact, handheld tester with intuitive controls for garages, workshops, and DIY users.
Versatile Application – Ideal for cars, motorcycles, trucks, and other vehicles using 12V starting batteries.

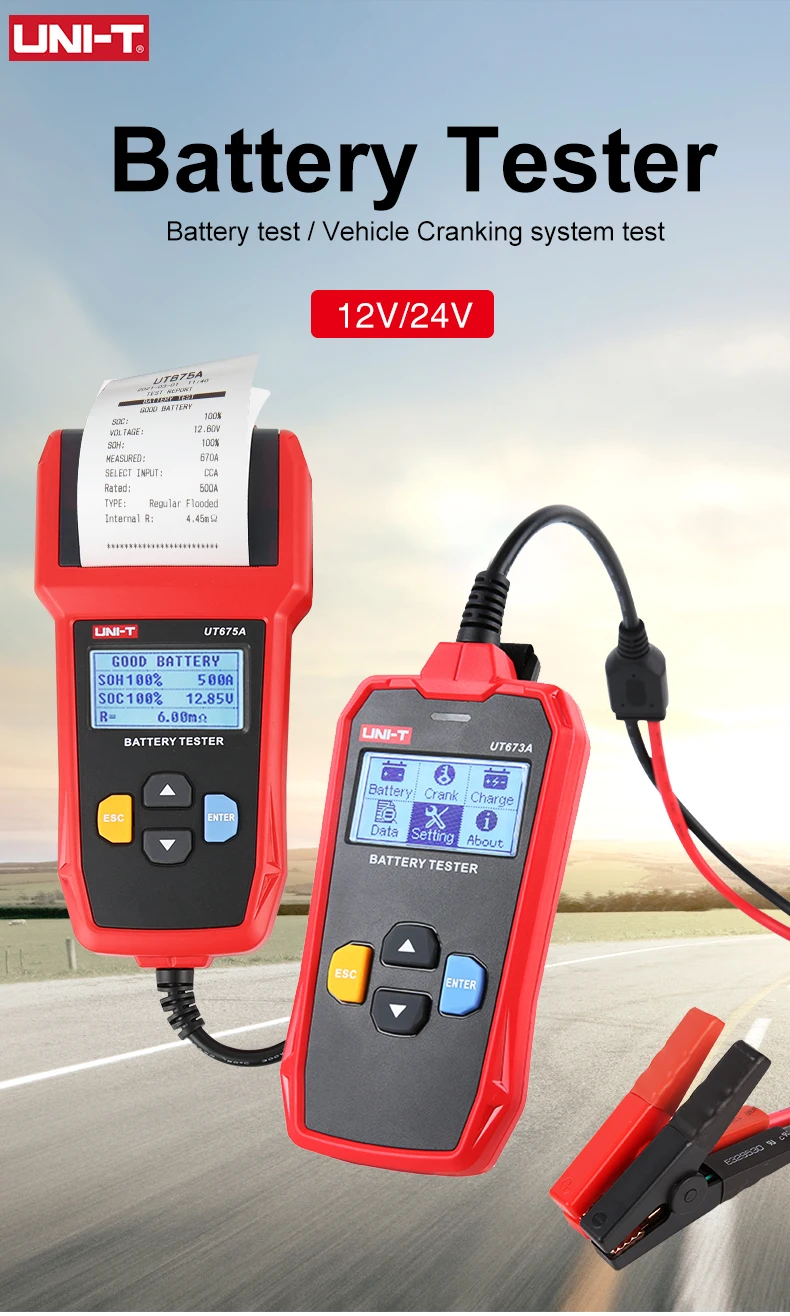

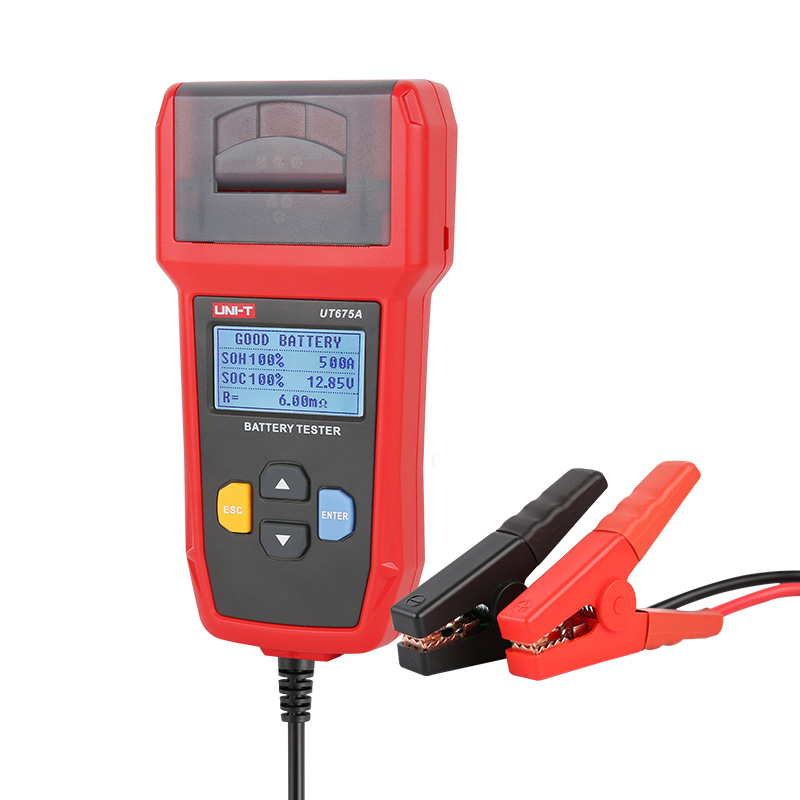

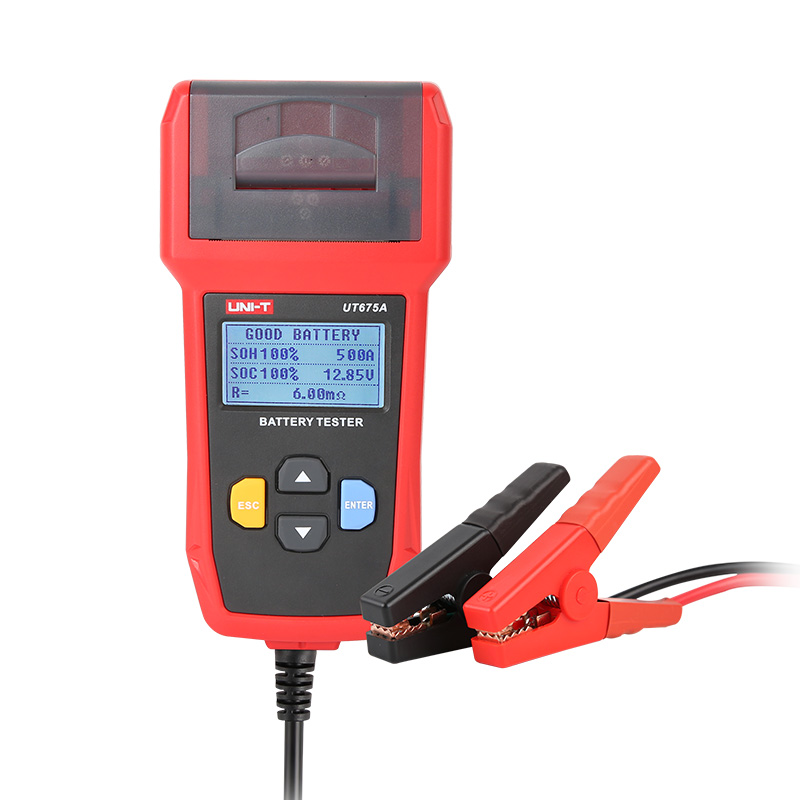

Unit UT675A Battery Tester is a flagship-grade battery diagnostic tool designed for high-volume workshops, fleet managers, and professional mechanics in Uganda. While the UT673A provides the core testing functions, the UT675A adds a built-in thermal printer and USB data transfer, allowing you to provide instant, physical proof of battery health to your customers.

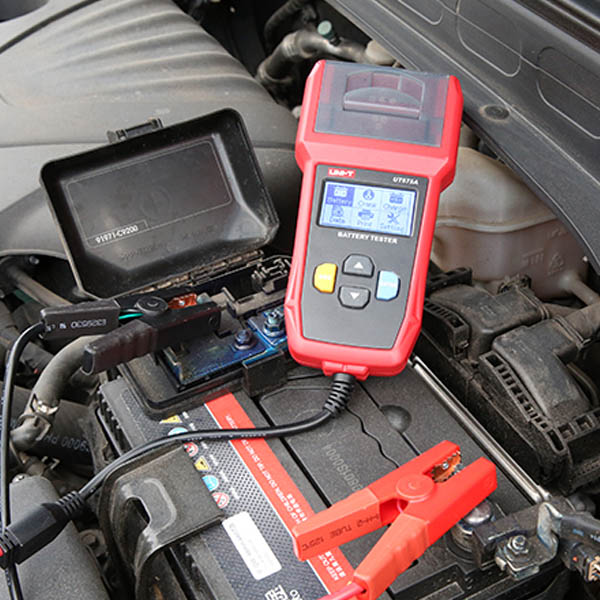

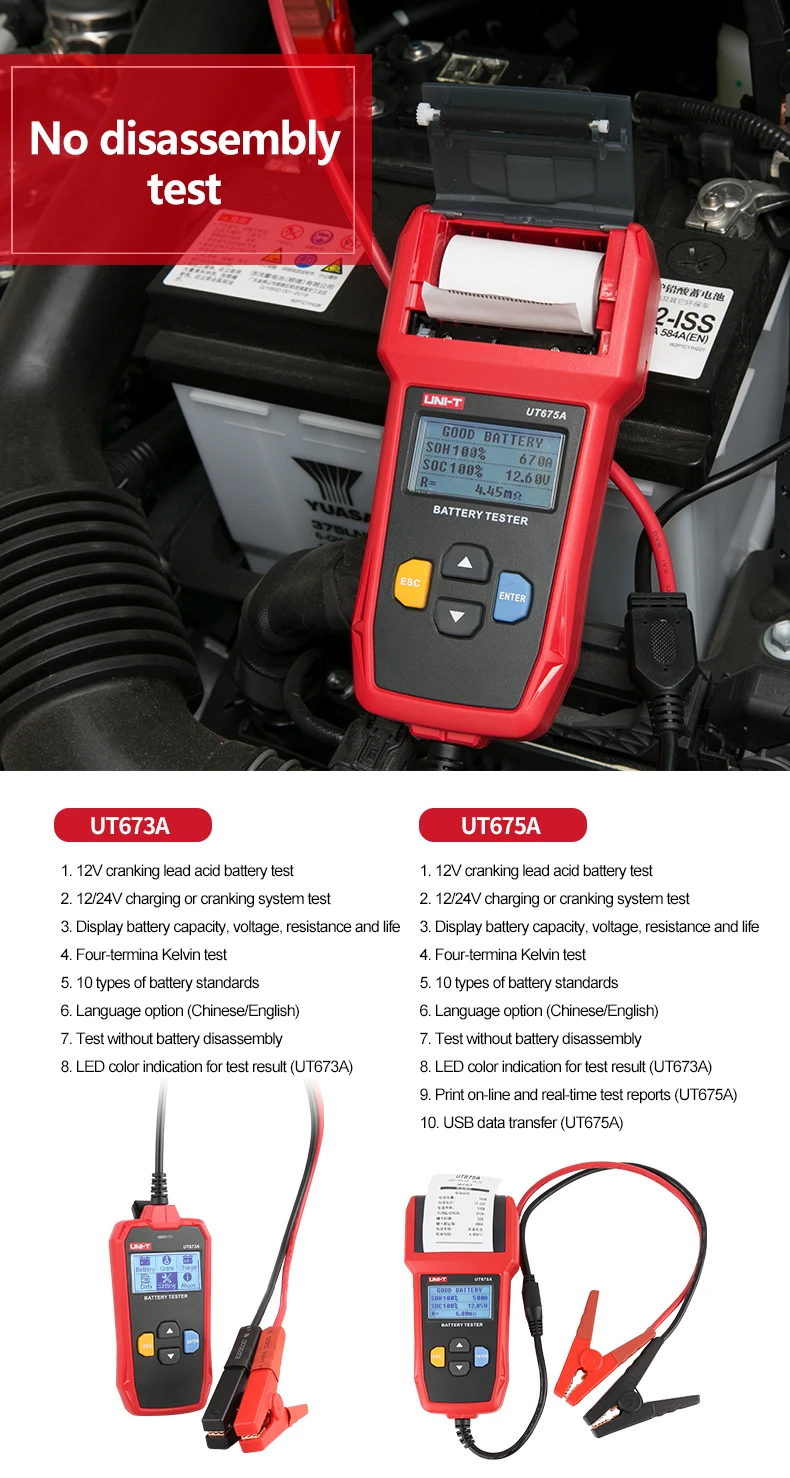

This tester uses advanced conductivity testing technology to evaluate the battery's state of health (SOH) and state of charge (SOC) without needing to remove the battery from the vehicle.

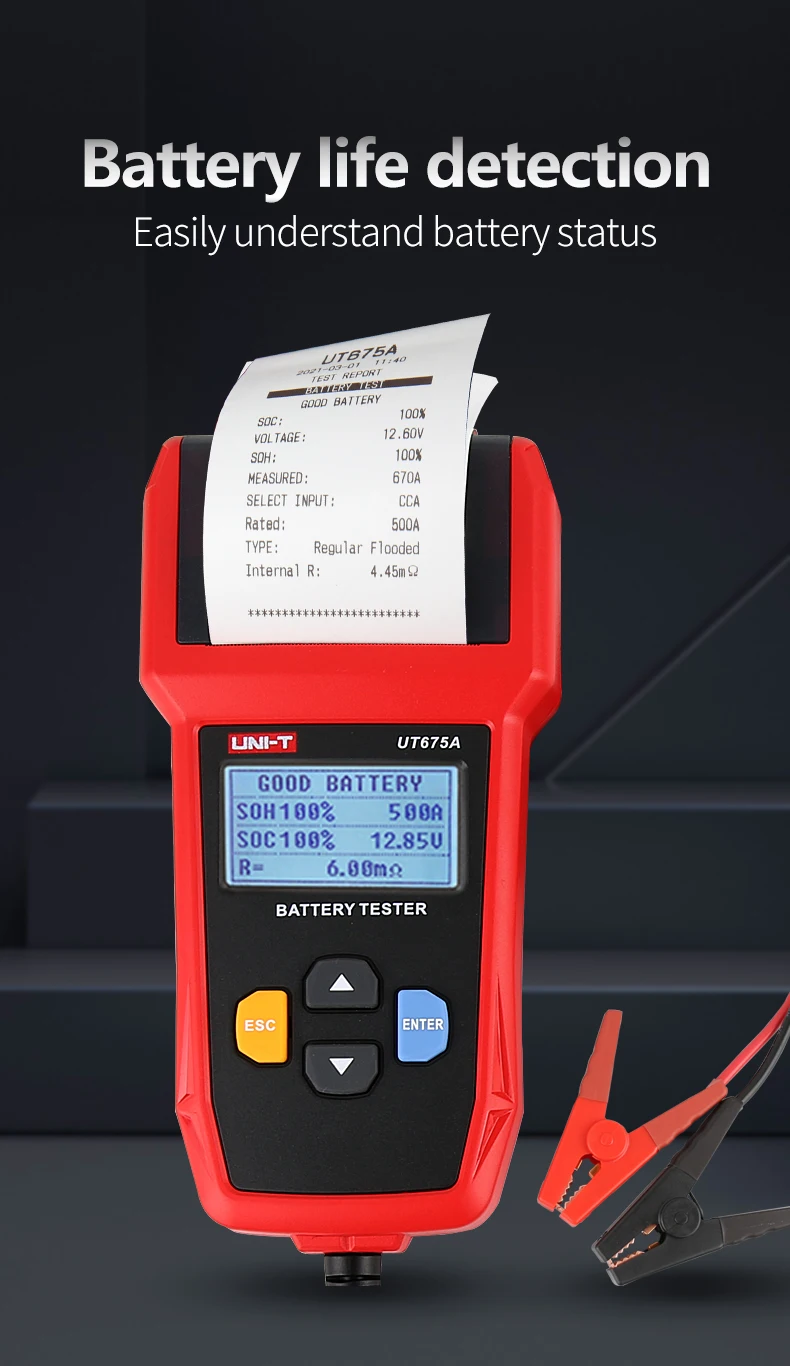

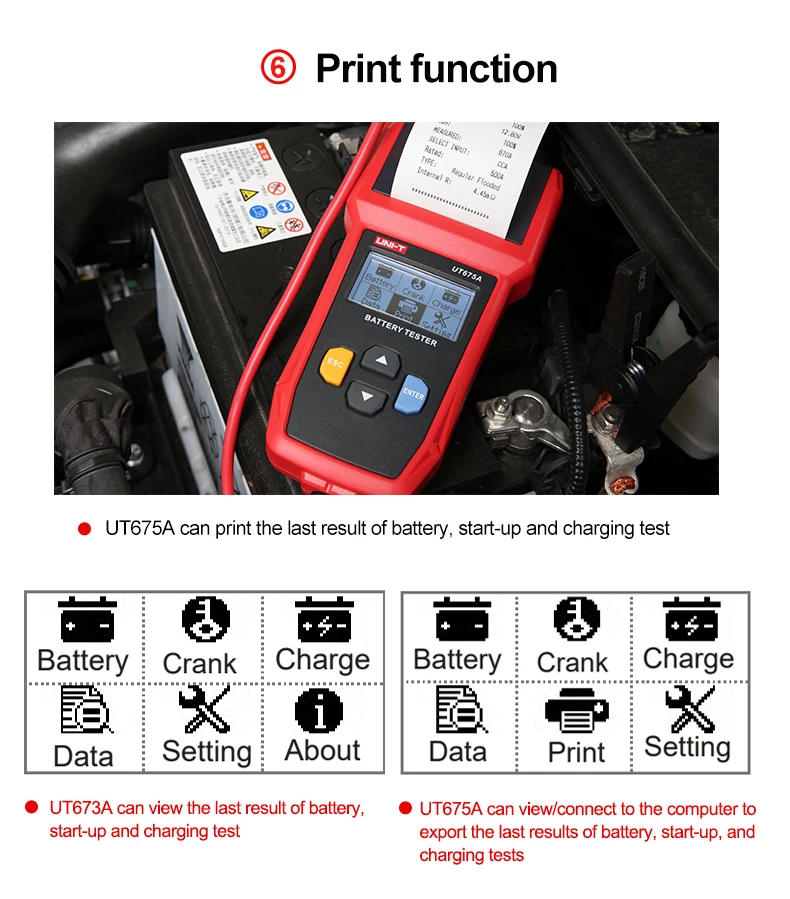

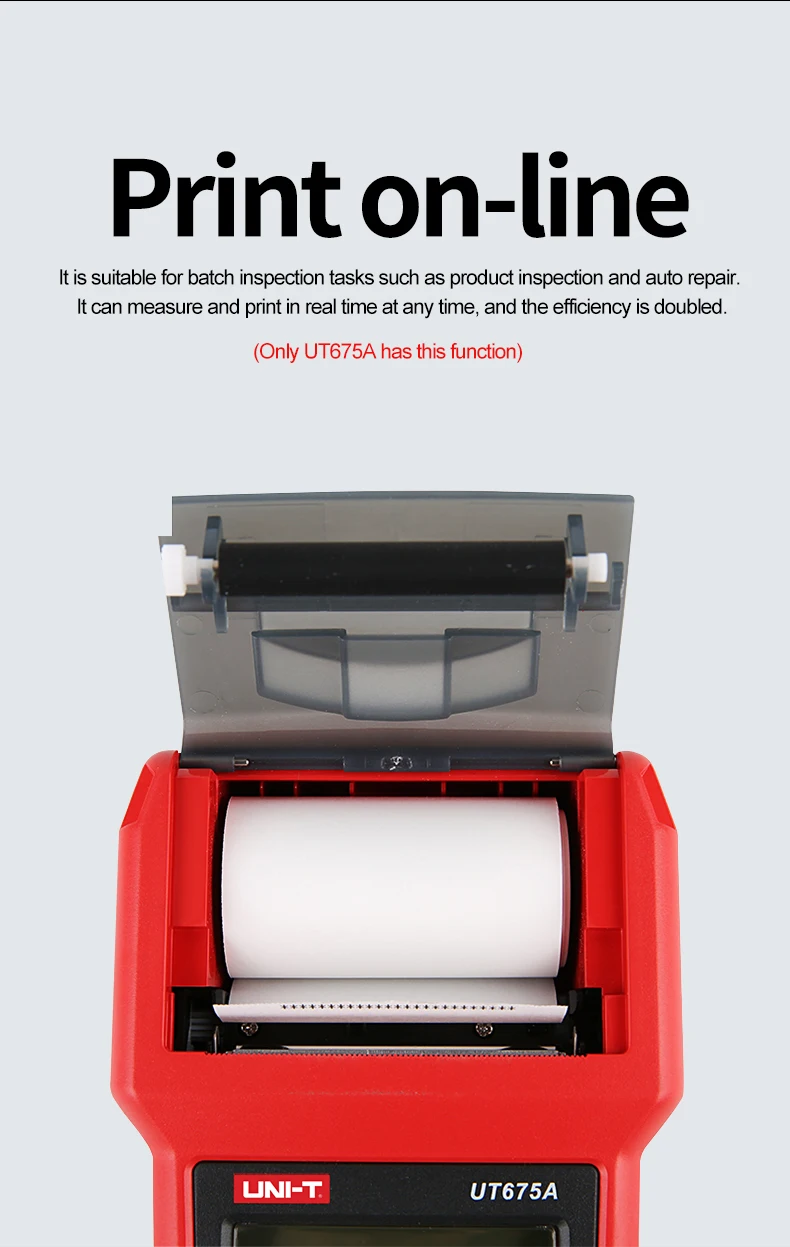

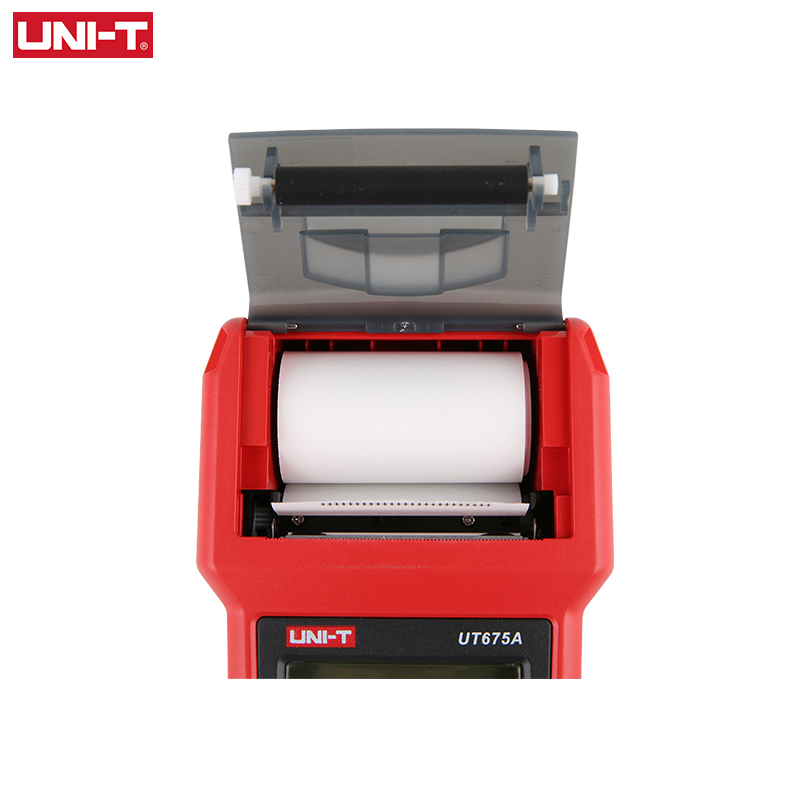

Built-in Thermal Printer: Generate real-time, physical test reports immediately after a diagnostic. This is invaluable for customer transparency and workshop record-keeping.
12V/24V System Testing: Supports both 12V and 24V systems, making it suitable for motorcycles, cars, and heavy-duty trucks.

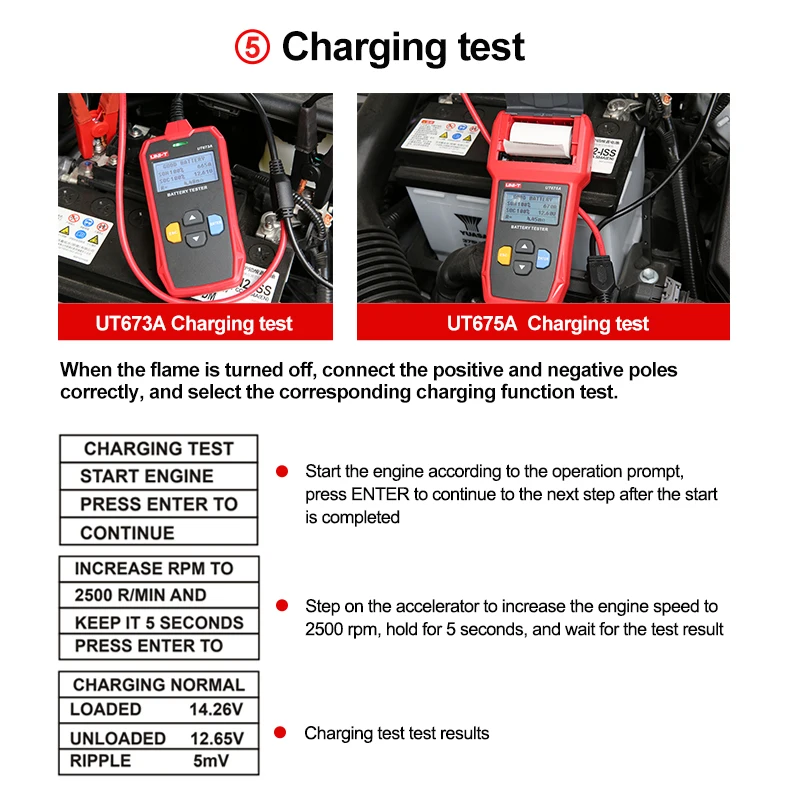

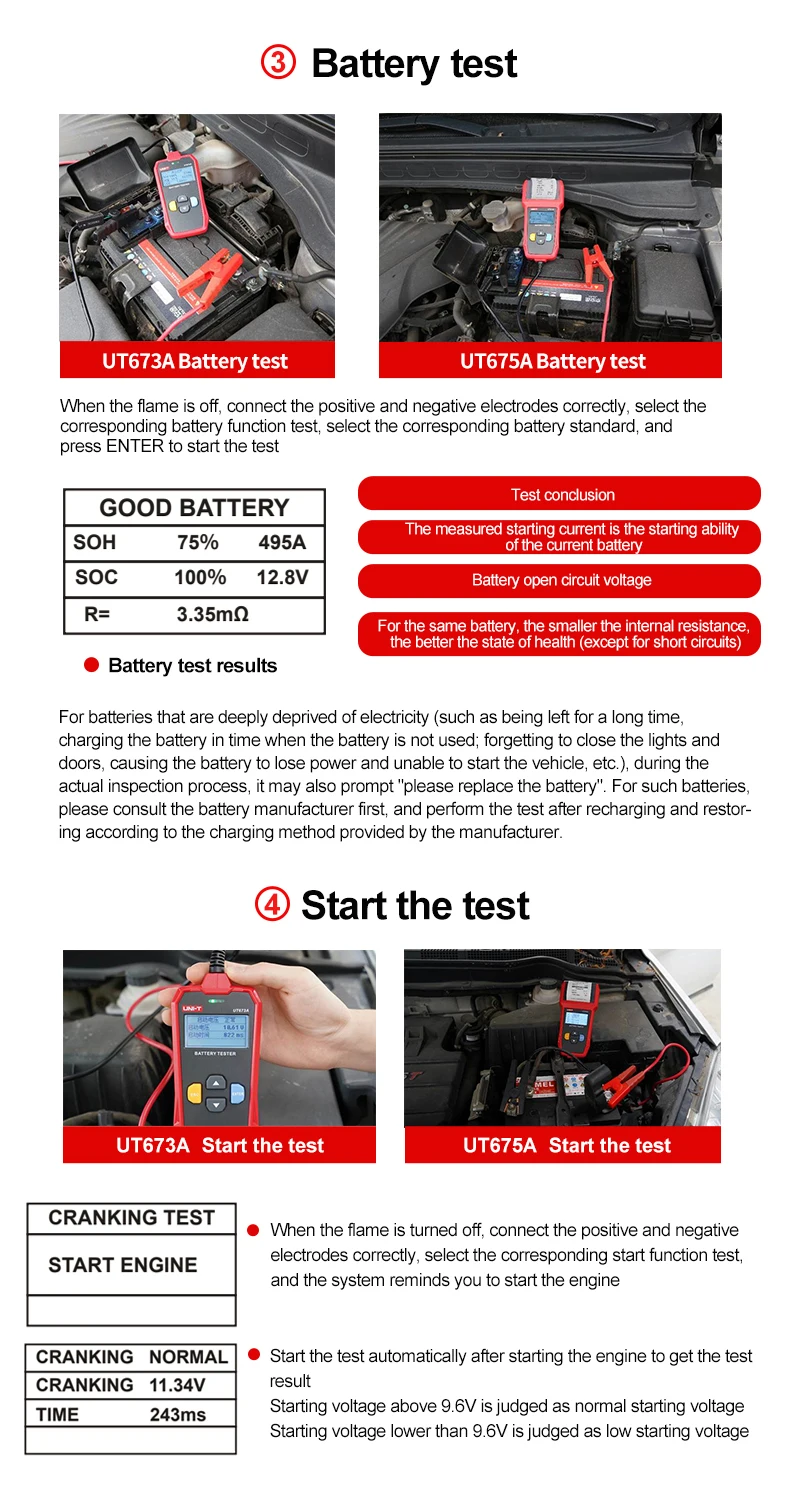

Comprehensive Diagnostics: Performs Battery Health Tests, Cranking System Tests (Starter Motor), and Charging System Tests (Alternator).
Four-Terminal Kelvin Test: High-precision testing method that eliminates wire resistance interference for more accurate readings.

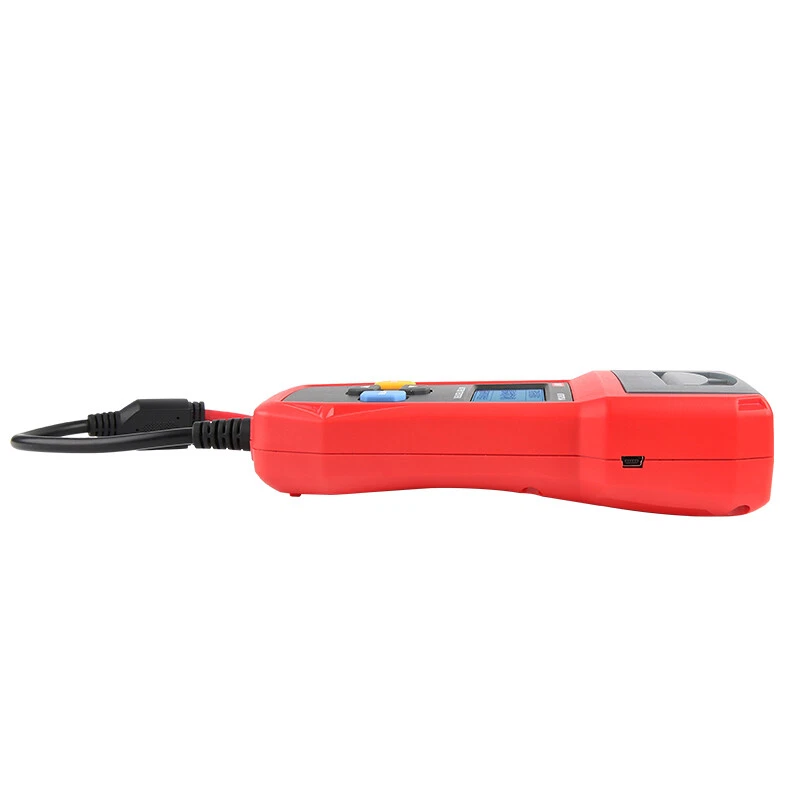

USB Data Transfer: Connect the device to a PC to export and analyze long-term diagnostic data.
Wide Battery Compatibility: Supports 10 major standards, including CCA, DIN, JIS, EN, and SAE, and works with Lead-Acid, AGM, GEL, and EFB batteries.

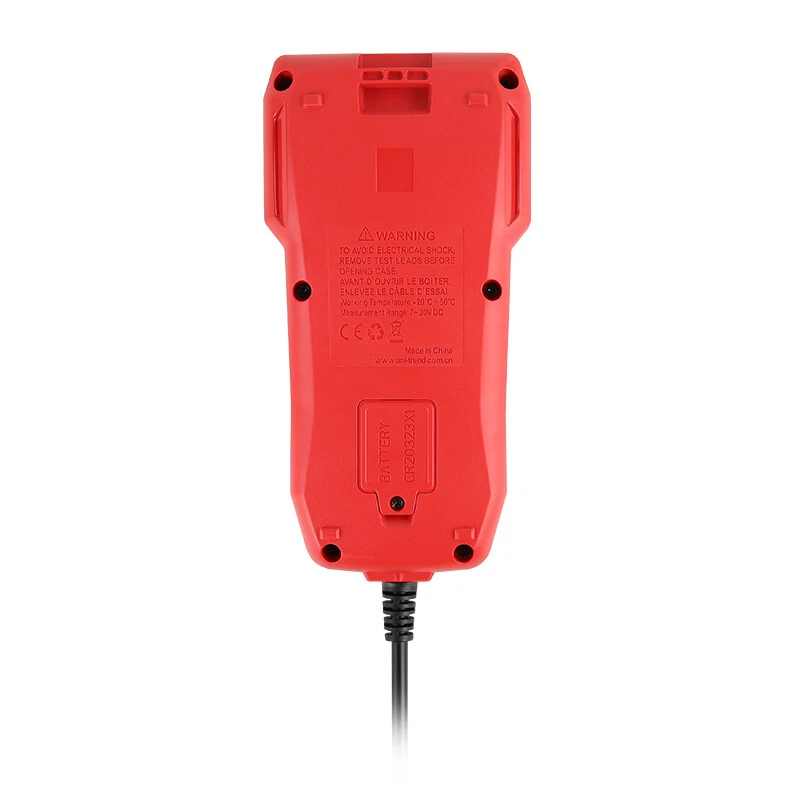

No Internal Battery Required: Powers up automatically when connected to the vehicle's battery terminals.
|

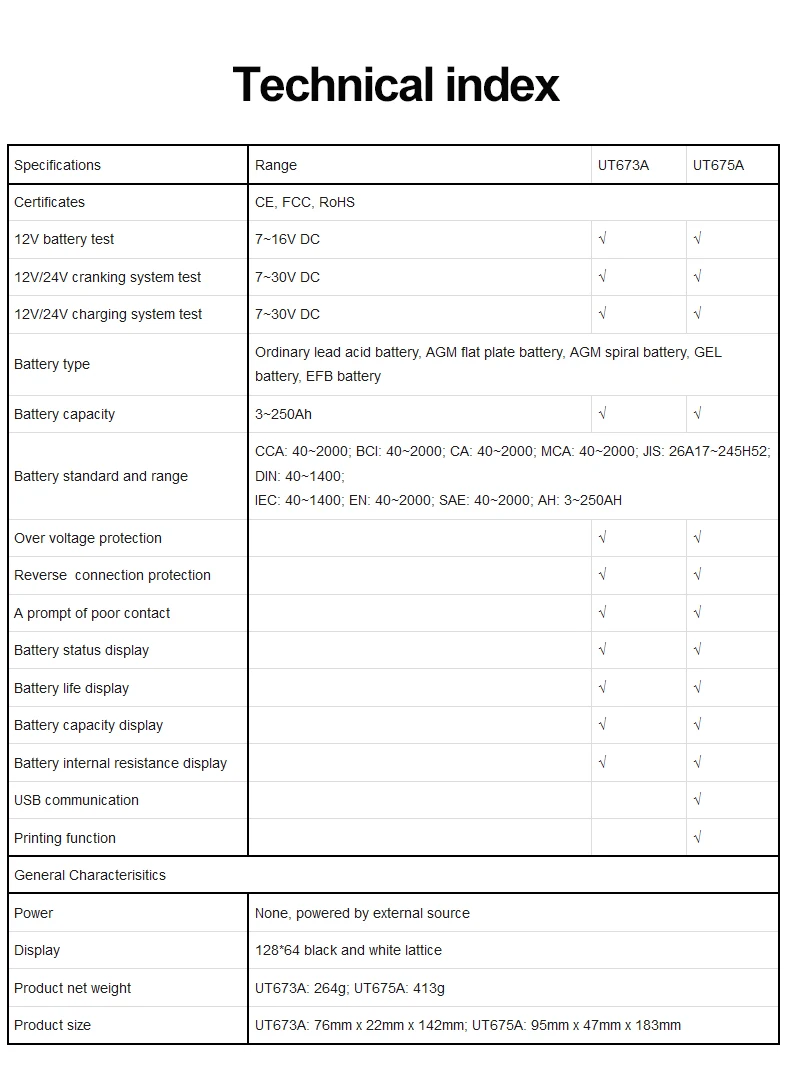

Specifications
|
Range
|
UT673A
|
|
Certificates
|
CE, FCC, RoHS
|
|
|
12V battery test
|
7~16V DC
|
√
|
|
12V/24V cranking system test
|
7~30V DC
|
√
|
|
12V/24V charging system test
|
7~30V DC
|
√
|
|
Battery type
|
Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery
|
|
|
Battery capacity
|
3~250Ah
|
√
|
|

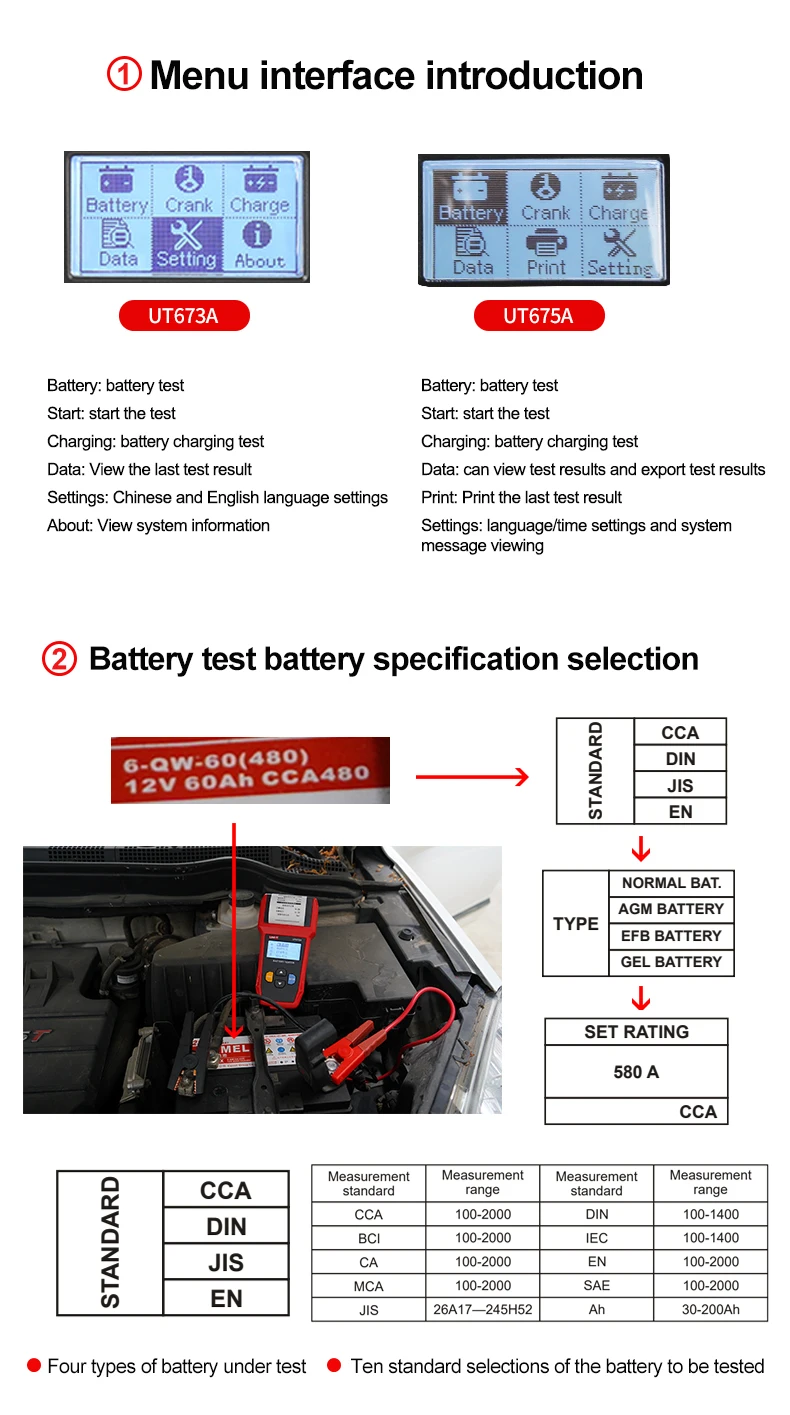

Battery standard and range
|
CCA: 40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN: 40~1400;
IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH |
|
|
Over voltage protection
|
√
|
|
|
Reverse connection protection
|
√
|
|
|
A prompt of poor contact
|
√
|
|
|
Battery status display
|
√
|
|
|
Battery life display
|
√
|
|
|
Battery capacity display
|
√
|
|
|
Battery internal resistance display
|
√
|
|
|
General Characteristics
|
||
|
Power
|
None, powered by external source
|
|
|
Display
|
128*64 black and white lattice
|
|
|
Product net weight
|
264g
|
|
|
Product size
|
76mm x 22mm x 142mm
|
|
