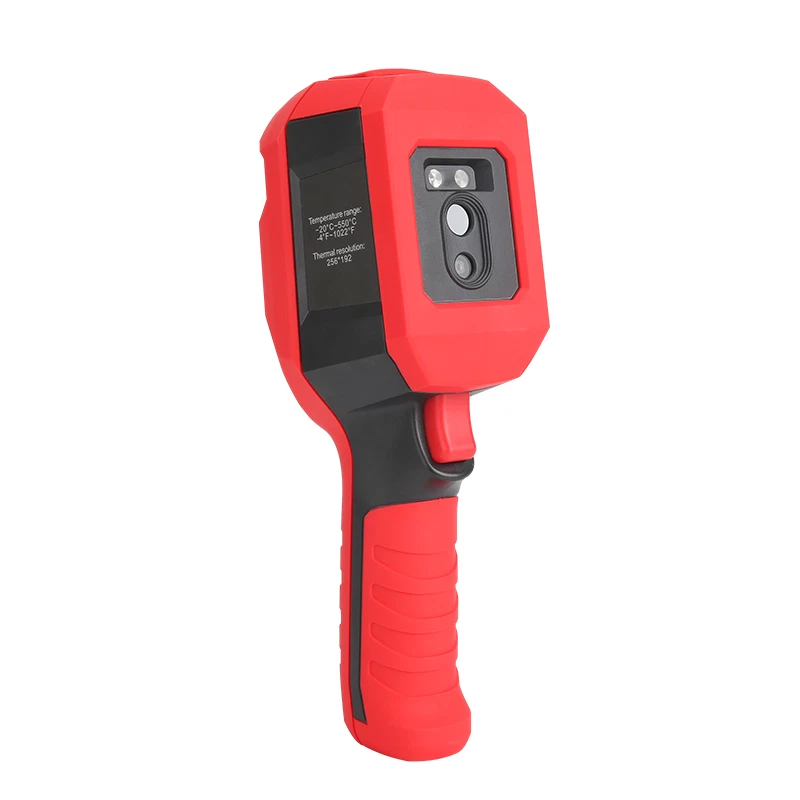

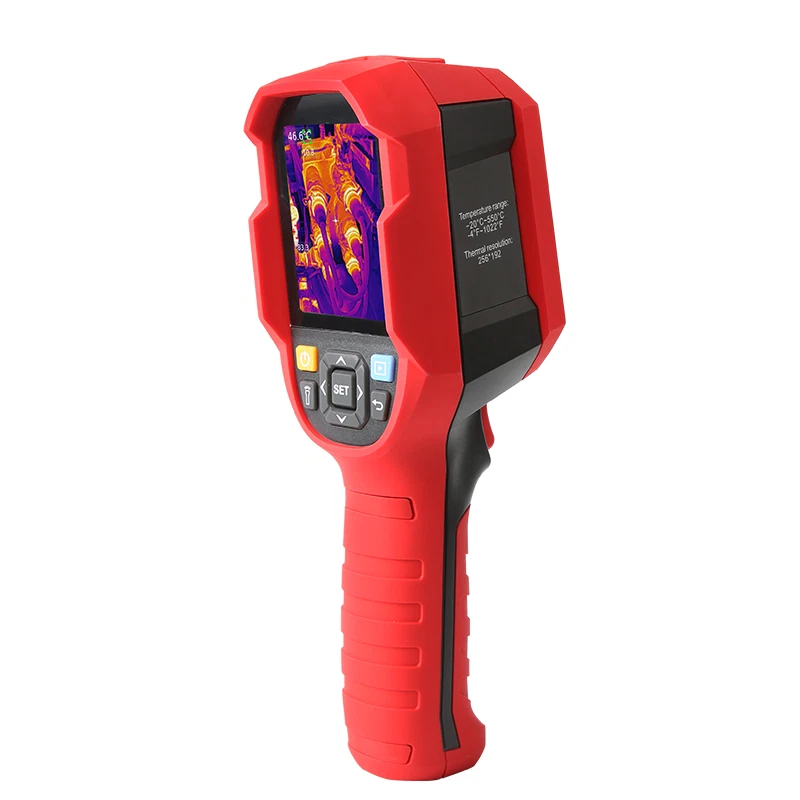

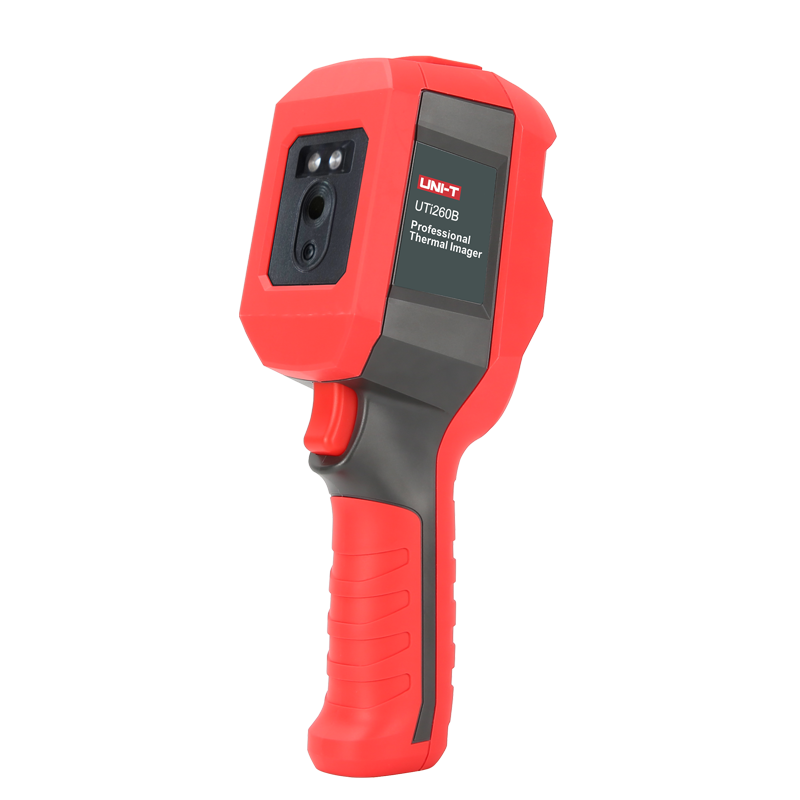

Uni-T UTi260B Infrared Thermal Imager is a heavy-duty, professional-grade thermal imaging camera designed for industrial inspection, HVAC maintenance, and electronics repair.1Featuring a high-resolution 256 x 192 thermal sensor, it provides crisp, detailed heat maps that allow you to identify overheating components, air leaks, or water damage instantly. Rugged, waterproof, and accurate, it is the go-to tool for technicians who need reliable thermography in the field.
Key Features & Capabilities of Uni-T UTi260B Infrared Thermal Imager
Durable and user-friendly

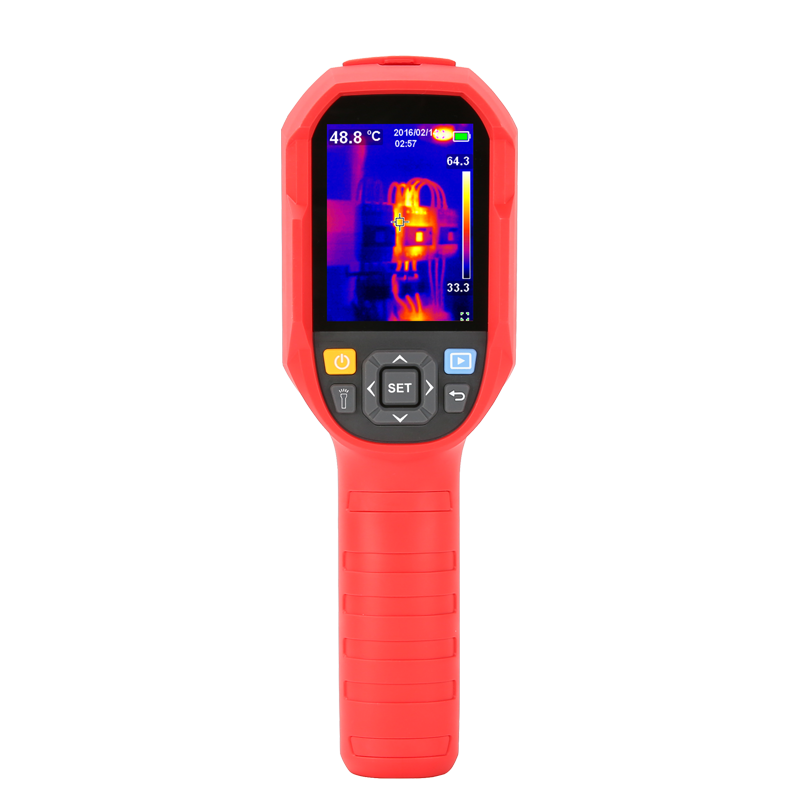

2.8” TFT display screen (320×240 Pixels)
IR resolution: 256×192
Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyser: 3 Points
Image capture
Image models: Thermal, Visual image, Fusion, PIP
Digital camera resolution: 640×480
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
LED flashlight
PC software analysis and real-time image projection)
Rechargeable Li-ion battery
1/4” Tripod Mounting Hole
IP65
2m drop proof
Technical Specifications of Uni-T UTi260B Infrared Thermal Imager
