AC Current Measurement – Measures up to 400A AC current with clamp-on design for safe, non-intrusive testing.
Multifunction Display – Provides AC/DC voltage, resistance, continuity, diode check, and frequency testing.
NCV Detection – Built-in non-contact voltage detection for quick safety checks.
User-Friendly Design – Large LCD screen, auto-range capability, and data hold function for ease of use.
Durable & Portable – Compact, robust housing with ergonomic grip, ideal for electricians and field technicians

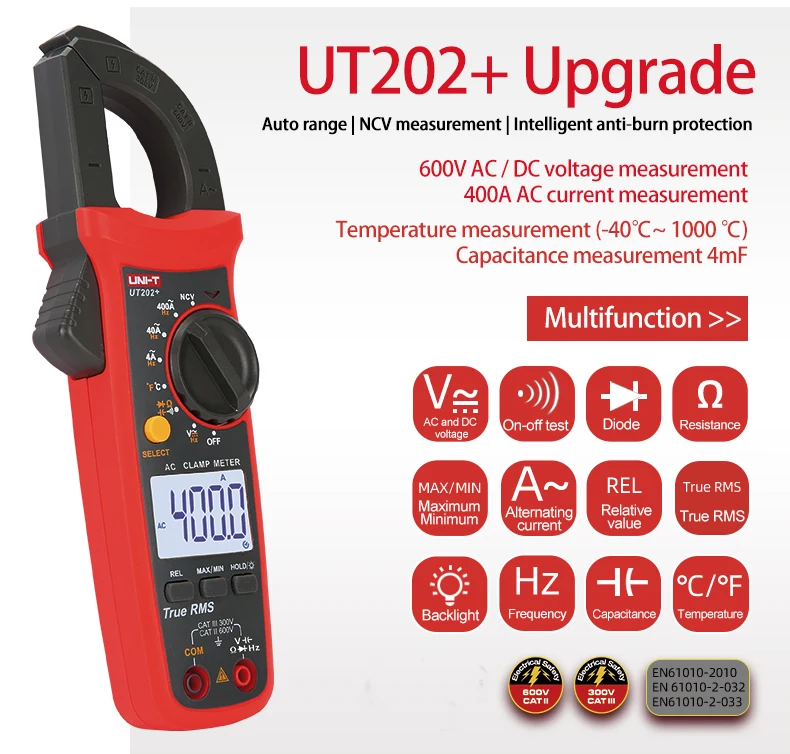

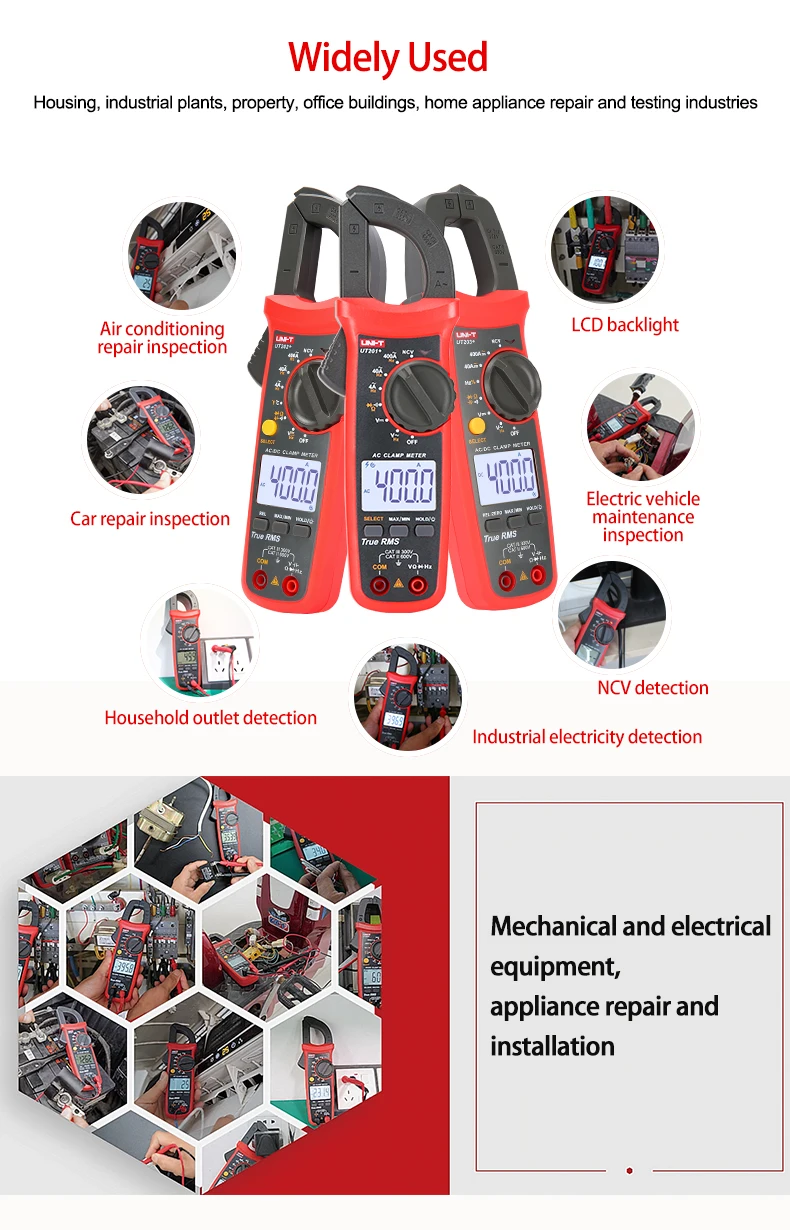

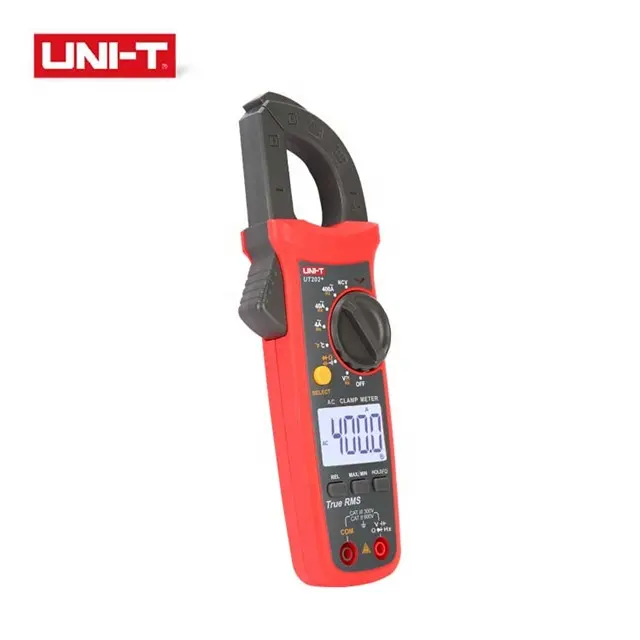

Uni-T UT202+ Clamp Meter is an upgraded version of the classic UT202, designed for electricians, HVAC technicians, and maintenance professionals in Uganda. This True RMS meter provides accurate measurements even in circuits with non-linear loads.
With its compact, ergonomic design and 400A AC current capacity, the UT202+ is the perfect "daily driver" for troubleshooting residential and commercial electrical systems, offering a high safety rating of CAT II 600V / CAT III 300V.
True RMS Measurement: Provides precise readings for AC voltage and current, even on distorted waveforms commonly found in modern electronics and motor drives.

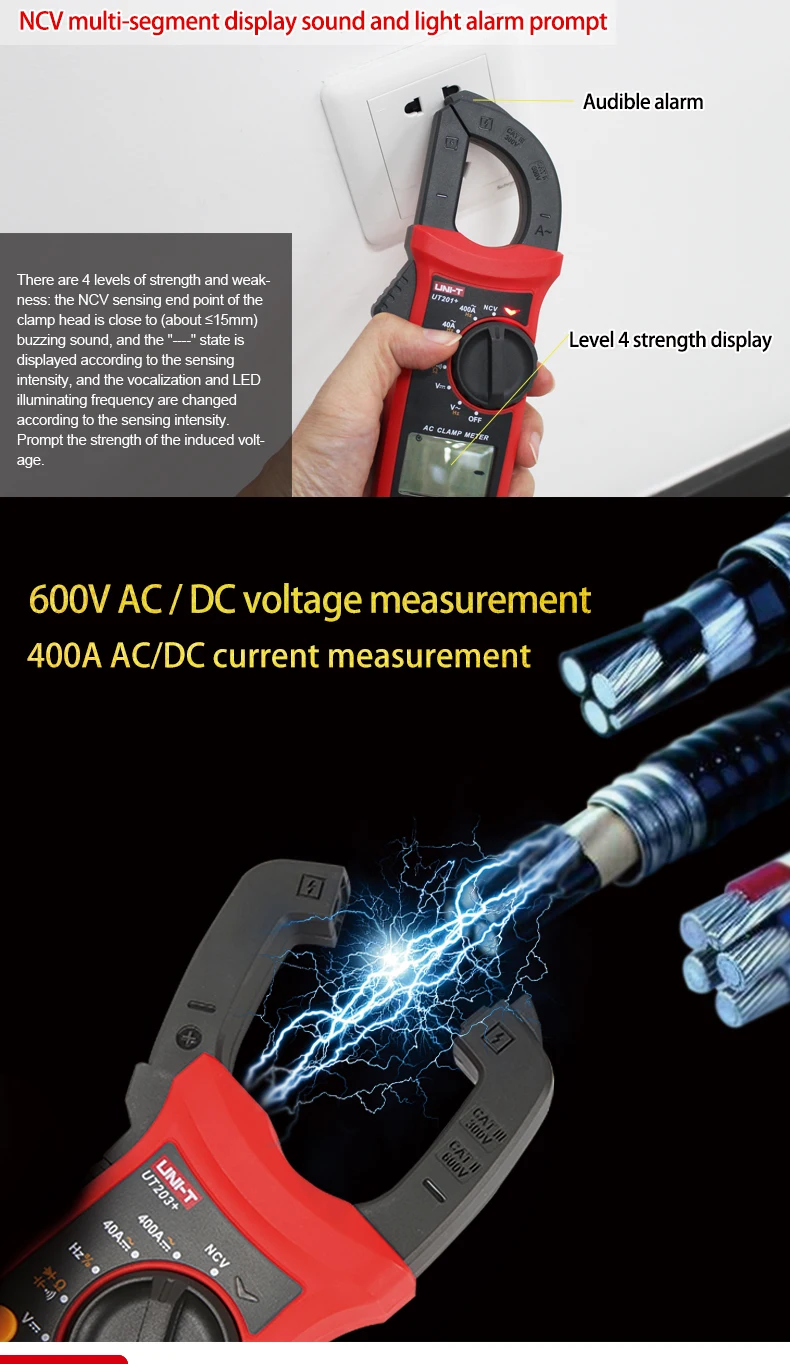

Non-Contact Voltage (NCV) Detection: Features a built-in sensor that allows you to detect live AC voltage without touching any exposed wires—a critical safety feature for any toolkit.
Large LCD with Backlight: The 4000-count display is easy to read in dark electrical panels or dimly lit ceiling voids.

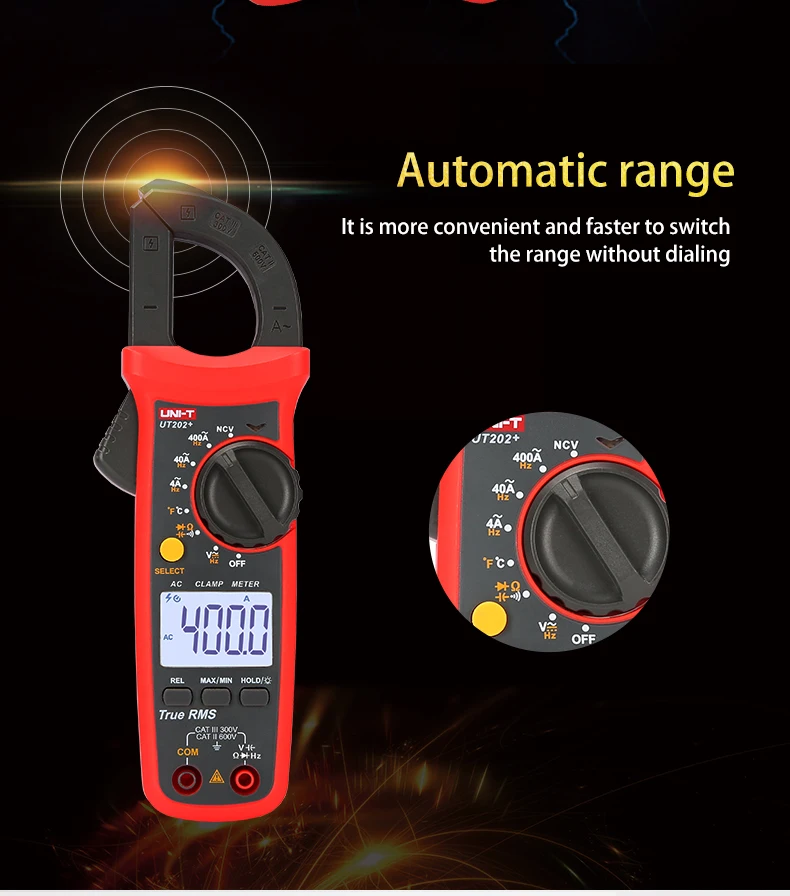

Auto-Ranging Convenience: The meter automatically selects the best range for your measurement, saving time and preventing errors.
Live/Neutral Wire Test: Quickly distinguish between live and neutral wires using a single test lead.
Data Hold & Max/Min: Freeze a reading on the screen or capture the highest/lowest values during a test session.
Automatic Power Off: Extends battery life by shutting down after a period of inactivity.
|

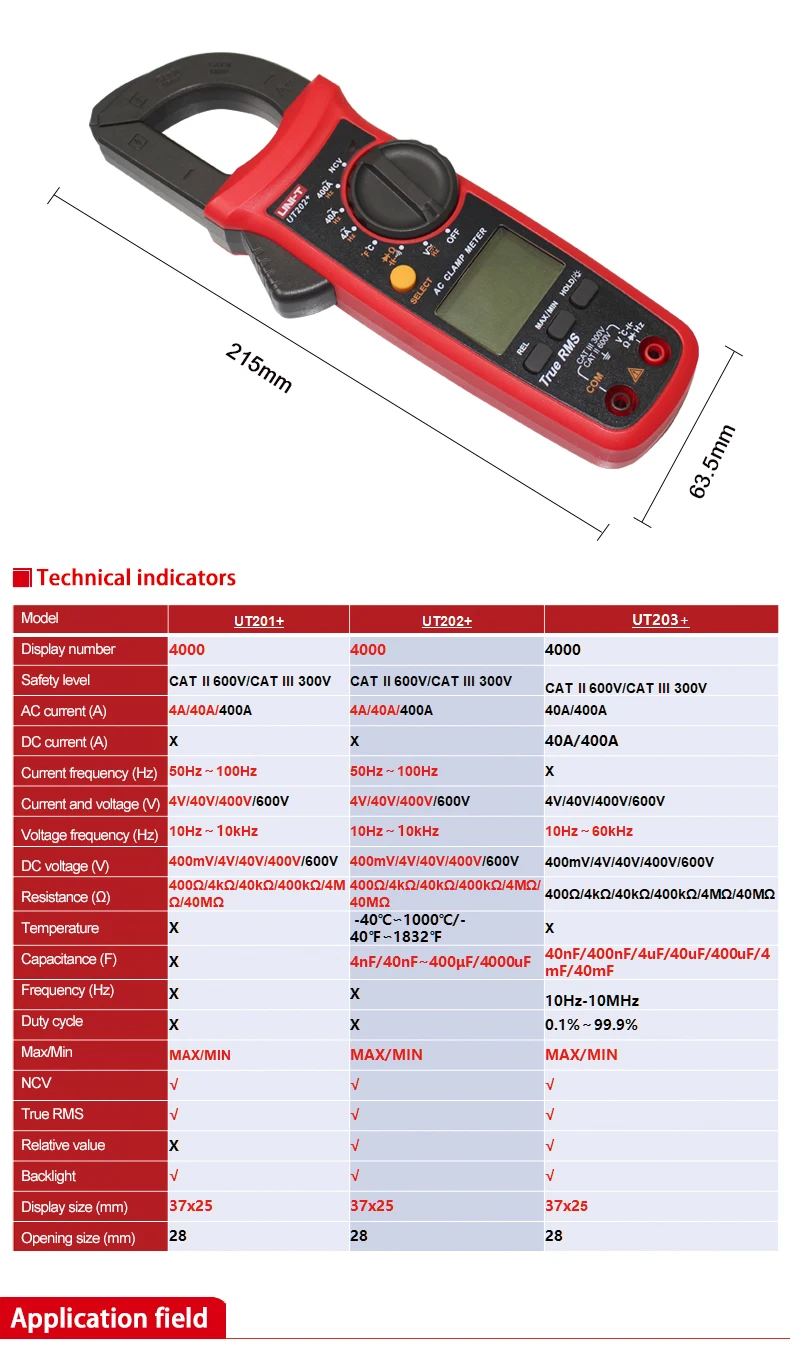

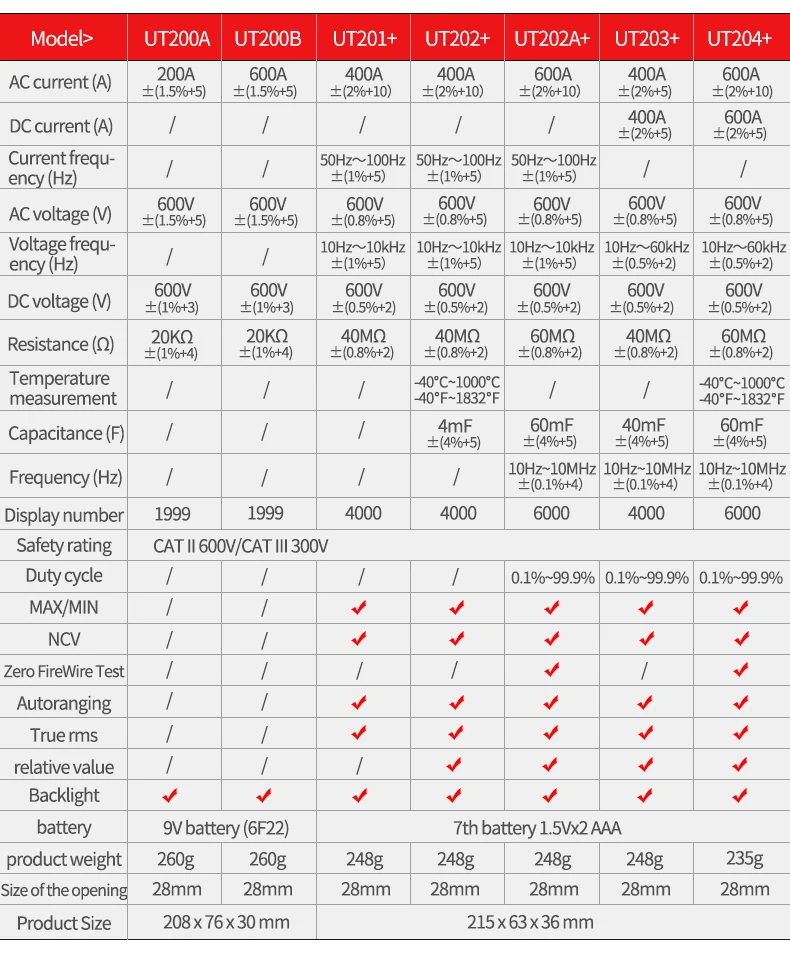

Specifications
|
Range
|
UT202+
|
|
AC current (A)
|
400A
|
±(2%+10)
|
|
600A
|
||
|
AC current frequency (Hz)
|
50Hz~100Hz
|
±(1%+5)
|
|
DC current (A)
|
400A
|
|
|
600A
|
||
|
AC voltage (V)
|
600V
|
±(0.8%+5)
|
|

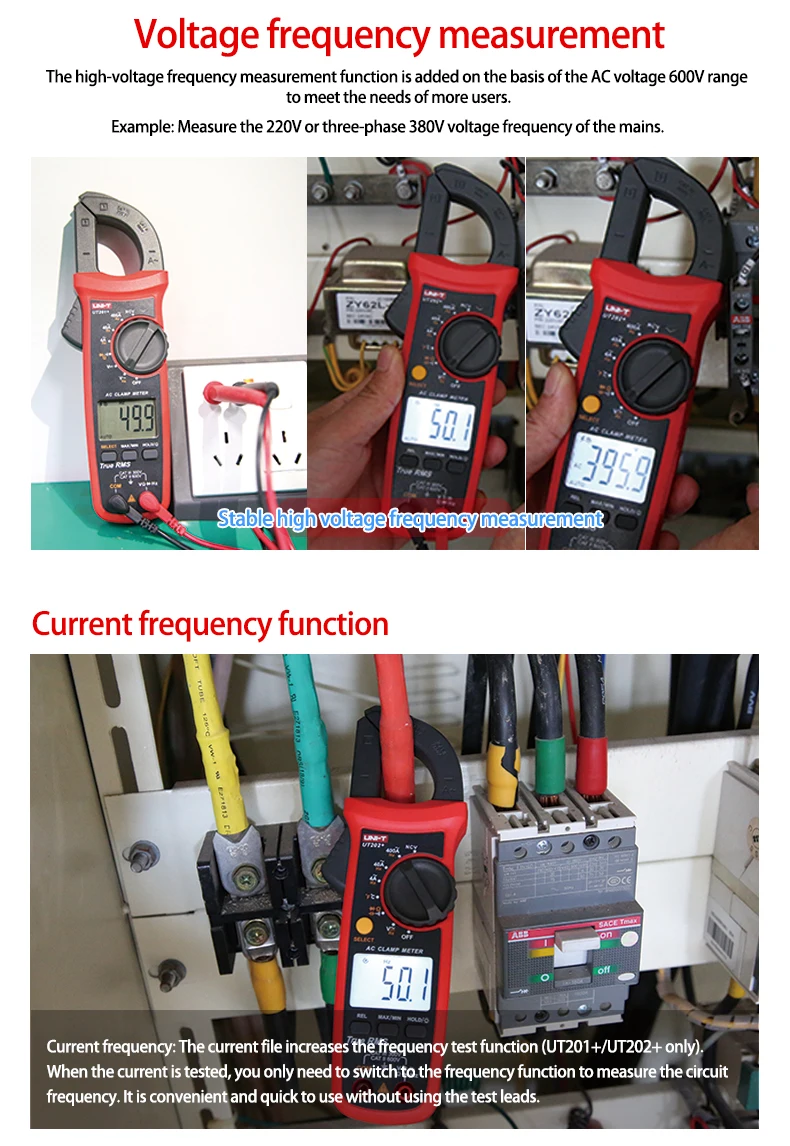

AC voltage frequency(Hz)
|
10Hz~10kHz
|
±(1%+5)
|
|
10Hz~60kHz
|
||
|
DC voltage (A)
|
600V
|
±(0.5%+2)
|
|
Resistance (Ω)
|
40MΩ
|
±(0.8%+2)
|
|
60MΩ
|
||
|
Capacitance (F)
|
4mF
|
±(4%+5)
|
|
40mF
|
||
|
60mF
|
||
|

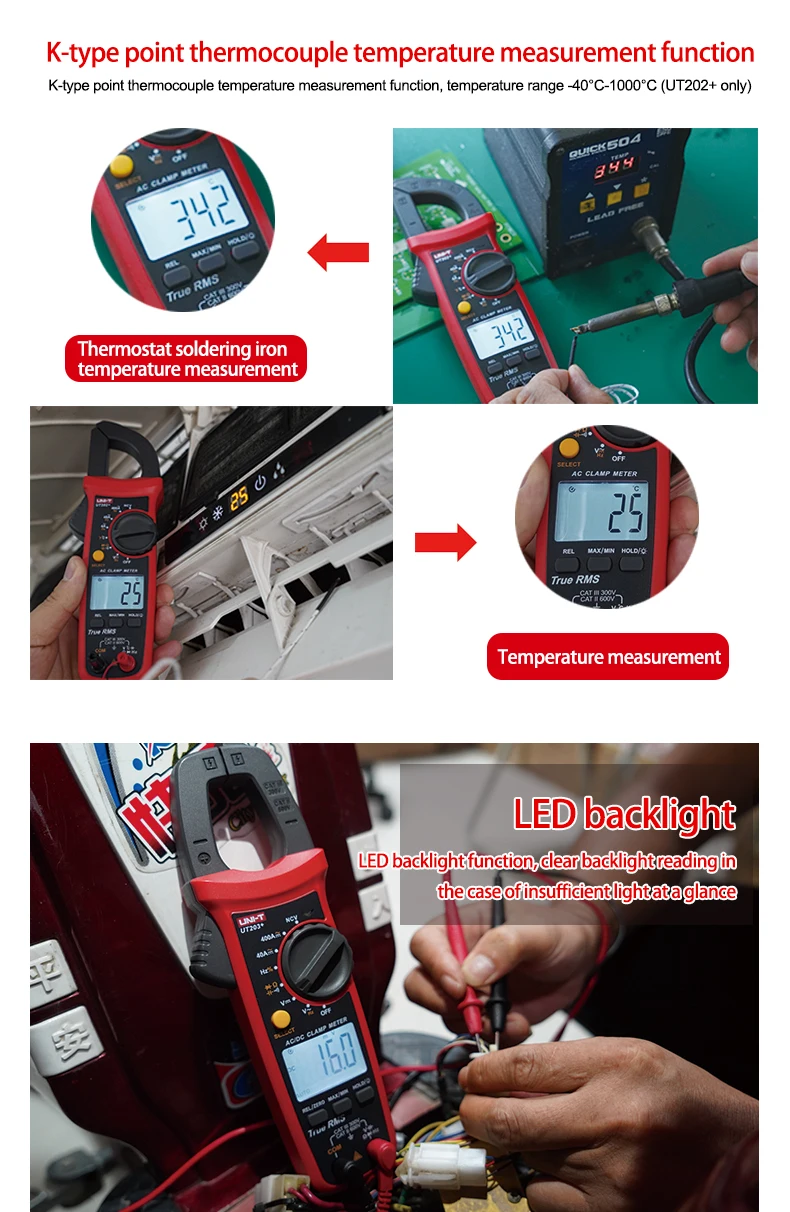

Temperature (℃)
|
-40℃~1000℃
|
±(1.5%+5)
|
|
Frequency (Hz)
|
10Hz~10MHz
|
|
|
Features
|
||
|
Display count
|
4000
|
|
|
Auto range
|
√
|
|
|

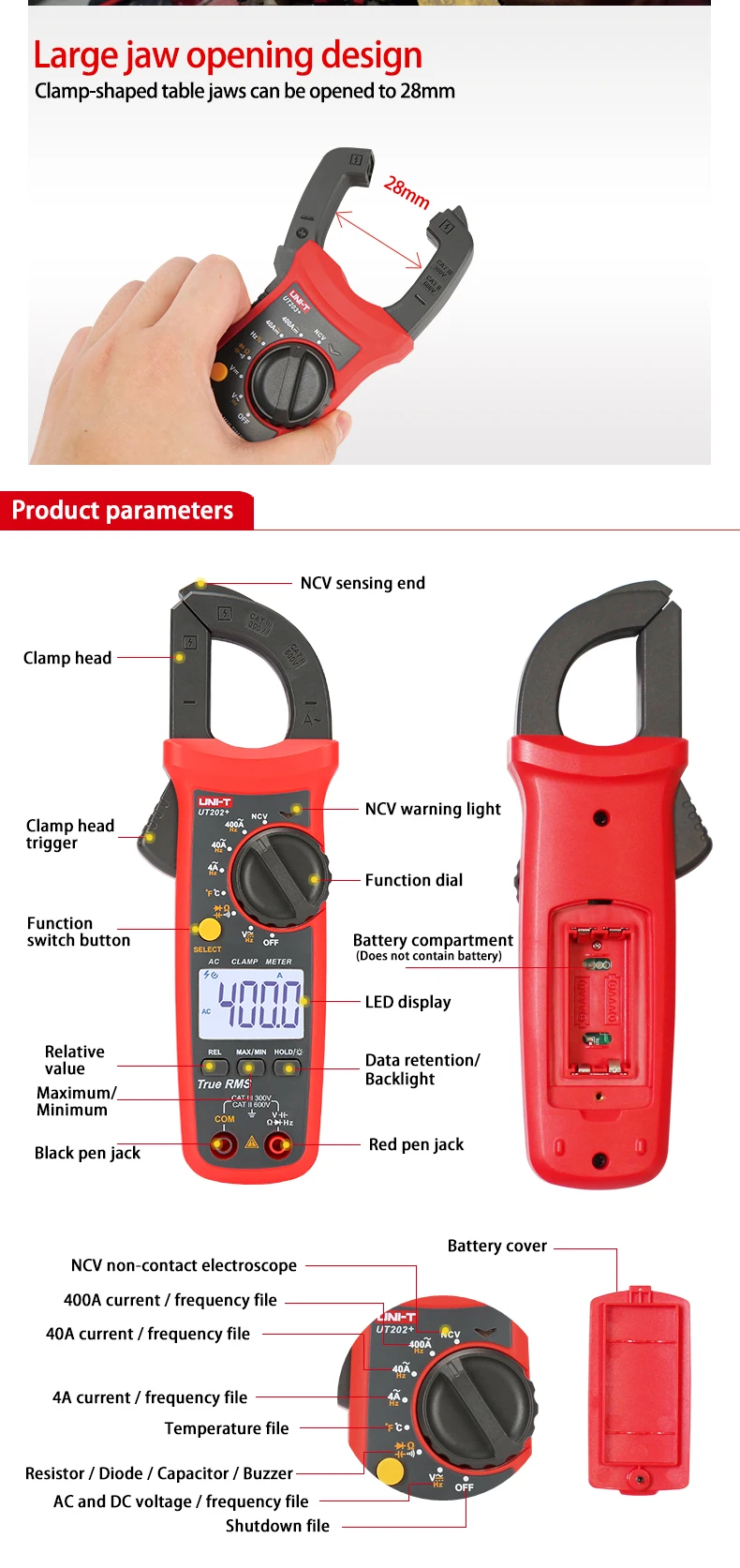

Jaw opening
|
28mm
|
|
|
True RMS
|
√
|
|
|
NCV
|
√
|
|
|
Live wire test
|
||
|
Continuity test
|
√
|
|
|
Diode
|
√
|
|
|
MAX/MIN
|
√
|
|
|
Relative mode
|
√
|
|
|
Zero mode
|
||
|
Data hold
|
√
|
|
|
Low battery indication
|
√
|
|
|
Auto power off
|
√
|
|
|
General Characterisitics
|
||
|
Power
|
1.5V battery (R03) x 2
|
|
|
Display
|
37mm x 25mm
|
|
|
Product color
|
Red and grey
|
|
|
Product net weight
|
248g
|
|
|
Product size
|
215mm x 63mm x 36mm
|
|
|

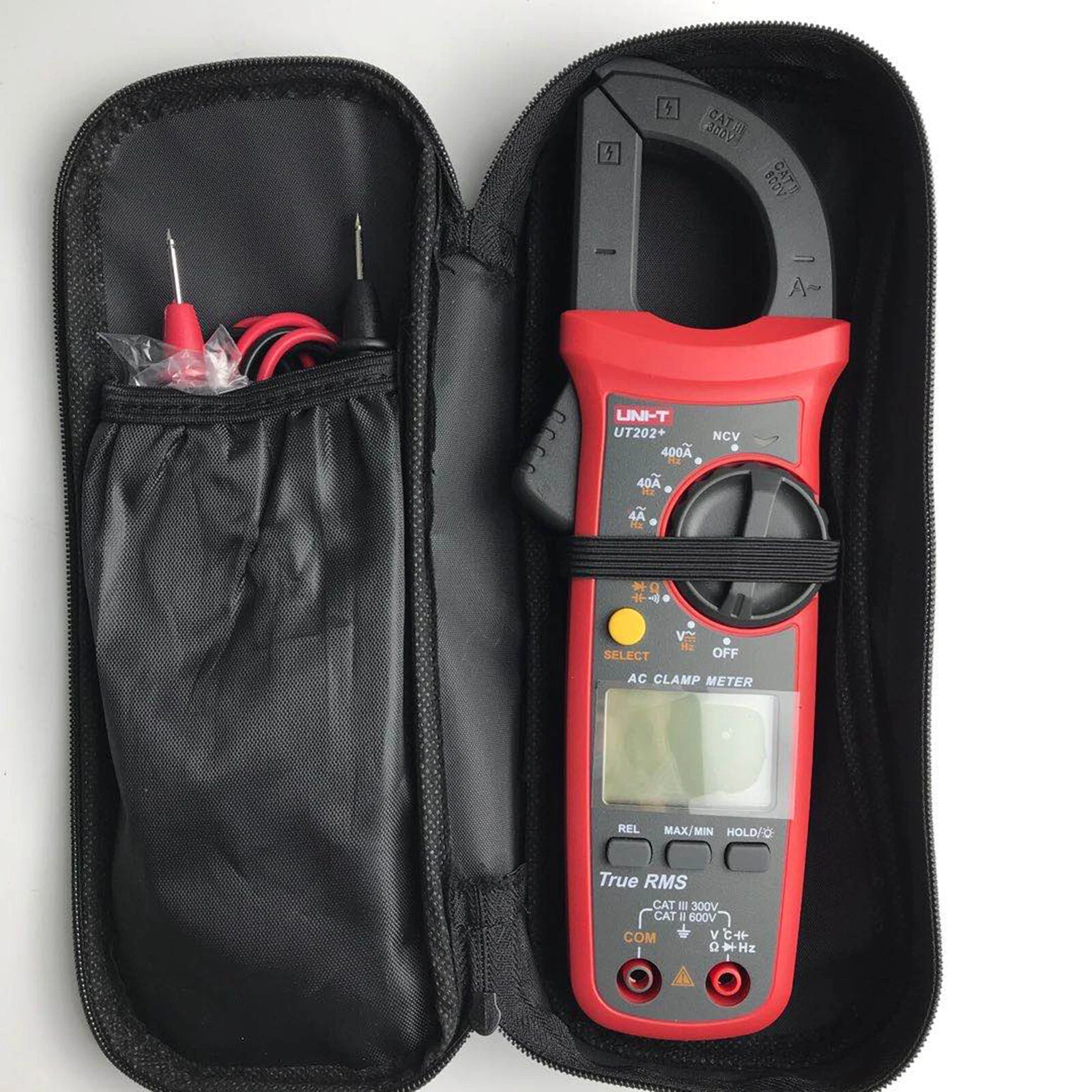

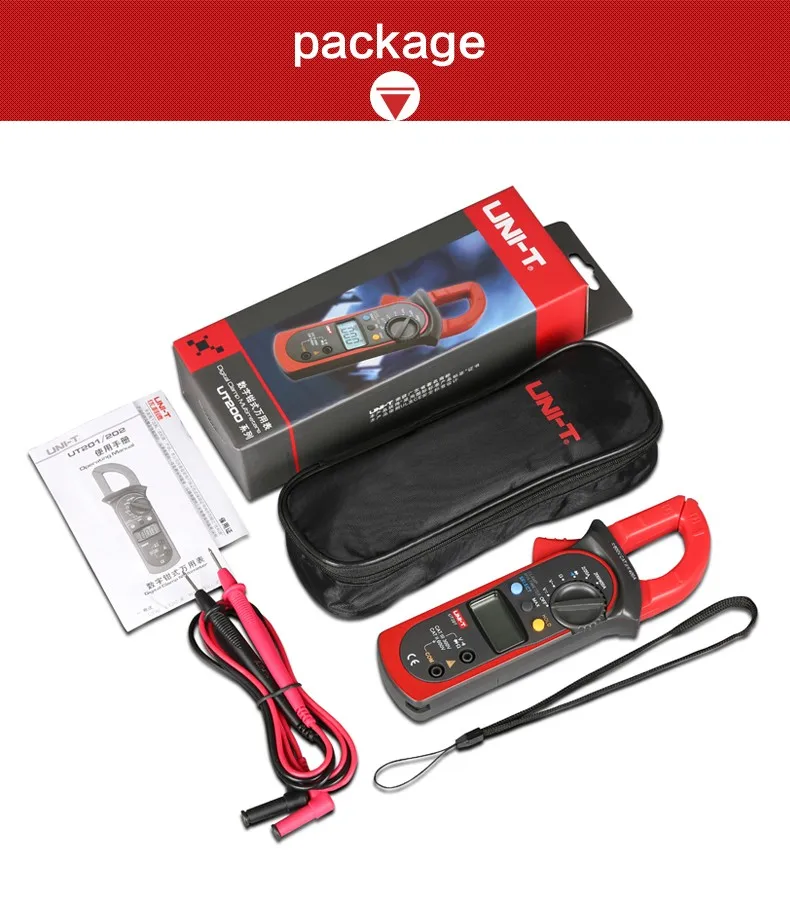

Standard accessories
|
Batteries, test leads, Themocouple
|
|
|
Standard individual packing
|
Gift box, Carring bag, English manual
|
|
