True RMS Accuracy – Provides precise measurements of AC/DC voltage, current, and resistance, even on non-linear loads.
Wide Function Range – Supports frequency, capacitance, temperature, diode, and continuity testing.
Safety Rated – Built with CAT III 600V protection, ensuring safe use in professional and industrial environments.
User-Friendly Display – Large backlit LCD with analog bar graph for clear and quick readings.
Durable & Practical – Robust housing with data hold, auto power-off, and low-battery indicator for reliable daily use.

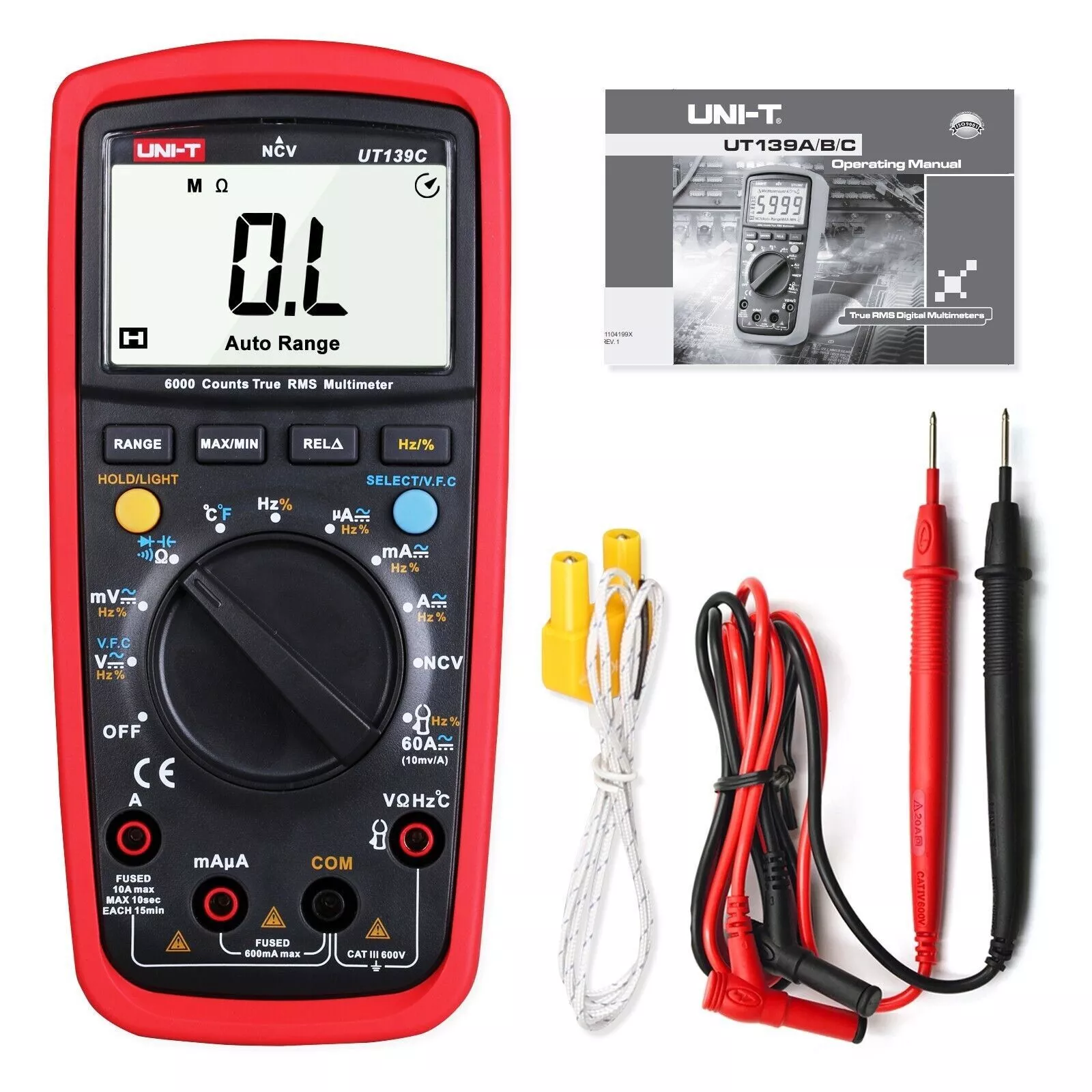

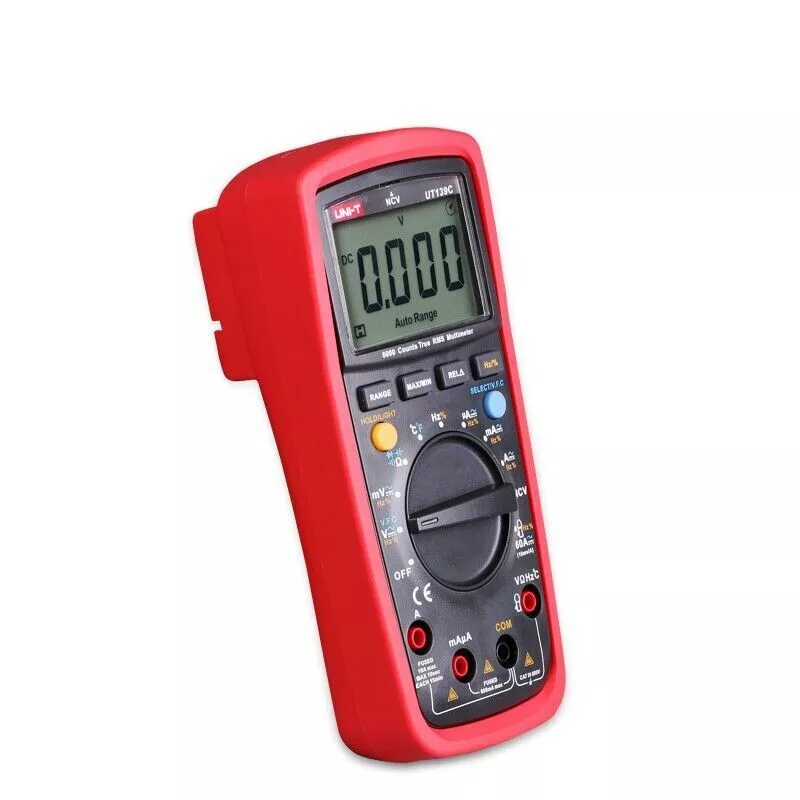

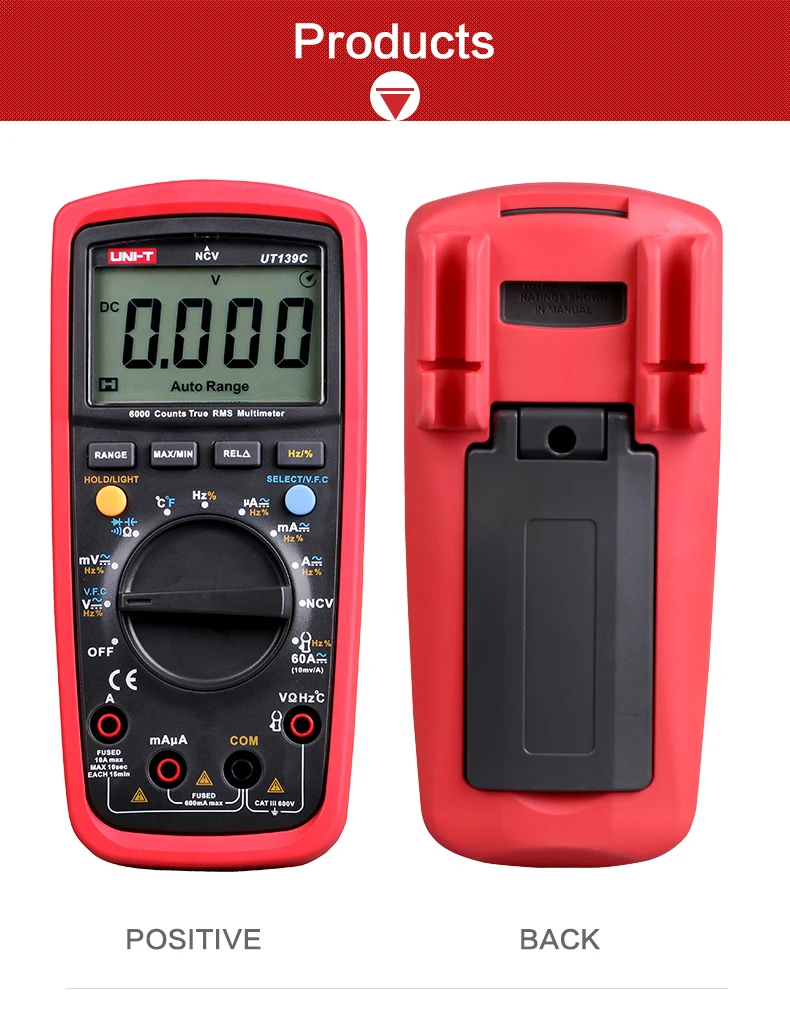

Uni-T UT139C Digital Multimeter is a highly reliable, auto-ranging digital multimeter designed specifically for electricians and technicians in Uganda. As the premium model in the UT139 series, it offers 6000-count resolution and True RMS technology, ensuring accurate readings on both standard and complex non-sinusoidal waveforms—essential for modern LED lighting and motor drive troubleshooting.
Built with a rugged, drop-proof design and a 100mF capacitance range, the UT139C is a versatile diagnostic tool for industrial maintenance, HVAC, and residential electrical work.
True RMS Measurement: Provides precise AC voltage and current readings, even in electrical environments with significant harmonic noise.
V.F.C (Variable Frequency Control): Features a built-in low-pass filter to accurately measure voltage and frequency in variable speed motor drives.
Non-Contact Voltage (NCV): Integrated sensor identifies live AC lines through walls or insulation, improving safety before you start work.
6000-Count Backlit LCD: High-resolution display with a bright backlight for clear visibility in dark control panels or ceiling voids.
Comprehensive Health Suite: Measures Heart Rate... wait, wrong device! This meter monitors Temperature (-40°C to 1000°C), Capacitance, Frequency, and Duty Cycle.

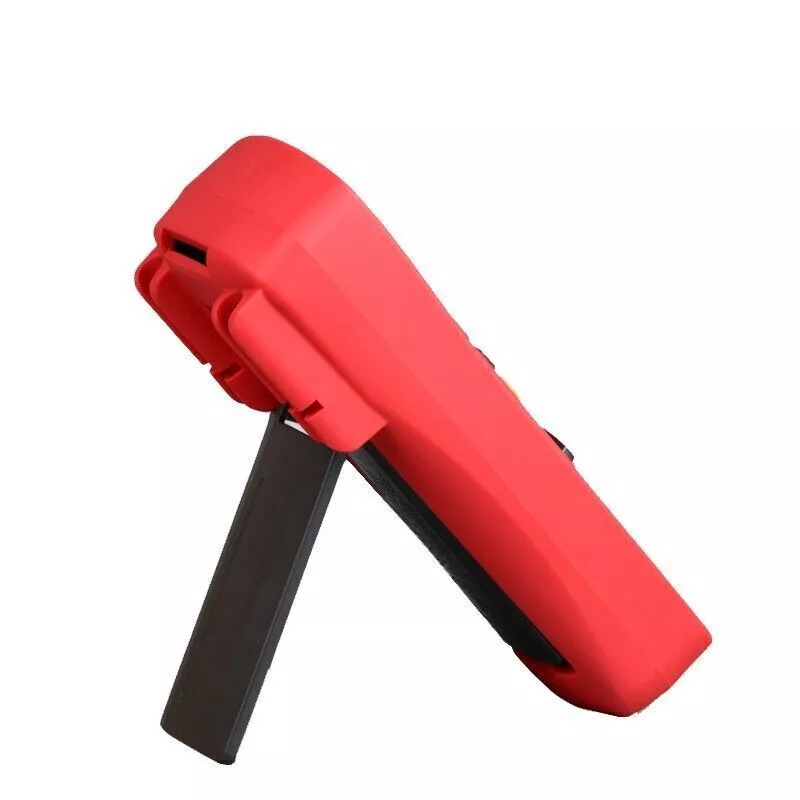

Ruggedized Protection: Encased in a thick rubber holster and tested to withstand a 2-meter drop. It is rated CAT III 600V for industrial safety.
|

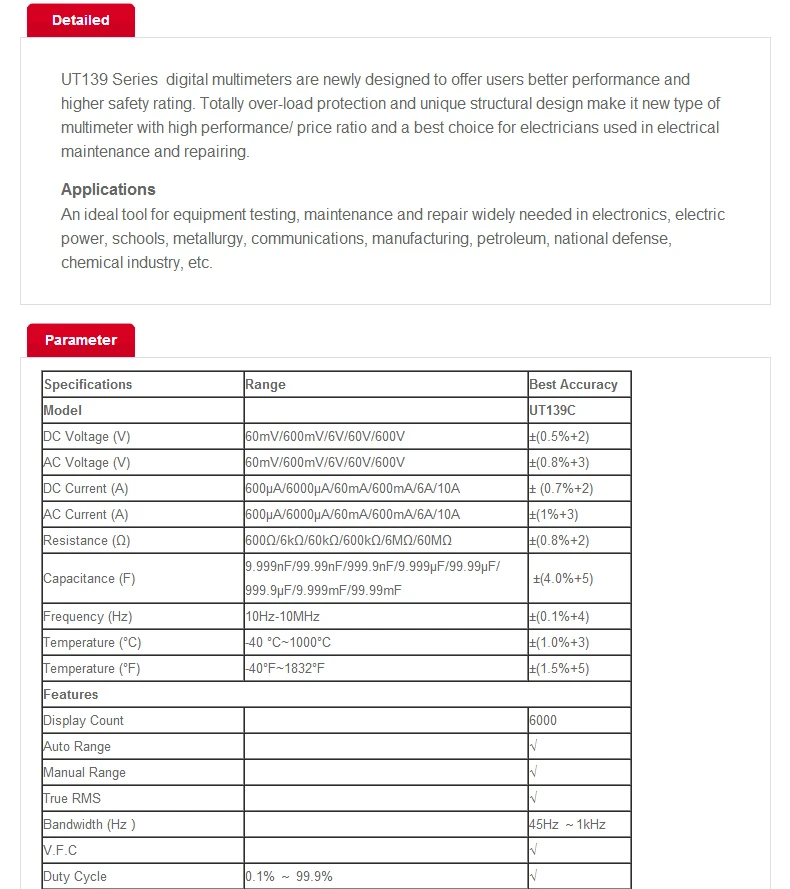

Specifications
|
Range
|
UT139C
|
|
DC voltage (V)
|
600V
|
±(0.5%+2)
|
|
AC voltage (V)
|
600V
|
±(0.8%+3)
|
|
DC current (A)
|
10A
|
±(0.7%+2)
|
|
AC current (A)
|
10A
|
±(1%+3)
|
|
Resistance (Ω)
|
60MΩ
|
±(0.8%+2)
|
|
Capacitance (F)
|
99.99mF
|
±(4%+5)
|
|
Frequency (Hz)
|
10Hz~10MHz
|
±(0.1%+4)
|
|
Temperature (°C)
|
-40°C~1000°C
|
±(1%+3)
|
|
Temperature (°F)
|
-40°F~1832°F
|
±(1.5%+5)
|
|
Features
|
||
|
Display count
|
6000
|
|
|
Auto range/Manual range
/True RMS |
√
|
|
|
Bandwidth (Hz)
|
45Hz~1kHz
|
|
|
NCV/Continuity buzzer
|
√
|
|
|
Duty cycle
|
0.1%~99.9%
|
√
|
|
Diode
|
Around 3V
|
|
|

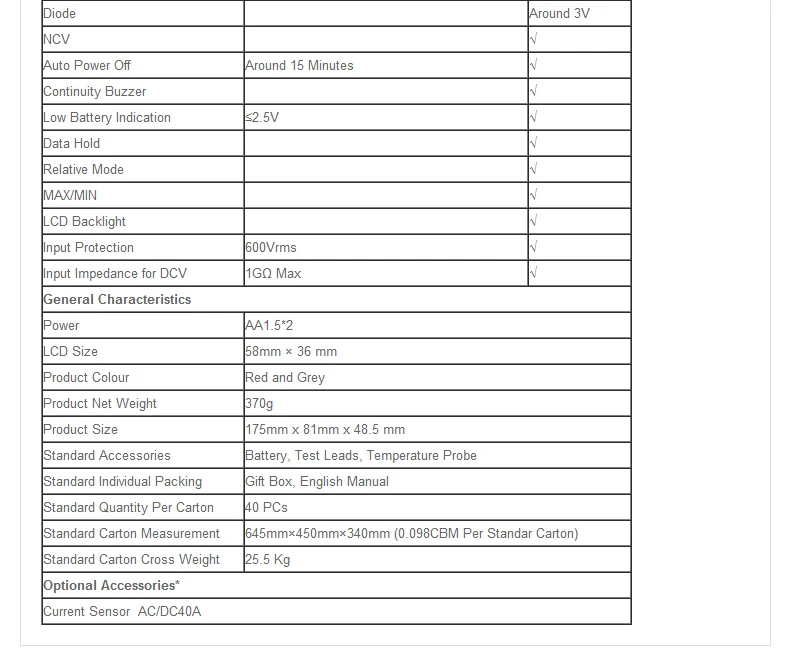

General Characteristics
|
||
|
Power
|
1.5V battery (R6) x 2
|
|
|
Display
|
58mm x 36mm
|
|
|
Product color
|
Red and grey
|
|
|
Product net weight
|
354g
|
|
|
Product size
|
170mm x 80mm x 48mm
|
|
|

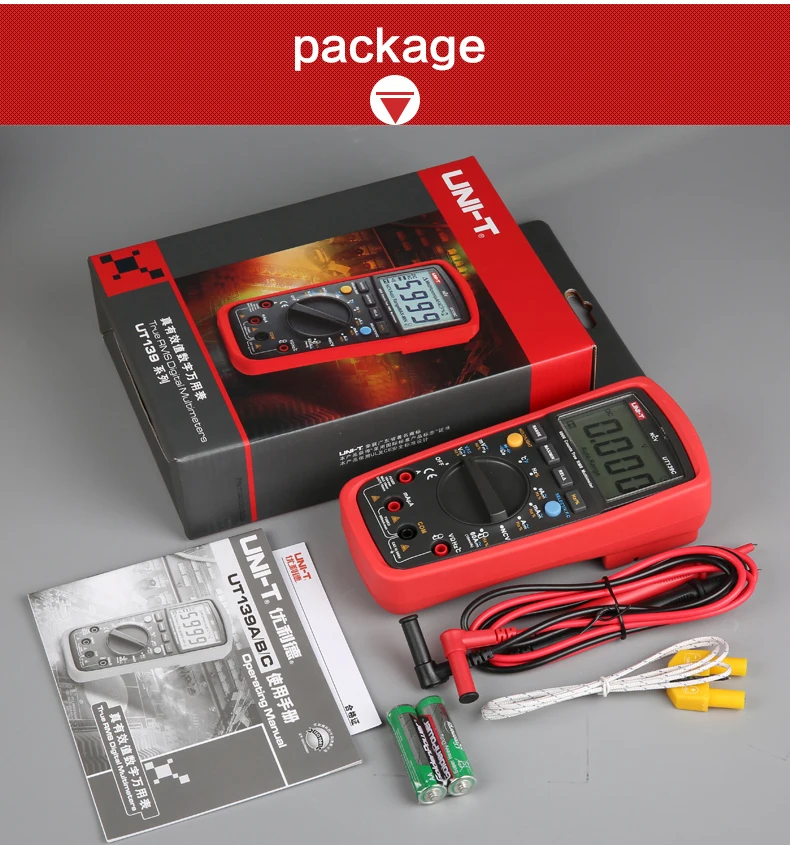

Standard accessories
|
Batteries, test leads, temperature probe
|
|
