Thinkdiag 2 Car Diagnostic Tool is a professional-grade Bluetooth OBD2 diagnostic tool that serves as a high-performance upgrade to the original Thinkdiag. It is designed to bridge the gap between basic consumer scanners and expensive UgX 2m+ shop tablets, offering advanced features like ECU coding and bi-directional testing.
The Thinkdiag 2 was specifically engineered to handle the newest vehicle technologies that older dongles cannot access:
Built-in CAN FD Protocol: This is the standout upgrade. It is required to communicate with many 2020 and newer GM vehicles (Chevrolet, GMC, Cadillac, Buick) and newer BMWs.
Upgraded Bluetooth 5.0: Offers a more stable, faster connection with a range of up to 10meters, allowing you to perform tests from outside the vehicle.
Enhanced Durability: Features a ruggedized TPU rubber sleeve for drop protection and includes a detachable 0.65m (approx. 2ft) extension cable to reduce wear on your car's OBD port.

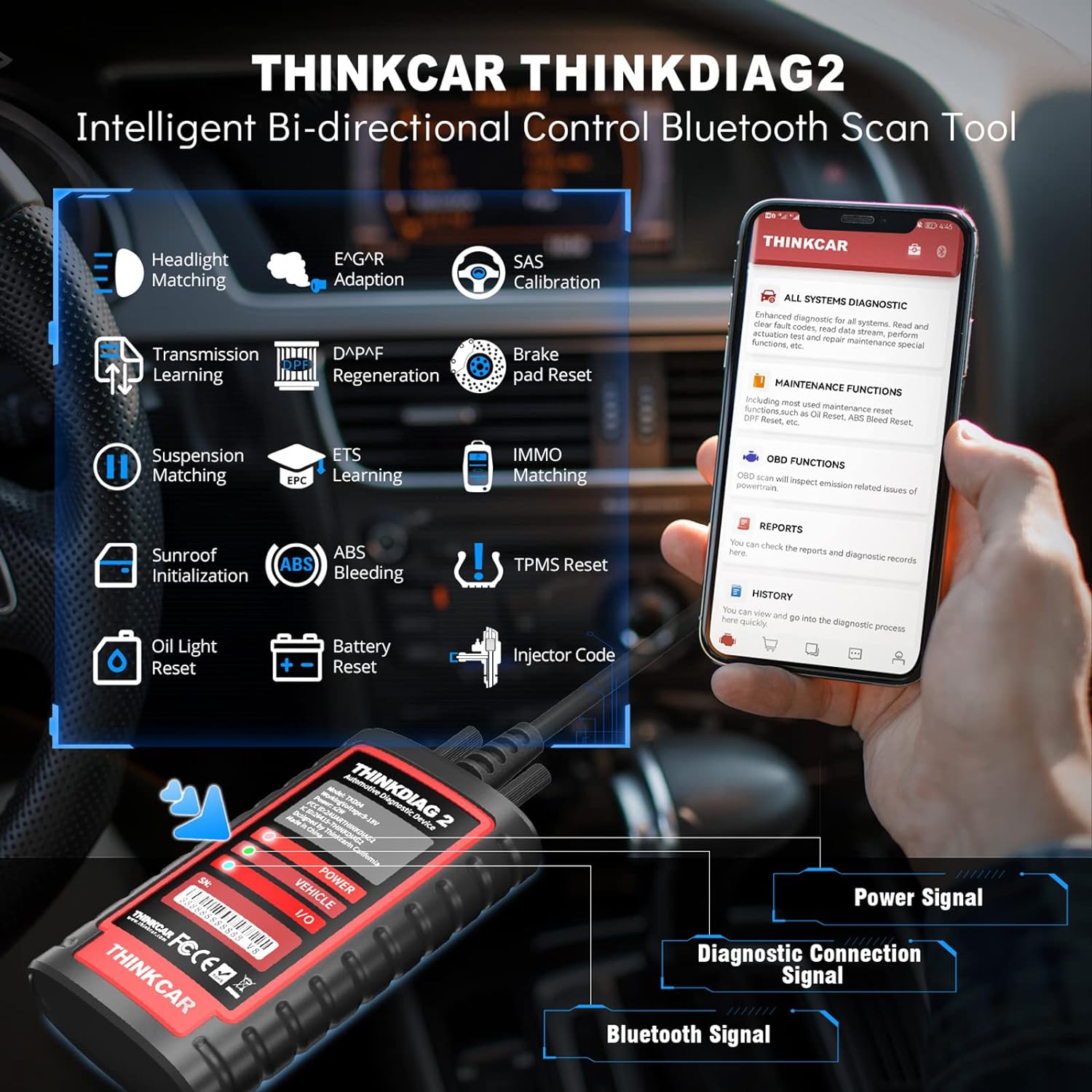

Dual-Sided Indicators: LED lights on both sides clearly show power (red), Bluetooth connection (blue), and communication status (green).

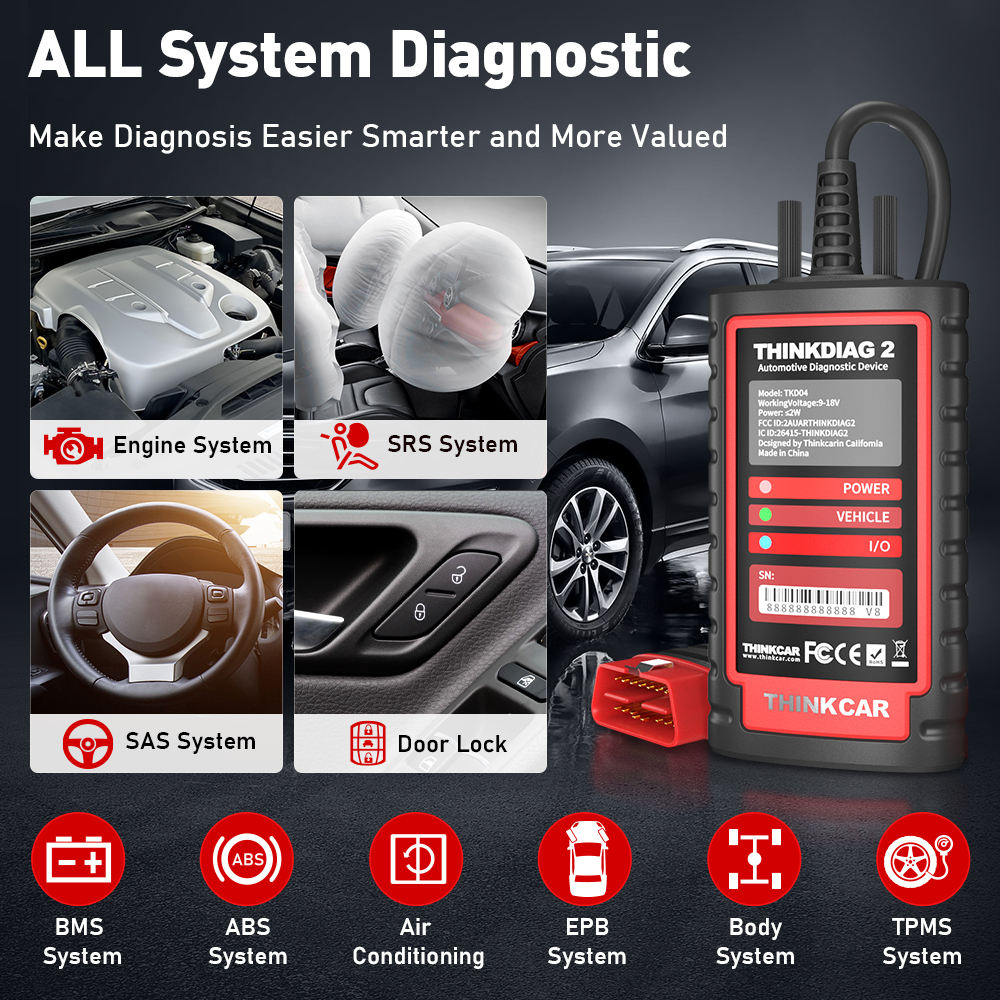

OE-Level Full System Diagnostics: Scans every electronic module in the car, including Engine, Transmission, ABS, SRS (Airbag), BCM (Body Control), TPMS, SAS, and more.

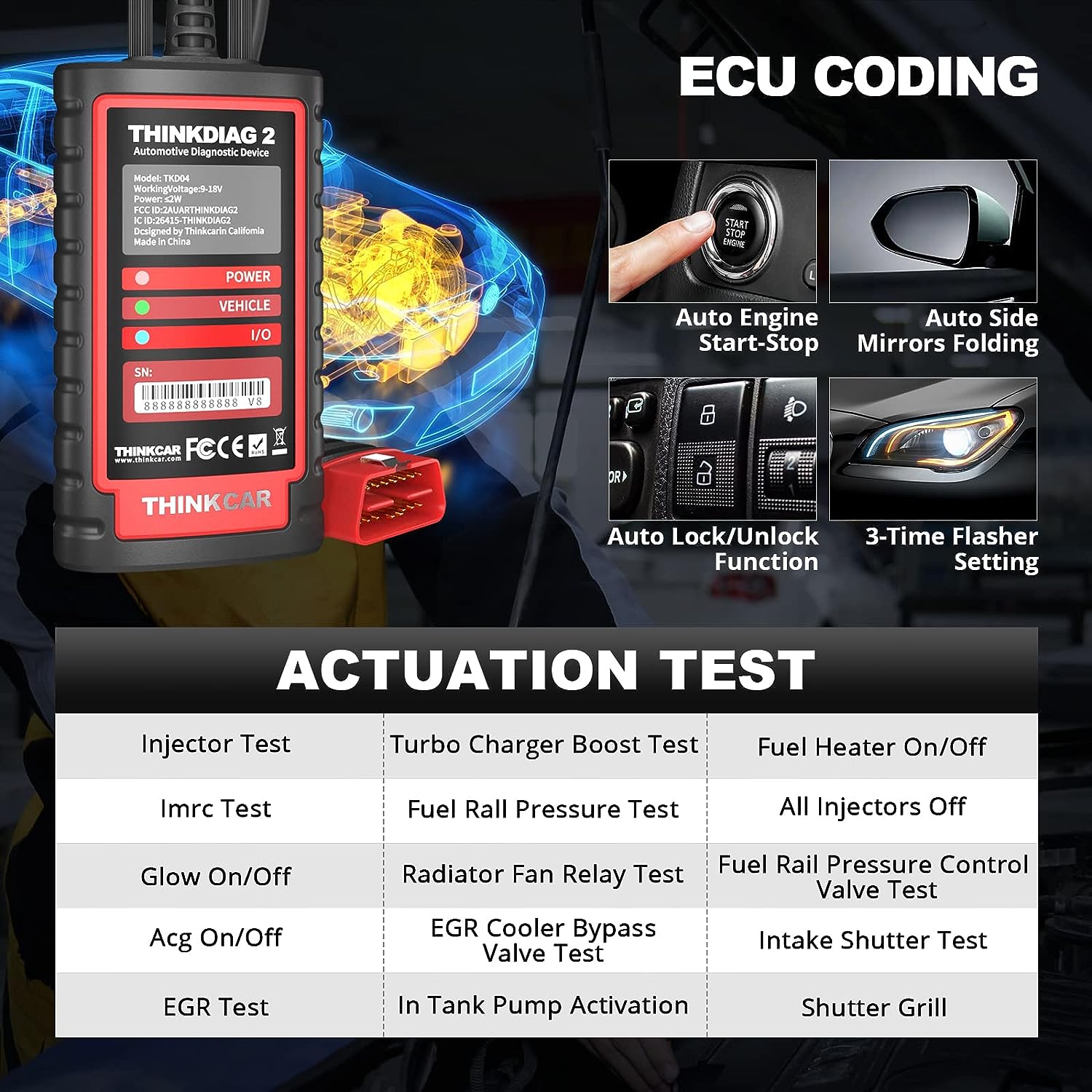

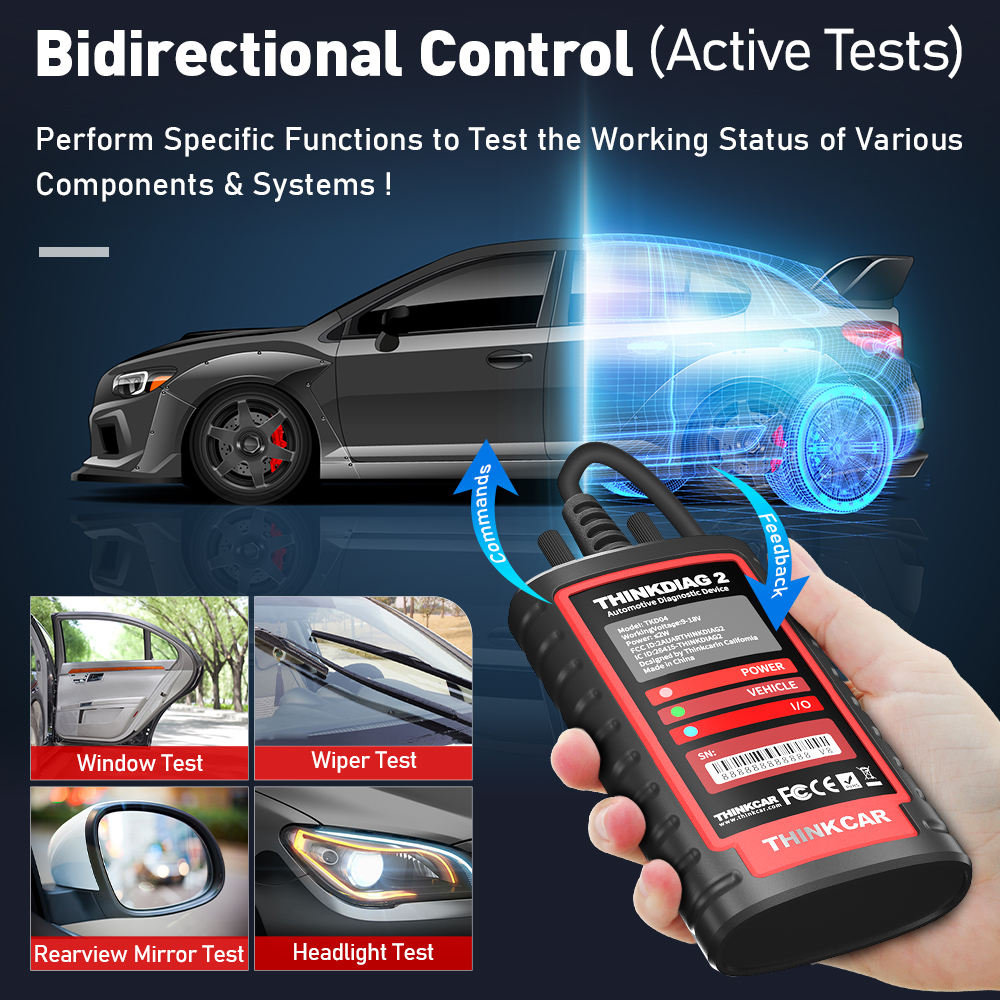

Bi-Directional Control (Active Tests): Actuates specific parts like the radiator fan, fuel pump, windows, or door locks to verify if they are physically operational.
Advanced ECU Coding: Allows for the "matching" of new parts after a repair and enables "hidden" features (e.g., closing windows with the key fob or changing daytime running light settings) on supported brands like VW, Audi, BMW, and Mercedes.

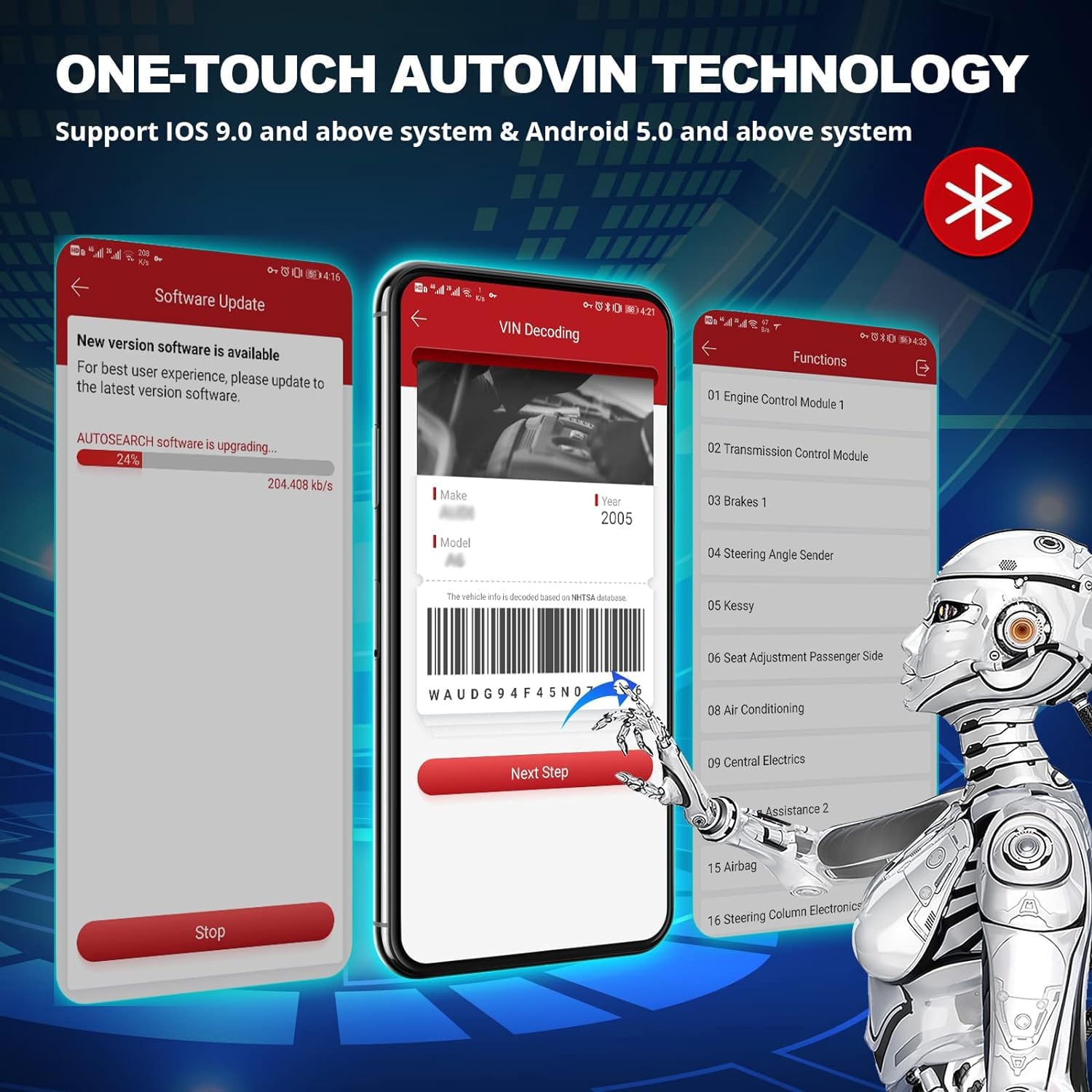

Auto-VIN Scan: Automatically identifies the vehicle’s VIN and specifications within seconds to speed up the diagnostic process.
|
|
|
|
|
|---|---|---|---|
| Model | Thinkdiag2 |
| Product Size | 4.8*2.7*1.1 inches |
| Operating Voltage | 9V-18V |
| Working Power | ≤2W |
| Operating Temperature | 14℉～122℉ |
| Storage Temperature | -4℉～140℉ |
| Number of Connector Pins | 15 PIN |
| Length of Diagnostic Cable | 23 inches |
| Bluetooth Version | 5.0BLE Bluetooth Dual-mode |
| Compatible Device | IOS 9.0 and above system & Andriod 5.0 and above system |

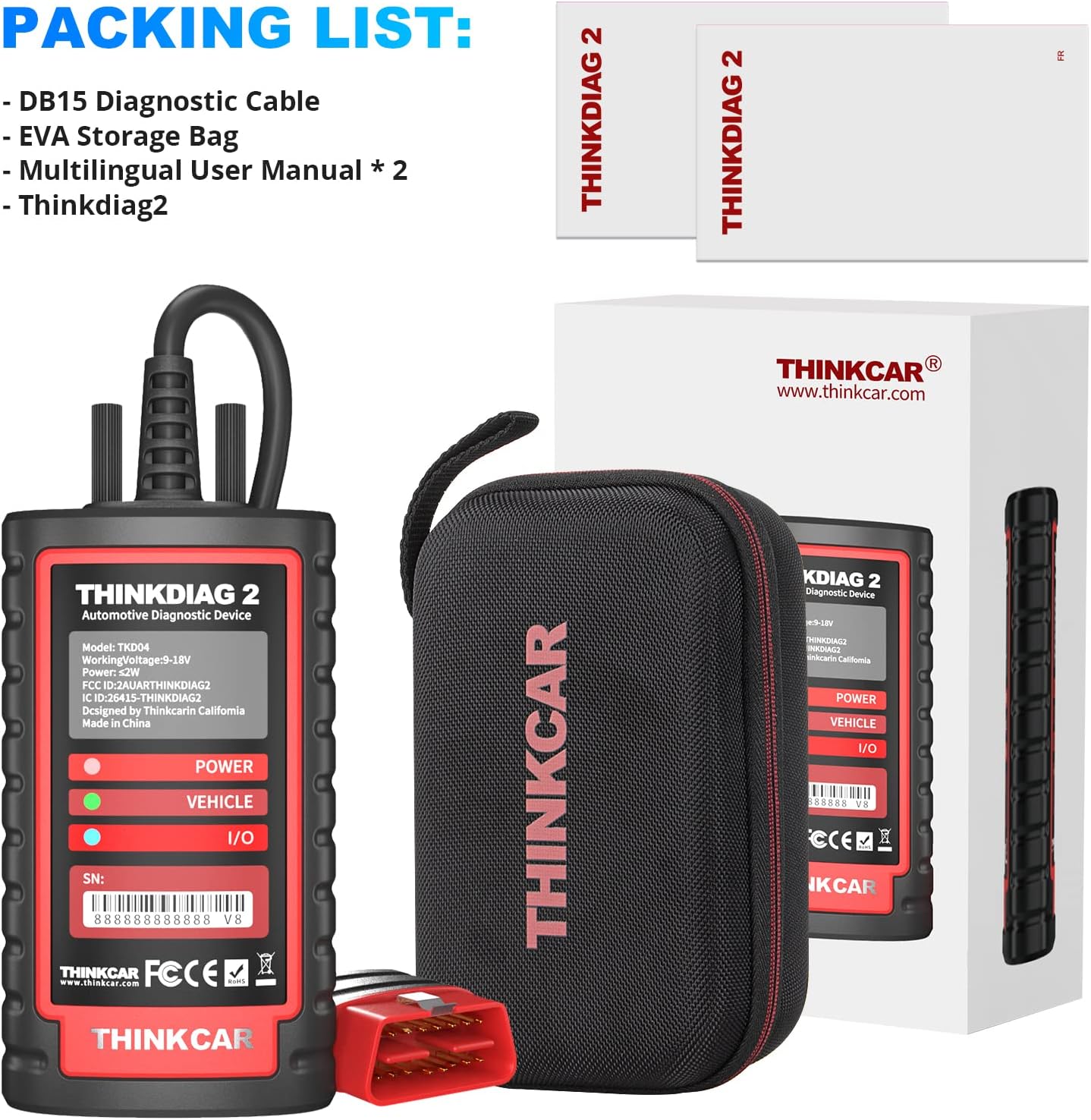

| What's in the package? | Thinkdiag2 Bluetooth Scanner, DB15 three-row to OBD 16pin diagnostic cable, EVA Storage Bag, Multilingual manuals. |
