High-Performance Antenna – Dual-band design for VHF and UHF frequencies.
Enhanced Signal Range – Improves reception and transmission distance for handheld radios.
Wide Compatibility – Fits most Baofeng, Kenwood, and other handheld transceivers.
Flexible Whip Design – Durable yet bendable for convenience and portability.
Optimized Tuning – Delivers clear, stable communication in varied environments.
Easy Installation – Simple screw-on SMA connector for quick setup

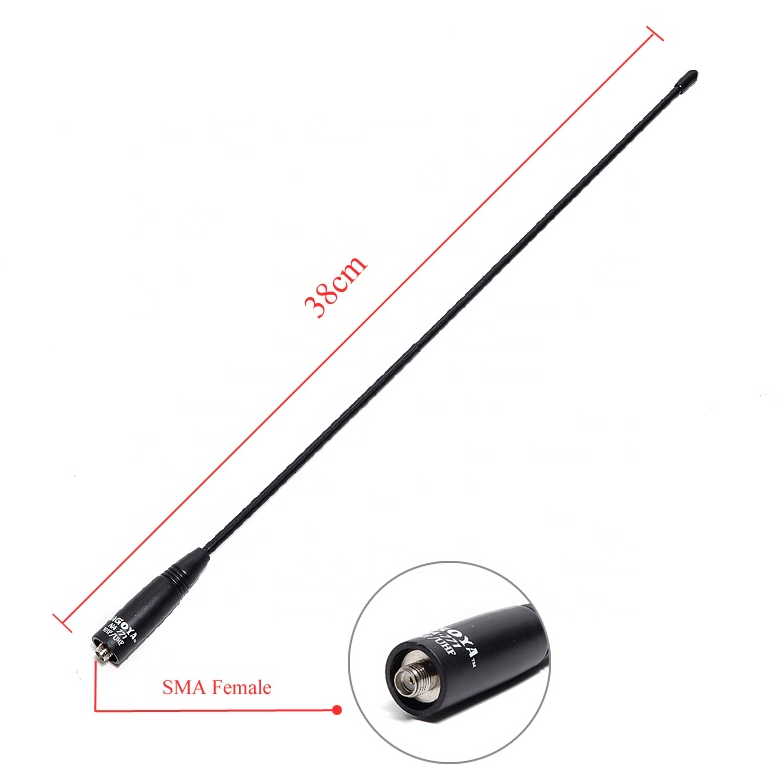

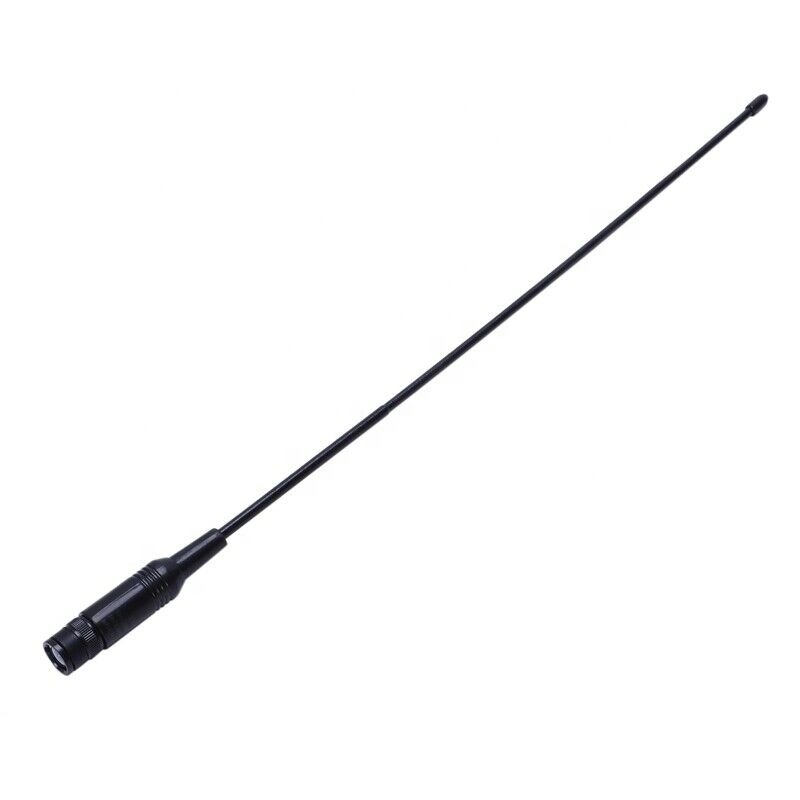

Nagoya NA-771 Long Range Antenna is the industry-standard upgrade for handheld walkie-talkies, specifically designed to replace the shorter, less efficient "rubber duck" antennas that come standard with most radios. Measuring approximately 39cm (15.6 inches), its increased length and precision-engineered loading coil provide a significant boost in both transmitting (TX) and receiving (RX) performance.
This flexible, whip-style antenna is a favorite among outdoor enthusiasts, security teams, and amateur radio operators in Uganda who need to extend their communication range by up to 30%–50% over stock antennas.
Extended Range Performance: The 15.6-inch length allows the antenna to "hear" weak signals and transmit further by providing a higher gain (2.15dBi on VHF 3.0dBi on UHF).
Dual-Band Versatility: Optimized for the two most common communication bands: VHF (144MHz) and UHF (430MHz). It also offers wideband reception for scanning other frequencies.
Flexible & Rugged Design: Made from a soft, durable rubber-like material that can bend 180 degrees without breaking—ideal for tactical use, hiking, or camping.
Low VSWR: Precision tuned to maintain a Voltage Standing Wave Ratio (VSWR) of less than 1.5:1, ensuring maximum power is sent to the antenna and protecting your radio’s internal circuitry.
Wide Compatibility: Available in multiple connector types to fit almost any handheld radio, including the popular Baofeng UV-5R and UV-82 series.
| Feature | Details |
| Frequency Range | 144 / 430 MHz (Dual Band) |
| Gain | 2.15 dBi (VHF) / 3.0 dBi (UHF) |
| Max Power Rating | 10 Watts |
| Impedance | 50 Ohms |
| Length | ~39.6 cm (15.6 inches) |
| Weight | ~40g |
| Connector Options | SMA-Female (Most Baofeng), SMA-Male (Yaesu), or BNC |
Suitable for Baofeng walkie talkie:
BF-666S, BF-777S, BF-888S, BF-320, BF-480, BF-490, BF-V6, BF-V8, BF-388A, UV-5R, UV-5RA, UV-5RB, UV-5RC, UV-5RD, UV-5RE,
UV-82,UV-B5 B6, GT-3, UV-6R, BF-F8+ DM-5R BF-UVB2/B3 Plus, UV-S9
|
1 X Dual Band Antenna |
