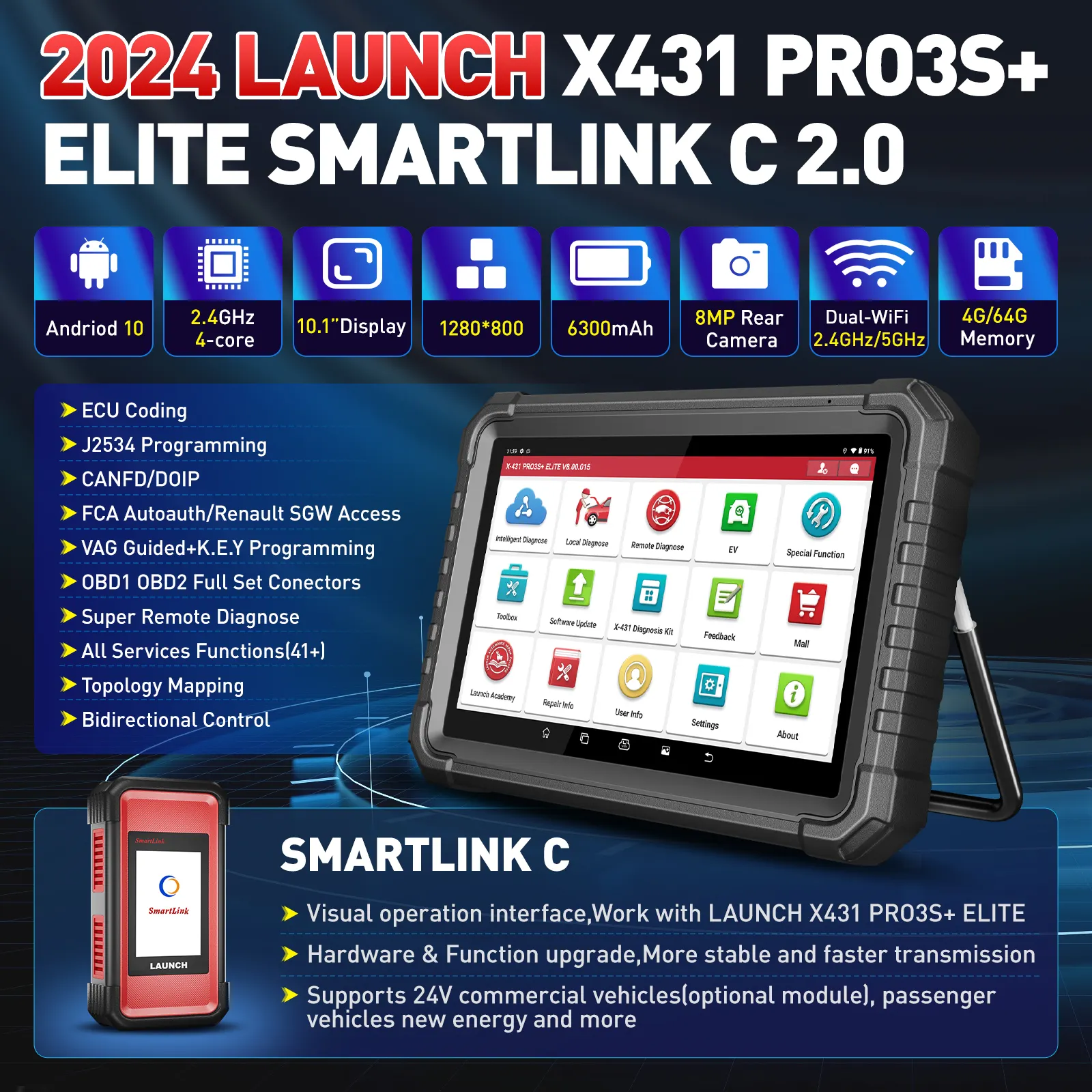

The Launch X431 PRO3S+ Elite Car Diagnostic Tool is a heavy-duty, professional-grade diagnostic powerhouse designed for high-volume repair shops and master technicians. The PRO3S+ Elite is a full-sized workstation that introduces J2534 Programming and Topology Mapping—features usually reserved for tools costing thousands more.
Key features of Launch X431 Pro3S+ Elite Car Diagnostic Tool
1. SmartLink C 2.0 & J2534 Programming
The centerpiece of the "Elite" version is the SmartLink C 2.0 VCI.
J2534 Pass-Thru: It serves as a J2534 interface, allowing you to use OEM factory software (like BMW ISTA or Toyota GTS+) to reflash and program ECUs.
Dual Diagnosis Mode: Supports both local Bluetooth diagnostics and Super Remote Diagnosis, where a remote expert can assist you via the cloud.
Modern Protocol Support: Natively supports CAN FD and DoIP without needing extra adapters.
2. Intelligent Topology Mapping 2.0
Instead of just a list of modules, the tool provides a color-coded visual tree of the vehicle’s communication network.
Instant Triage: You can see exactly which module has a fault (Red) and how it’s affecting other linked modules (Grey/Communication failure).
Efficiency: This feature is estimated to improve diagnostic speed by up to 90% for complex electrical issues.
3. Advanced ECU Coding & "Flash Hidden" Functions
Online Coding: Directly access OEM online servers for brands like VW, Audi, BMW, and Mercedes-Benz to match and code new modules.
Customization (Flash Hidden): Unlock features disabled by the factory, such as auto-folding mirrors, disabling the auto start-stop system, or adjusting daytime running light brightness.
PMI (Programmable Module Installation): Supports Ford, Mazda, and others to ensure data is correctly transferred to new modules.
4. 60+ Maintenance Service Functions
The "Elite" model expands the standard service list significantly. Key functions include:
Advanced Systems: DPF Regeneration, AdBlue Reset, Gearbox Matching, Sunroof Initialization, and Air Suspension Calibration.
High Voltage: Includes specialized diagnostics for EV (Electric Vehicle) battery health and high-voltage systems.
5. Bi-Directional Control (Active Tests)
Full ability to command actuators to verify functionality. Examples include:
Cycling the A/C clutch on/off.
Performing a fuel pump test or injector buzz test.
Operating window regulators and sunroofs to test for mechanical vs. electrical failure.
6. Professional-Grade Hardware
Screen: 10.1-inch Gorilla Glass touchscreen (1280 x 800) for durability in shop environments.
Speed: 2.0GHz Quad-Core processor with 4GB RAM and 64GB storage (expandable to 128GB).
Battery: 6300mAh high-voltage battery (up to 15 hours of continuous use).
FCA AutoAuth: Built-in access for the security gateways of 2017+ Chrysler, Jeep, Dodge, and Fiat vehicles.

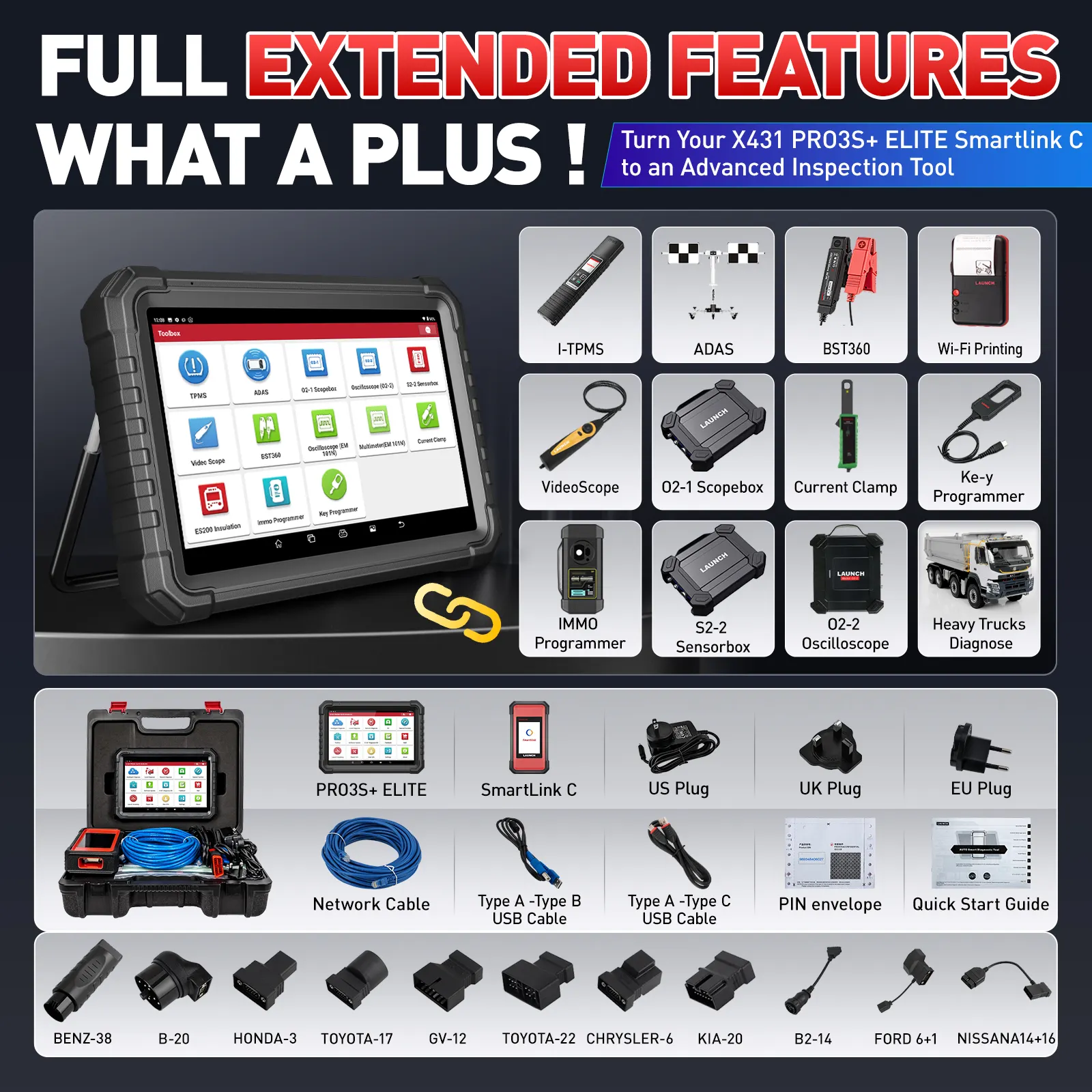

Add-on Module Support
The PRO3S+ Elite acts as the "brain" for an entire ecosystem of tools (sold separately):
X-PROG 3: For advanced key programming and IMMO work.
BST360: For integrated battery testing.
VSP-600: Videoscope for inspecting cylinders and tight spaces.
ADAS Calibration: Compatible with Launch ADAS mobile/pro frames.
How to Use SmartlinkC V2.0 as a J2534 Protocol Tool?
Download and install the drivers for SmartLink V2.0 at the LAUNCH official site. Below is the link. After you enter the website, please click "Tool download", then you will find it. If you can not visit the website, we can send it to you directly
Download the OEM software in Automakers' Service Webs to your computer. (The seller does not provide the OEM software).
Connect the SmartLink V2.0 to your computer with the included USB cable, or via the stable and reliable 5G Wi-Fi network.
Connect the SmartLink 2.0 to your vehicle' s DLC port with/without the included extended OBDII cable. Warm Tip: J2534 tool is only compatible with Windows-based computers yet. Available operations vary by the test vehicles.
60+ Maintenance Service Functions
Oil Reset
EPB Reset (Electronic Parking Brake Reset)
Battery Matching
ABS Bleeding
SAS Reset
D.P.F Regeneration
Fuel Injector Reset
TPMS Reset
AFS Reset
Sunroof Initialization
Throttle Adaptation (idle relearn) Initializing the throttle actuators so that the “learned” values stored on ECU are returned to the default state.
Gearbox Reset
Air Suspension Reset
Gear Learning
Tire Reset
A/F Reset
AdBlue Reset(Diesel Engine Exhaust Gas Filter)
G.P.F Regeneration
Camshaft/Crankshaft Sensor Relearn
Nox Sensor Reset: Resetting the catalytic converter learned value stored in the ECU is important for maintaining vehicle performance.
The hardware is built for durability and speed, featuring a larger "Gorilla Glass" screen and a significantly upgraded VCI (Vehicle Communication Interface).
