Launch X431 Key Programmer & Remote Maker is a specialized add-on tool designed to work with the Launch X431 series tablets (like the IMMO Elite, IMMO Plus, and PAD V). It transforms your diagnostic scanner into a dedicated key-cutting and remote-cloning station.
Unlike the larger X-PROG 3 (which focuses on deep EEPROM/MCU reading), this tool is built for the "front-end" of key making: identifying chips and generating new remotes.
The device acts as a bridge between a "blank" universal key and the vehicle's specific security protocol.
Read & Generate Transponders: Identifies the chip type in an existing key and can write that data onto a Launch Super Chip.
Remote Generation: Can "burn" specific vehicle software onto a blank Launch universal remote (supports over 60+ brands).
Frequency Detection: Built-in tester to check if a remote is broadcasting at 315MHz, 433MHz, 868MHz, or 902MHz.
Ignition Coil Detection: Helps you troubleshoot if the car's ignition switch is actually sending a signal to the key.
Toyota Smart Key Unlock: Can "virginize" used Toyota smart keys so they can be programmed to a different vehicle.
Launch uses a "universal" hardware system to keep stock costs low for locksmiths:
Super Chip: A single chip that can be programmed to emulate dozens of different transponders (8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, etc.).
Remote Series:
LS Series: For Nissan-style smart cards.
LN Series: For Peugeot/DS-style wireless remotes.
LE Series: For Volkswagen/Ford-style "Super Remotes" (Kessy/Keyless Entry).
Read Transponder
Generate Transponder
Detect Frequency
Detect Ignition switch coil signal
Generate Remote (Launch X431 remote)
Set type of super chip
Set type of wireless remote
Unlock Toyota smart key
| Feature | Specification |
| Communication | USB-C to the Tablet |
| Interface | Induction Coil (for chips) + Slot (for remotes) |

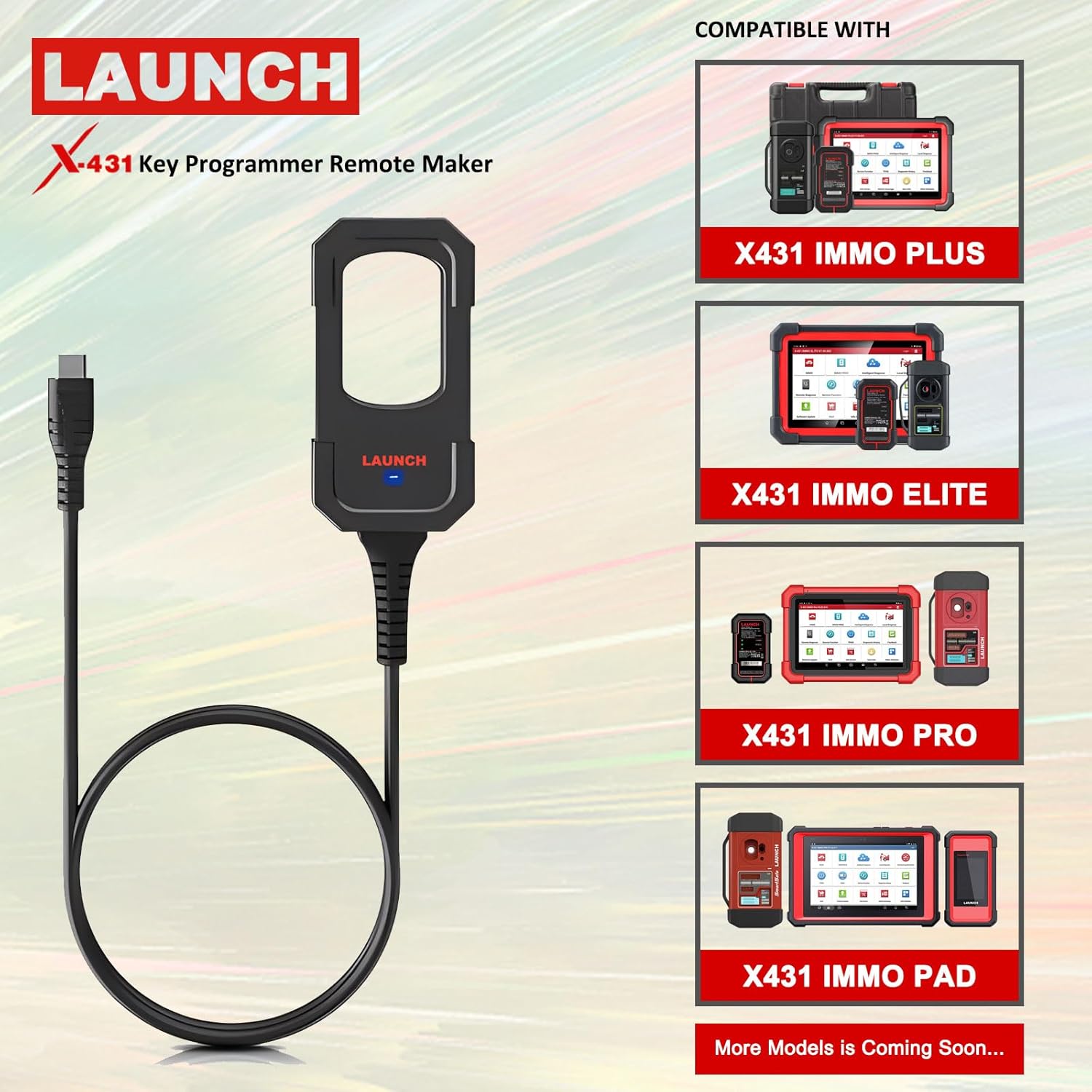

| Compatibility | IMMO Elite, IMMO Plus, PAD V, PAD VII, Pro3 APEX |
| Power | 5V (Powered by the tablet) |
1. Enter the menu [Set type of super chip] to generate.
2. Select the corresponding key chip type and insert the super chip into the anti-theft induction coil.
3. Once successfully generated, it can be used.
1. Enter the [Vehicle Remote] menu and select the corresponding available super remote to generate.
2. Select the corresponding key and place the super remote key in the key programmer to generate.
1. Enter the [Vehicle Remote] menu and select the corresponding smart key model to generate.
2. Place the smart remote key in the key programmer to generate.
1. Enter the [Vehicle Remote] menu and select the corresponding electronic key model to generate.
2. Place the electronic remote key in the key programmer to generate.
3. For car models without electronic keys, enter [Set type of wireless remote] to generate the corresponding key.

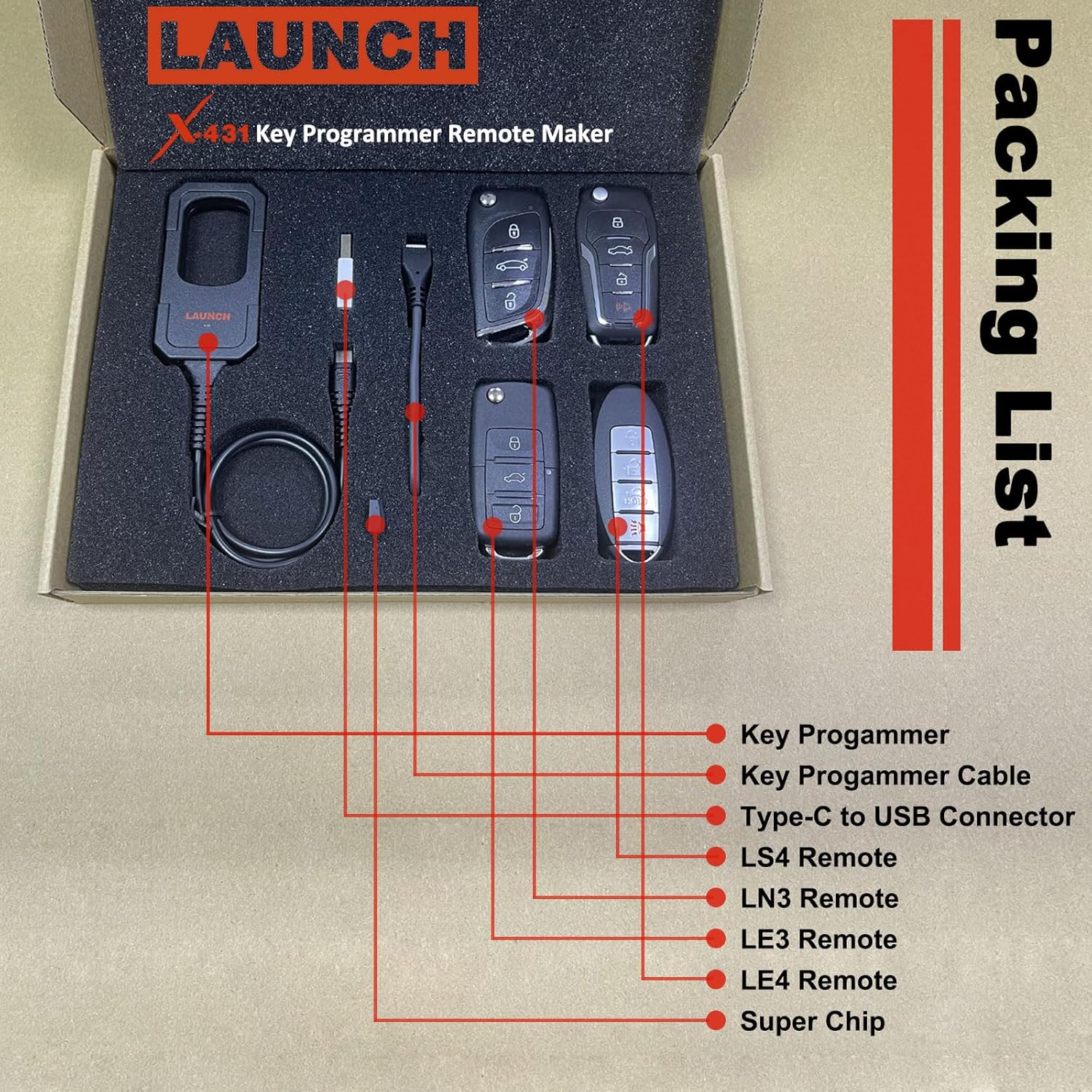

Package Includes:
1pc x Launch X431 Key Programmer
1pc x Super Chip
4pcs x Smart Keys
