The LAUNCH Non-16 Pin Adapter Kit is an essential diagnostic accessory package designed to connect LAUNCH X-431 series scanners to older, pre-OBD2 and non-standard vehicle diagnostic ports (1996–2002 era). Built with OE-compliant molded connectors and dedicated auxiliary power cables, it extends your scan tool’s coverage across vintage Asian, European, and American passenger cars.
Key Features
Comprehensive OBD1 Coverage: Covers legacy proprietary diagnostic ports for major Japanese, European, and American makes.
Plug-and-Play Integration: Seamlessly connects your LAUNCH DBScar / SmartLink / SmartBox VCI to the vehicle's proprietary port.
Auxiliary Power Solutions: Includes battery clamps and cigarette lighter power adapters to power your diagnostic tool on vehicles where the legacy port does not supply 12V battery power.
Heavy-Duty Construction: Industrial-grade, chemical-resistant molded plastics and reinforced strain reliefs for rugged workshop use.
Organized Storage: Housed in a custom fitted hard-shell carry box for easy shop organization.
Diagnostic Tool Compatibility
Works across the entire LAUNCH X-431 professional lineup, including:
LAUNCH X-431 PAD III / PAD V / PAD VII Elite
LAUNCH X-431 PRO / PRO3 / PRO3S+ / PRO5
LAUNCH X-431 V / V+ / PRO MINI / Diagun V
Other standard 16-pin OBD2 passthrough scan tools (with compatible pin mapping)
Vehicle Connector Included:
| Vehicle Brand | Connector Type |
| Mercedes-Benz | BENZ-38 Pin, BENZ-14 Pin |
| BMW | BMW-20 Pin |
| Toyota | TOYOTA-17 Pin (Under-hood/Dash), TOYOTA-22 Pin |
| Nissan | NISSAN-14+16 Pin |
| Honda | HONDA-3 Pin |
| Mitsubishi / Hyundai | 12+16 Pin Dual Lead |
| Ford | FORD-6+1 Pin |
| GM / VAZ | GM/VAZ-12 Pin |
| Chrysler | CHRYSLER-6 Pin |
| Kia | KIA-20 Pin |

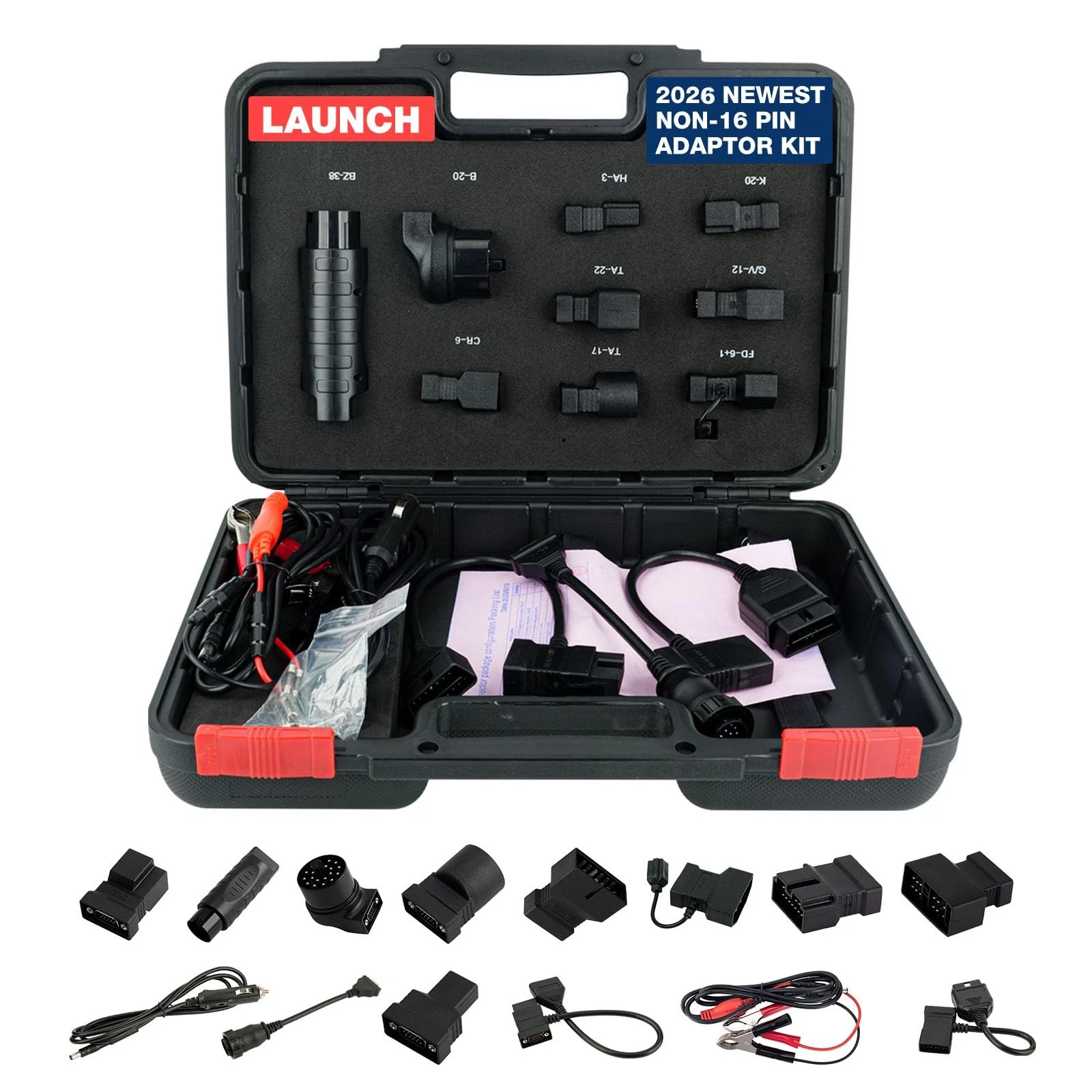

Package Contents:
12 × OEM-Style Non-16 Pin Vehicle Connectors
1 × Double-Clamp Battery Power Cable
1 × Cigarette Lighter 12V Power Cable
4 × Replacement Clipper Fuses (5×20mm)
2 × Replacement Lighter Fuses (6×30mm)
1 × Heavy-Duty Blow-Molded Storage Case
