Kingbolen K10 Pro Car Diagnostic Tool

Description

Kingbolen K10 Pro Car Diagnostic Tool is the flagship model in the Kingbolen lineup, designed for high-volume workshops that require a large-screen, high-performance diagnostic solution. Featuring a massive 10.1-inch HD display and a high-capacity 12,600mAh battery, it offers the most advanced visual diagnostics in its class, including a Smart Topology Map for rapid troubleshooting.

With 2 Years of Free Updates and support for CAN-FD, DoIP, and FCA AutoAuth, the K10 Pro is ready to handle modern luxury vehicles (2020–2026) and complex electronic networks.

Key Advanced Features of Kingbolen K10 Pro Car Diagnostic Tool

• Visual Topology Mapping: Provides a color-coded tree diagram of the vehicle's entire electronic network. Instantly identify which modules are "Healthy" (Green), "Faulty" (Red), or "Not Responding" without scanning each system individually.

• Advanced ECU Coding: Perform online coding for VW, Audi, and BMW and offline coding for Mercedes-Benz. Unlock hidden features like auto-folding mirrors, disabling start/stop, or customizing daytime running lights.

• Bi-Directional Control: Send commands to actuators to verify the operation of fans, fuel pumps, injectors, windows, and ABS pumps directly from the tablet.

• OE-Level All System Diagnosis: Deep access to all control units including Engine, Transmission, Airbag, ABS, TPMS, BCM, and more.

• Next-Gen Protocol Support: Native CAN-FD for new GM/Ford models and DoIP (with included/optional cable) for fast diagnostics on BMW F/G chassis and newer Volvos.

• V.A.G. Guided Functions: Step-by-step on-screen repair guidance for Volkswagen Group vehicles (VW, Audi, Skoda, SEAT).

1️⃣OE-Level All System Diagnostics

Access all vehicle control modules including Engine, Transmission, ABS, SRS, BCM & more:
✔ Read/Clear fault codes
✔ ECU Information & Live Data
✔ Component Matching & Initialisation
✔ Active Tests
✔ 50+ Maintenance Functions

2️⃣ Bidirectional Control / Active Test

Send commands to vehicle modules to test components such as:

• Fuel Pump

• Cooling Fan

• A/C System

• Door Locks

• Injectors
  Ensures systems respond correctly before replacing parts.

3️⃣ Advanced ECU Coding (Online & Offline)

Customize and restore functions:

• Unlock hidden features

• Disable seatbelt buzzer

• Auto-folding mirrors

• Module adaptation after replacement
  👉 Online coding for VW & Audi (2000–2020)
  (Vehicles after 2020 require SFD unlock)

4️⃣ 50+ Reset / Service Functions

1. Essential Service Resets

• Oil Reset: Resets the engine oil life system after an oil change.

• EPB Reset: Deactivates and activates the electronic parking brake for pad replacement.

• SAS Reset: Calibrates the steering angle sensor to zero.

• BMS Reset: Registers a new battery to the vehicle's monitoring system.

• ABS Bleeding: Removes air from the brake system to restore firm pedal feel.

• TPMS Reset: Relearns tire pressure sensor IDs after replacement or rotation.

• Throttle Matching: Re-initializes throttle actuators for smooth idling.

2. Engine & Performance Functions

• Injector Coding: Writes new injector codes to the ECU for precise fuel delivery.

• DPF Regeneration: Clears particulate matter from the diesel filter via high-temp combustion.

• Gear Learning: Relearns the crankshaft position sensor tolerances to fix misfire issues.

• EGR Adaption: Learns the EGR (Exhaust Gas Recirculation) valve after cleaning.

• Turbo Matching: Essential after replacing or repairing a turbocharger.

• Crank Position Sensor Adaptive Learning: Calibrates the sensor for accurate ignition timing.

• GPF Regeneration: Specifically for Gasoline Particulate Filters (common in newer Euro 6 cars).

3. Transmission & Chassis Functions

• Gearbox Relearn: Completes transmission self-learning to improve shifting quality.

• Clutch Matching: Essential for vehicles with dual-clutch or automated manual transmissions.

• Suspension Calibration: Adjusts body height sensors for air or electronic suspension systems.

• Tyre Reset: Sets size parameters if you have changed to non-standard tire sizes.

• Motor Angle Calibration: Specifically for hybrid and electric vehicle drive motors.

4. Advanced Body & Comfort Adaptations

• AFS Headlamp Reset: Initializes adaptive headlamp systems after a sensor or unit change.

• Sunroof Initialization: Sets the memory and anti-pinch limits for power sunroofs.

• Windows Calibration: Restores one-touch up/down functions for power windows.

• Seat Calibration: Matches seats with memory functions.

• Airbag (SRS) Reset: Resets airbag data to clear collision fault indicators (where permitted).

• Rain & Light Sensor Reset: Calibrates the sensors responsible for auto-wipers and auto-lights.

• Language Change: Changes the system language on the vehicle's instrument cluster.

5. Emissions & New Technology Functions

• AdBlue Reset: Required after filling or servicing the diesel exhaust fluid system.

• NOx Sensor Reset: Resets the catalytic converter learned values.

• Stop/Start Reset: Manages the automatic engine start-stop system settings.

• A/F Reset: Learns the Air/Fuel ratio parameters for optimized combustion.

• Coolant Bleeding: Activates the electronic water pump to vent air from the cooling system.

5️⃣ Wireless Smart Diagnosis

Upgraded Bluetooth VCI “Ediag PRO”
✔ Faster & stable connection
✔ Auto VIN scanning (supported vehicles)
✔ Intelligent memory to resume previous diagnostics

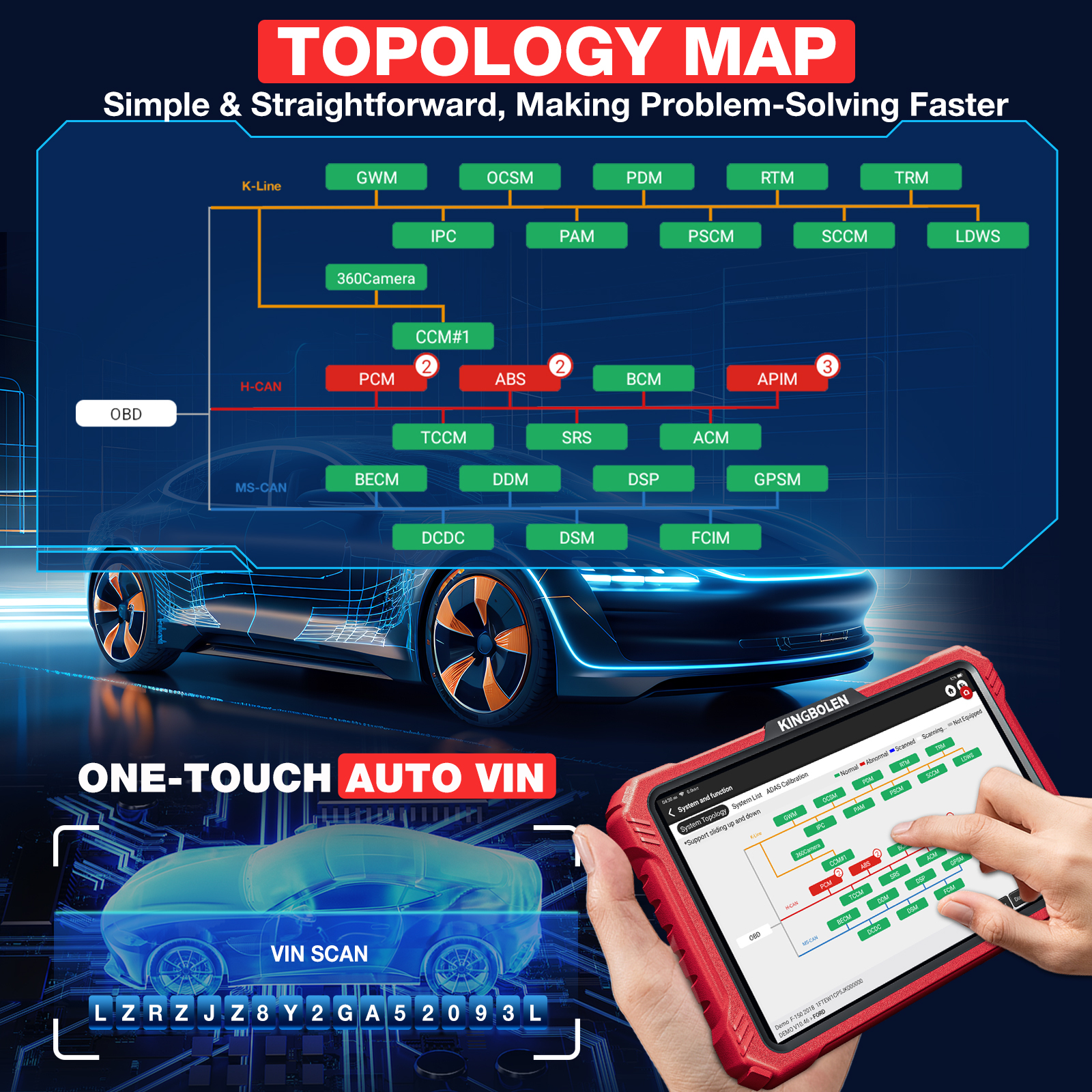

6️⃣ Topology Mapping

Visual scan of all systems:

• Detect normal/abnormal ECUs instantly

• Saves diagnostic time during complex repairs

7️⃣ VAG Guided Functions

Step-by-step repair guidance for:
VW / Audi / BMW — improves accuracy & reduces guesswork

8️⃣ FCA SGW | CAN-FD | DOIP Support

• Unlock FCA SGW for Dodge, Jeep, Chrysler, Alfa Romeo, Fiat (2019+)

• CAN-FD for newer GM vehicles (Chevrolet, GMC 2020+)

• DOIP for BMW, Volvo, Mercedes 2020+ and newer Land Rover/Jaguar

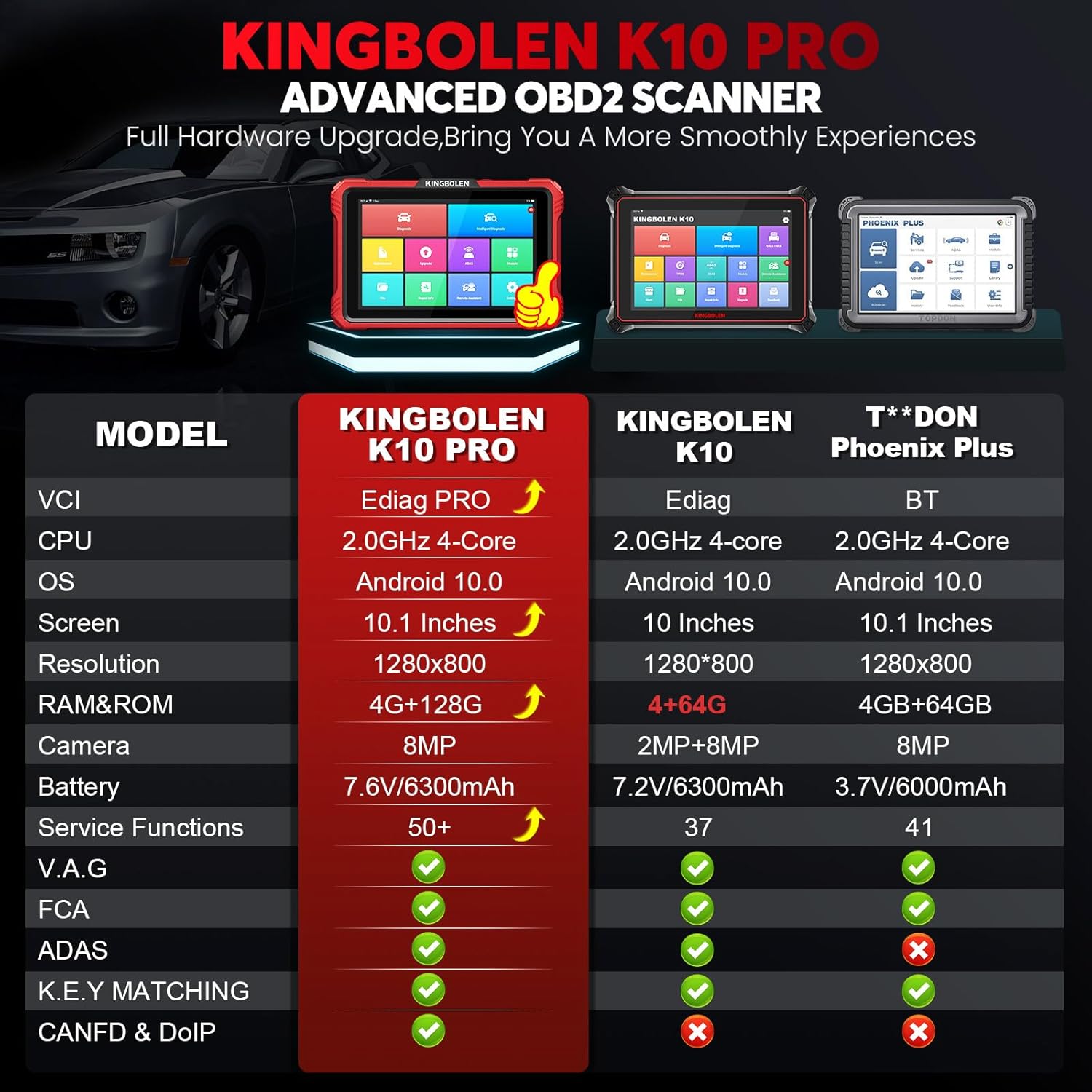

High-End Hardware Specifications

Extra Tools & Extensions

• Key Matching (basic, varies by model)

• 12-in-1 Live Data Graph

• Data Playback & Export

• Online Repair Database + DTC Lookup

• TeamViewer Remote Assistance

• Optional add-ons: TPMS Tool, Endoscope, Battery Tester
