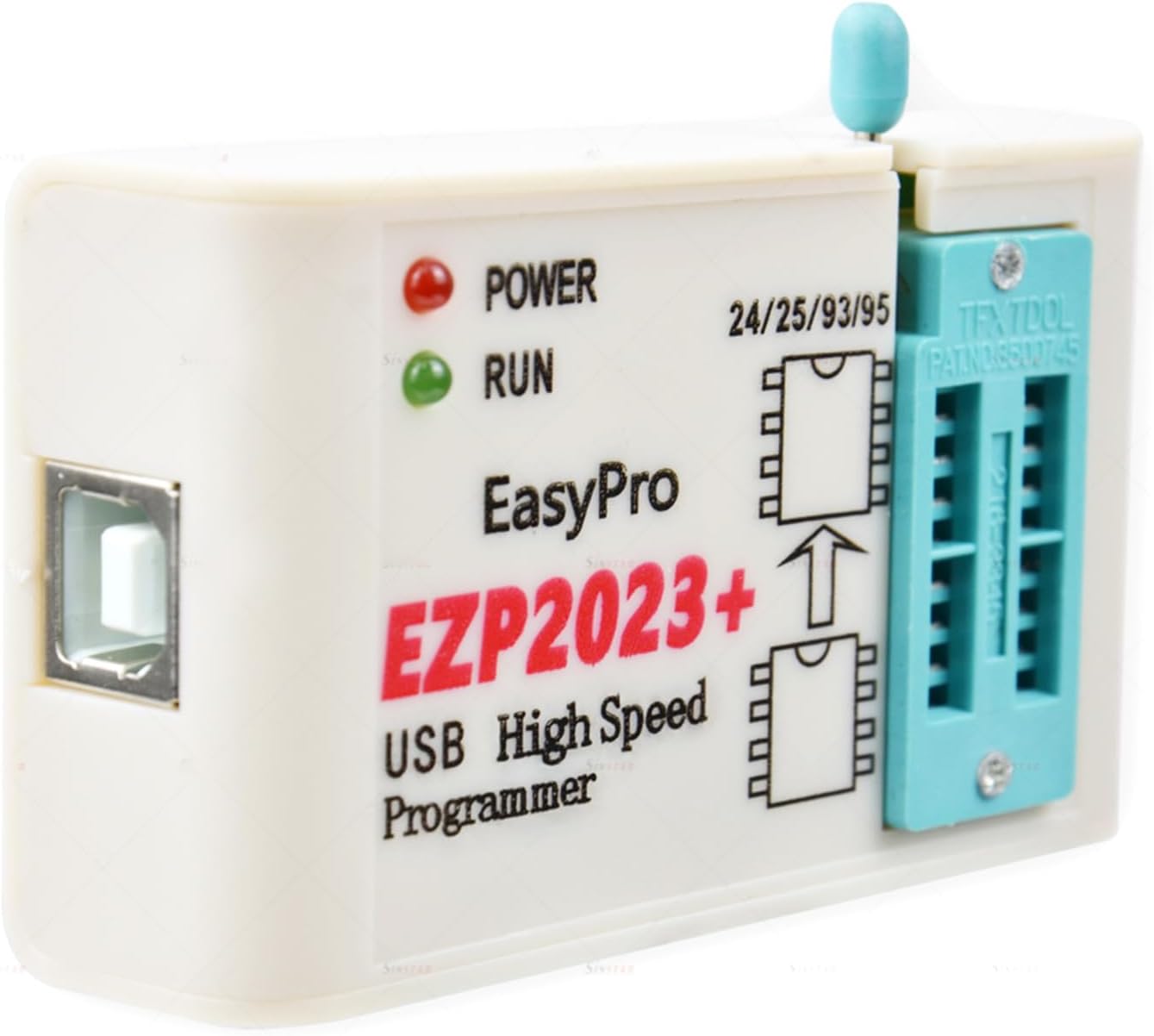

EZP2023+ High-Speed USB SPI Programmer is a high-speed tool for reading, writing, and erasing BIOS chips and SPI Flash memory. It is suitable for motherboard repair, TV firmware updates, and automotive ECU chip tuning.
High-Speed Operation: It reads a 25 series BIOS chip in just a few seconds—significantly faster than standard CH341A programmers.
Intelligent Chip Recognition: Features automatic chip identification, which instantly detects the model and manufacturer of the connected SPI Flash or EEPROM chip.
Off-line Copying: Supports standalone chip cloning (on certain models), allowing you to copy data from one chip to another without being connected to a PC.
Wide Compatibility: Supports a massive database of chips, including 24 EEPROM, 25 SPI Flash, and 93 EEPROM series used in computers, appliances, and car electronics.
Plug-and-Play USB 2.0: Powered via the USB port
Firmware Upgradable: The device firmware can be updated via software to add support for newer chips as they are released.
Compact Portability: Its small, rugged form factor makes it easy to carry for field repairs or keep in a mobile toolkit.
Multiple Socket Options: includes a ZIF (Zero Insertion Force) socket for easy chip placement and often comes with SOP8/16 adapters for surface-mount components.
| Feature | Specification |
| Interface | USB 2.0 High Speed (12Mbps) |
| Supported Chips | 24, 25, 93 Series SPI Flash & EEPROM |
| Voltage Support | 3.3V / 5.0V (Automatic switching) |
| Software Support | Windows XP, 7, 8, 10, 11 |
| Read Speed | Up to 12Mbps (approx. 3s for 8M chip) |
Item: SPI Programmer
Material: ABS
Connector: USB 2.0 (12Mbps)
Model: EZP2023
Supply current: 1A
Voltage: 5V
Size: about 70 x 45 mm.
Optional Type: Basic USB programmer with 5 adapters/programmer with 6 adapters/programmer with 7 adapters.
Programmer with 10 adapters
1 x EZP USB Programmer Main Unit
1 x USB Cable
2 x SOP8/16 to DIP8 Simple Adapters
1 x Software CD (or download link)
