ELM 327 V1.5 OBD2 Scanner

Description

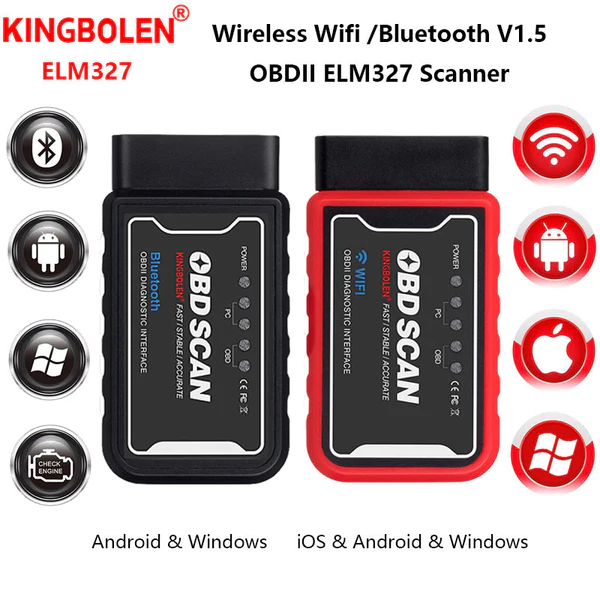

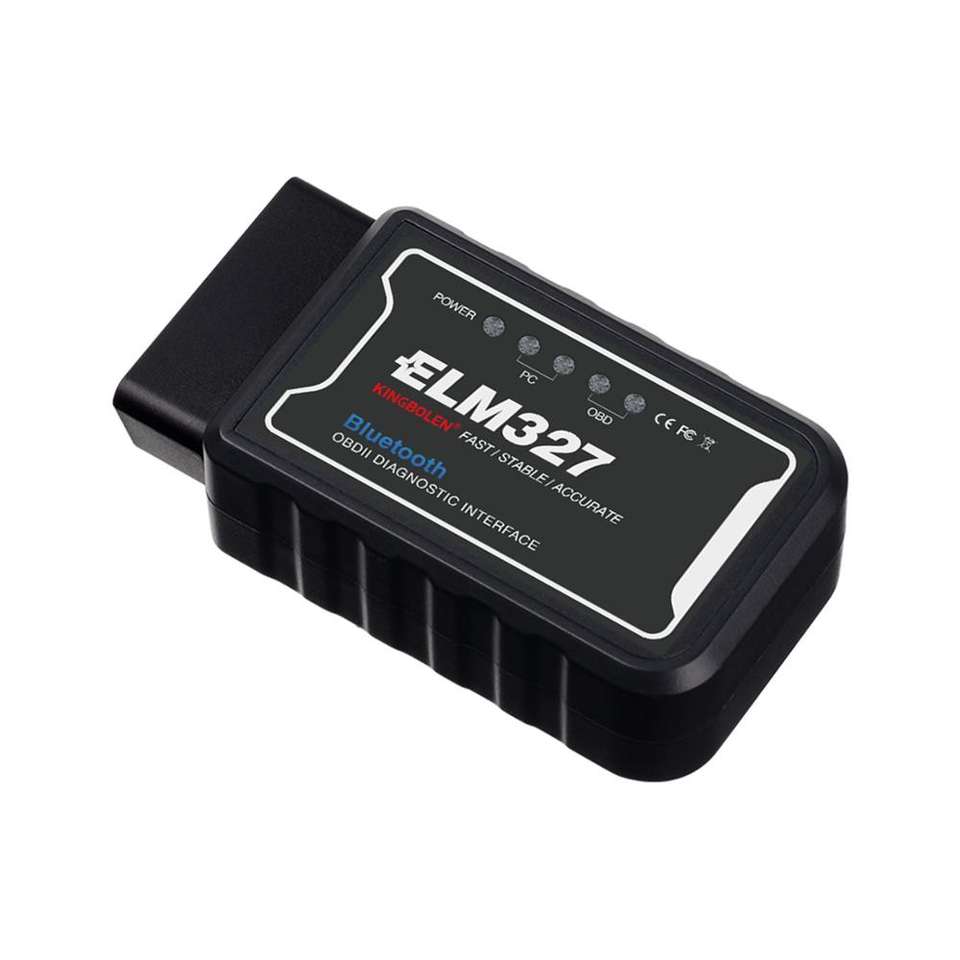

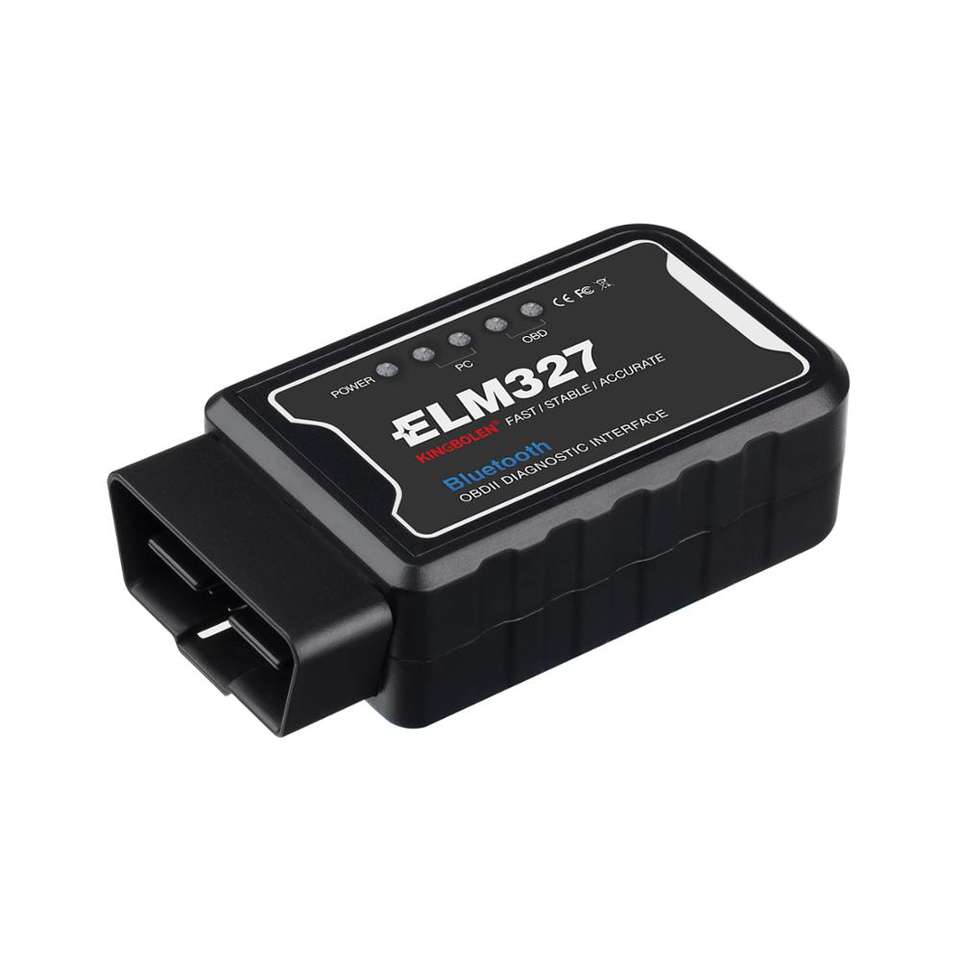

ELM 327 V1.5 OBD2 Scanner is a compact Bluetooth or Wi-Fi vehicle diagnostic adapter that connects to a car’s OBD2 port and communicates with a smartphone, tablet, or computer to perform basic diagnostics. Using compatible mobile apps such as Torque, Car Scanner, or OBD Auto Doctor, users can read and clear engine fault codes, monitor live vehicle data, and diagnose the cause of the Check Engine Light.

The device is based on the ELM327 microcontroller interface, which translates vehicle ECU communication protocols into a format that diagnostic software can read.

Because of its small size and wireless connectivity, the ELM327 V1.5 is widely used by mechanics, DIY car owners, and technicians who want a simple and affordable diagnostic tool.

Key Features

• Read & Clear Engine Fault Codes – Diagnose the cause of the Check Engine Light and reset it after repairs.

• Real-Time Live Data Monitoring – Displays engine parameters such as RPM, coolant temperature, fuel trim, and throttle position.

• Wireless Connectivity – Available in Bluetooth, Wi-Fi, or USB versions for connection to phones or laptops.

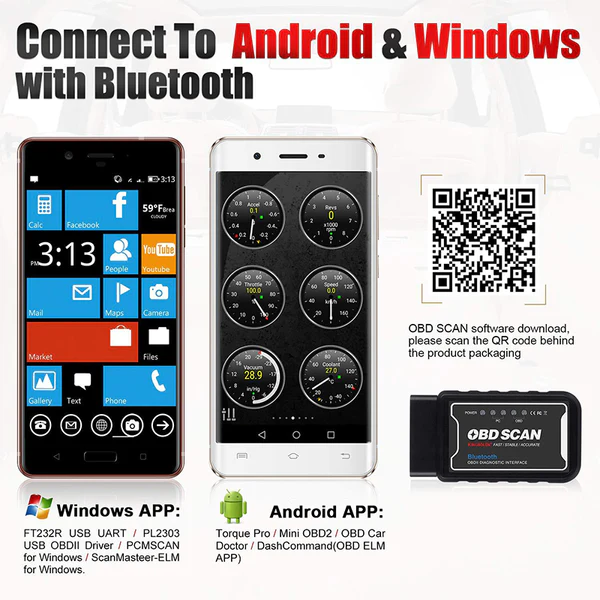

• Works with Popular Diagnostic Apps – Compatible with apps like Torque, OBD Auto Doctor, Car Scanner, and ScanMaster.

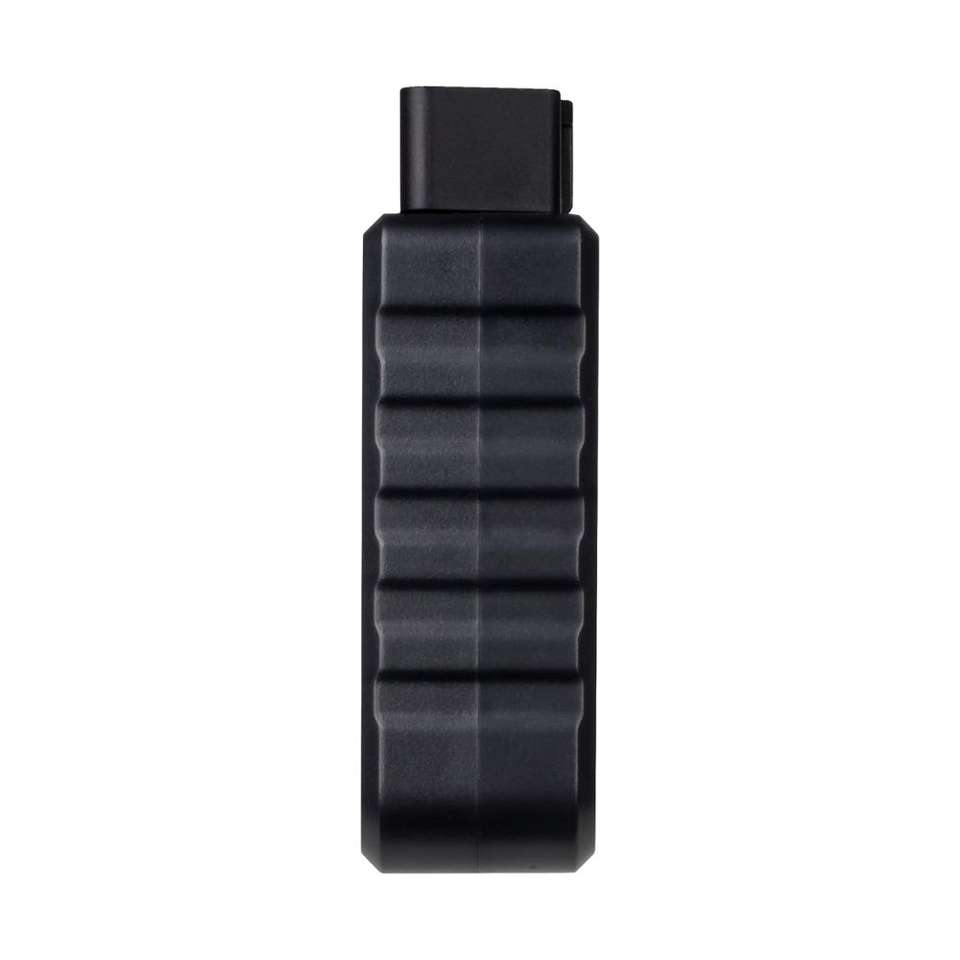

• Compact Plug-and-Play Design – Small adapter plugs directly into the vehicle’s OBD2 port.

• Supports Multiple OBD2 Protocols – Compatible with most modern vehicles worldwide.

Supported OBD2 Protocols

The ELM327 chip supports several vehicle communication standards including:

• SAE J1850 PWM

• SAE J1850 VPW

• ISO 9141-2

• ISO 14230-4 (KWP2000)

• ISO 15765-4 CAN

• SAE J1939 protocols

Following are some of the parameters which could be read from the vehicle.

• Vehicle Speed
• RPM
• Fuel Consumption*
• Engine Coolant Temp
• Fuel Pressure
• Calculated Engine Load
• Throttle Position
• Intake Manifold Pressure
• Air Intake Temp
• Timing Advance
• Mass Air Flow
• Fuel Level
• Barometric Pressure
• EVAP System Vapor Pressure
• Fuel Trim

*note: Your vehicle may not support all above parameters. How many parameters you can get is depended on the vehicle manufacturer's implementation.

Where can I get the software for ELM 327 OBD2 Scanner ?

You can log on to the apple application store to get your commercial software, such as Dynolicious.
And There is a software in the CD-ROM comes along with the device. You can use this piece of software to config and test the WI-FI OBD AUTO CHECKER.

ELM 327 OBD2 Scanner Specifications:

Material: automotive grade plastic
Operating temperature: -15 to 100 Degrees Celsius
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Item size: 9 * 5 * 3cm (3.5 *  2.0 * 1.2in)
Item weight: 75g/2.6oz

Packing List

• Elm327 Main Unit
• CD-ROM
