Connects BMW 10-pin ports to standard OBD2 tools.
Works with GS-911 and MotoScan.
Durable cable with stable signal transfer.
Simple plug-and-play design.

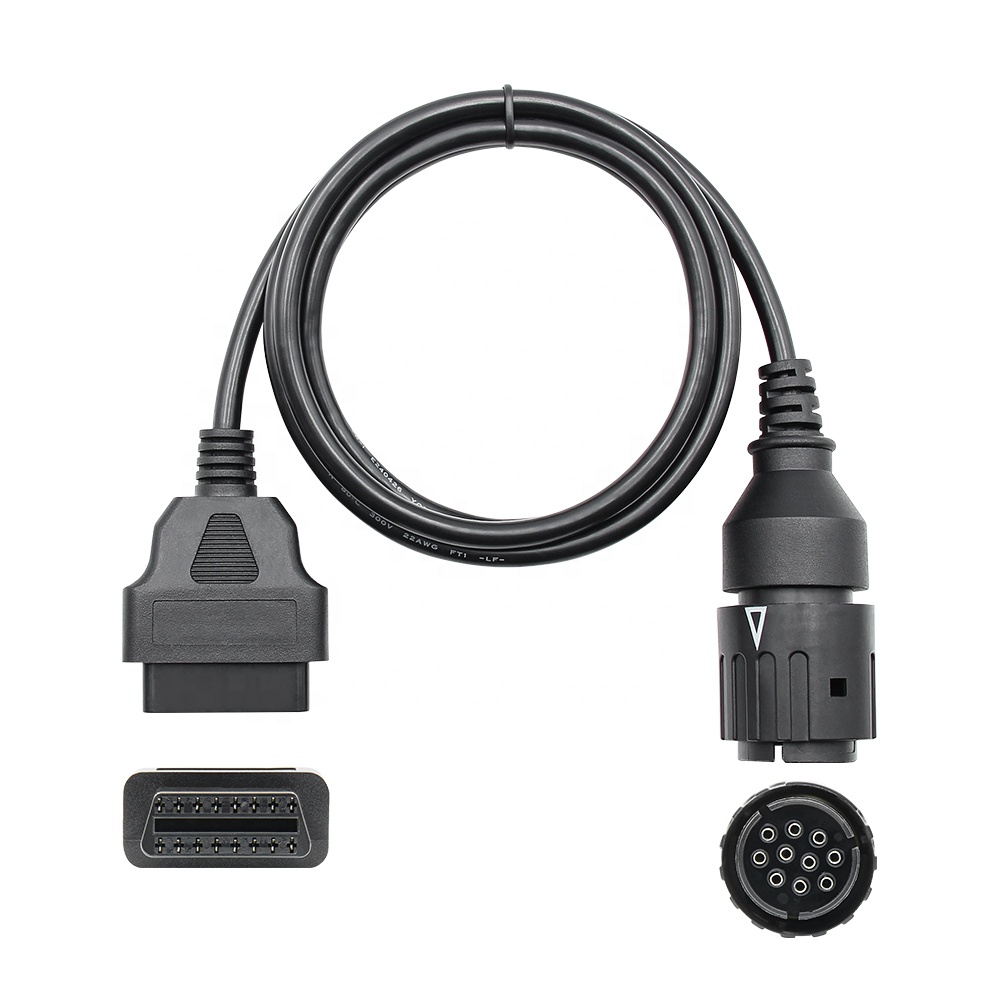

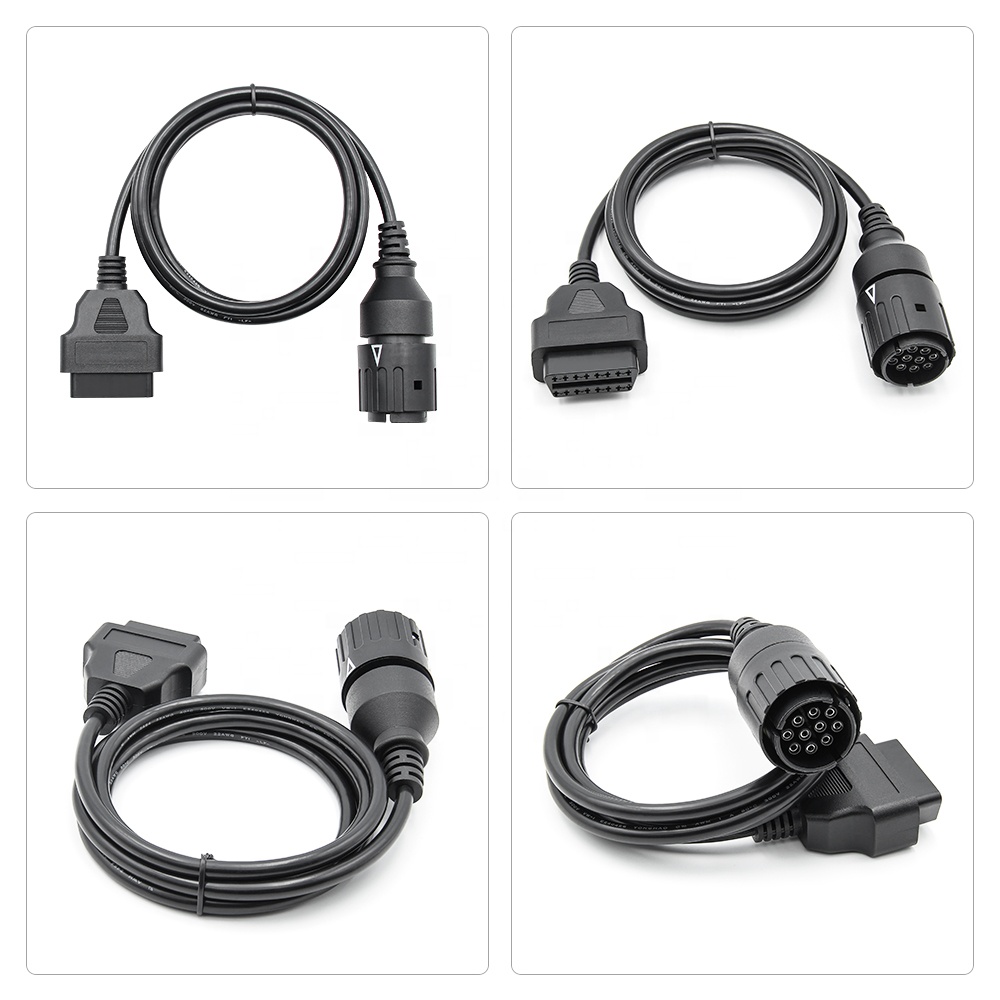

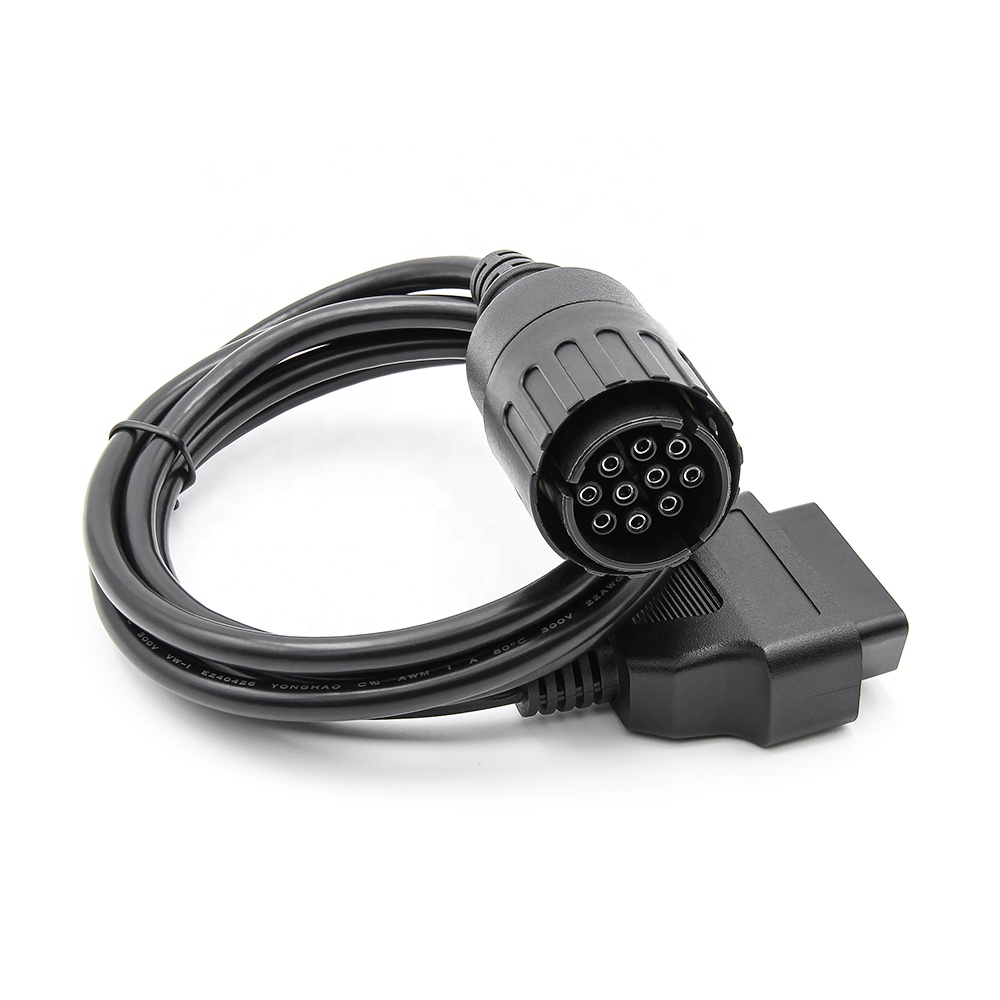

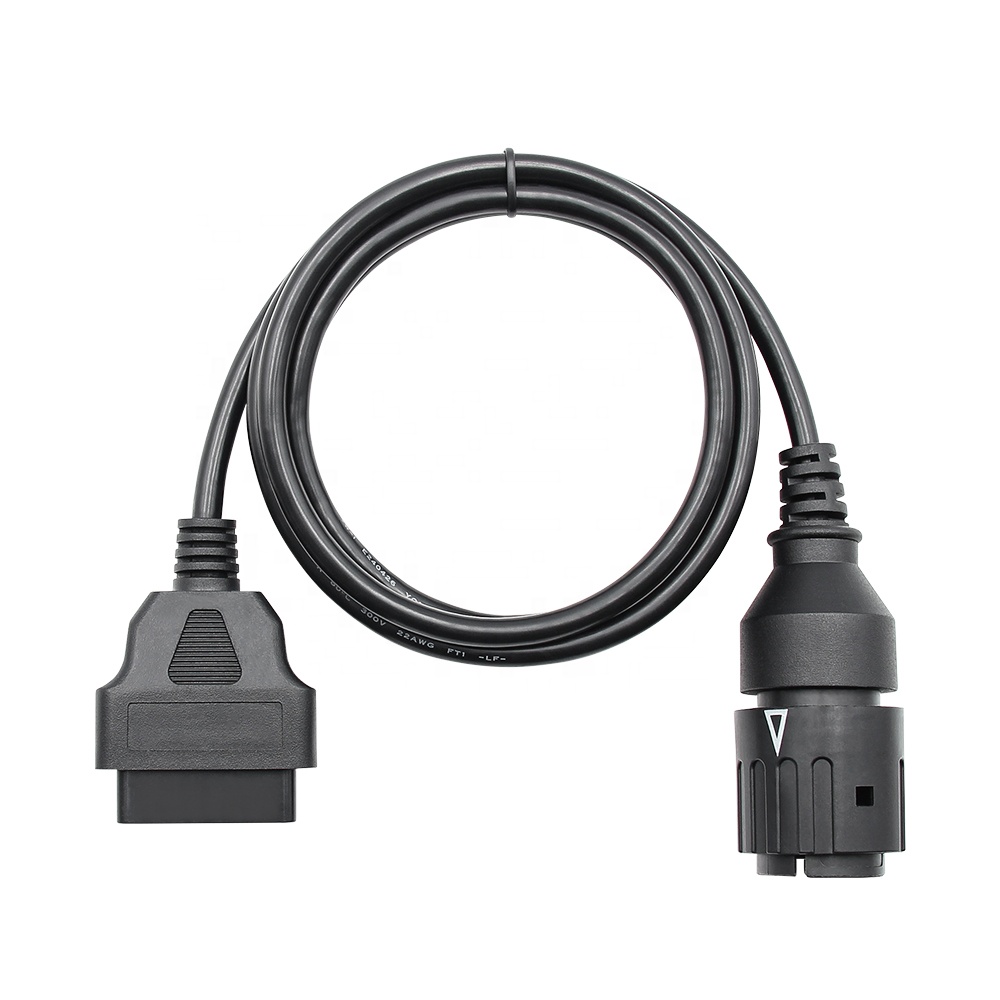

BMW Motorcycle 10pin OBD2 Adaptor Cable is a specialized diagnostic bridge used to connect standard 16-pin OBD2 scanners or Bluetooth dongles to the round 10-pin diagnostic port found on older BMW motorcycles.
Diagnostic Bridge: Acts as a converter from the proprietary BMW 10-pin round connector to a standard J1962 16-pin OBD2 female interface.
Feature Access: When paired with compatible software, it allows you to:
Read and clear Diagnostic Trouble Codes (DTCs).
Reset Service Intervals and maintenance reminders.
View real-time sensor data (engine temp, RPM, O2 readings).
Perform actuator tests (ABS pump bleeding, fan tests) and ECU coding.
This cable works with nearly all "round-port" BMW bikes, including:
R-Series: R1200GS, R1200RT, R1200R, R nineT.
F-Series: F650GS, F700GS, F800GS/GS Adventure, F800R/ST/GT.
S-Series: S1000RR, S1000XR, HP4.
K-Series: K1200S/R/GT, K1300S/R/GT, K1600GT/GTL.
G-Series: G650GS, G450X.
To get the most out of this cable, recommend these tools to your customers:
Motoscan App (Android): The most popular and affordable solution for BMW bikers.
UniCarScan / OBDLink LX: Excellent Bluetooth interfaces that pair perfectly with this cable.
BMW ICOM / ISTA-D: For professional workshops doing deep-level dealer programming.
| 16-Pin (OBD2 Female) | 10-Pin (BMW Round) | Signal |
| Pin 7 | Pin 1 | K-Line (BMS) |
| Pin 8 | Pin 2 | K-Line (ABS) |
| Pin 4 + 5 | Pin 4 | Ground (GND) |
| Pin 16 | Pin 6 | +12V Battery Power |
| Pin 6 | Pin 7 | CAN High |
| Pin 14 | Pin 9 | CAN Low |
