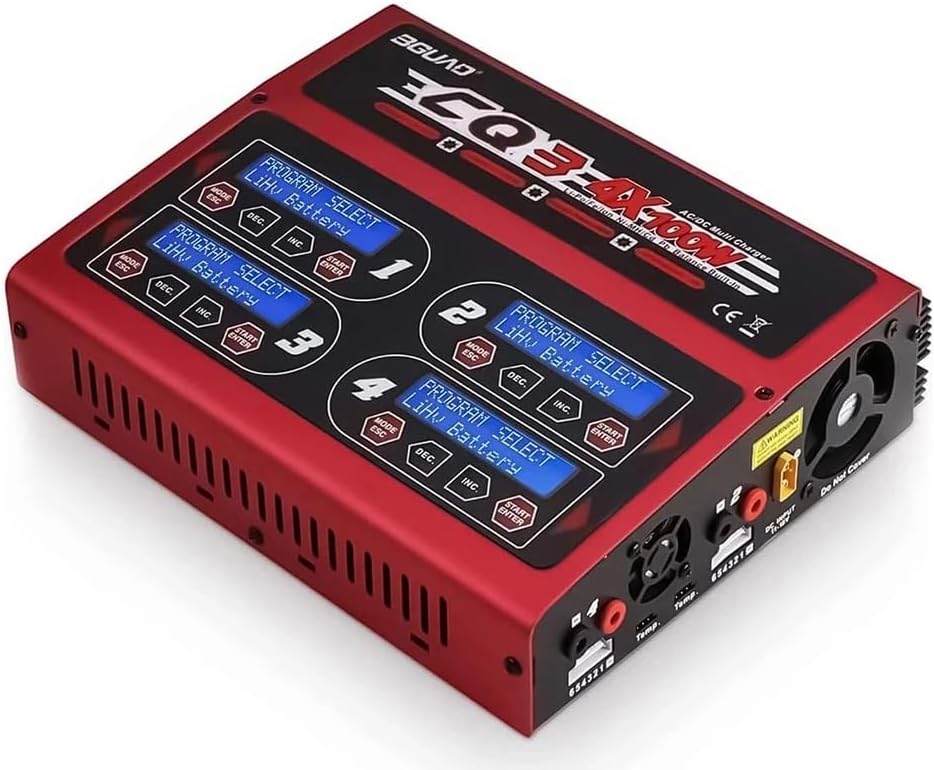

BGUAD CQ3 10A 100W Smart Battery Charger

Description

BGUAD CQ3 10A 100W Smart Battery Charger is a high-performance, quad-channel smart charger designed for RC hobbyists, drone pilots, and automotive technicians. This versatile station features four independent 100W ports, allowing you to charge, discharge, or balance up to four different battery types simultaneously—each with its own dedicated LCD screen and control buttons.

With support for AC and DC dual input, it is just as effective in a professional workshop as it is in the field powered by a 12V car battery.

Key Features of BGUAD CQ3 10A 100W Smart Battery Charger

• Quad-Channel Independence: Four separate circuits allow you to charge four batteries with different chemistries and cell counts at the same time without interference.

• 100W x 4 High Output: Delivers up to 10A and 100W per channel (400W total), significantly reducing the wait time for high-capacity battery packs.

• "Pre-Charge" Recovery Mode: Specifically designed to save over-discharged Lithium batteries by performing a gentle slow-charge before entering fast-charge mode.

• Smart Security Protection: Features integrated temperature cut-off, short circuit prevention, over-current/voltage protection, and reverse polarity protection.

• Memory Function: Save and load up to 20 different charging profiles to quickly start your most frequent charging routines with a single click.

• Dual Input Versatility: Built-in AC power supply for home use (110V/220V) and a DC input (11-18V) for field use.

Safety & Protection

The CQ3 ensures safe charging at all times. It switches to trickle mode once the battery is fully charged, preventing overcharging and extending battery lifespan.

Technical Specifications of BGUAD CQ3 10A 100W Smart Battery Charger

• Model: BGUAD CQ3

• Input: AC 100–240V

• Output: 12V/10A, 24V/5A

• Power: 100W

• Battery Range: 6Ah – 150Ah (12V), 6Ah – 100Ah (24V)

• Functions: Charging / Maintenance / Repair

• Balance Current: Max. 400mA
• Balance Tolerance:±0.01V
• NiCd/NiMH Cell Count:1 - 15 CellsL
• Lithium Battery Types: LiPo, LiFe, LiHV
• Lithium Battery Cell Count: 1 - 6 Cells
• Pb Battery Voltage: 2 - 20VW
• Weight: 1750gD
• Dimensions: 240x220x68mm 9.4x 8.6x 2.6 inch

Applications of  BGUAD CQ3 10A 100W Smart Battery Charger

Cars | Motorcycles | Trucks | SUVs | Boats | ATVs | Agricultural Equipment

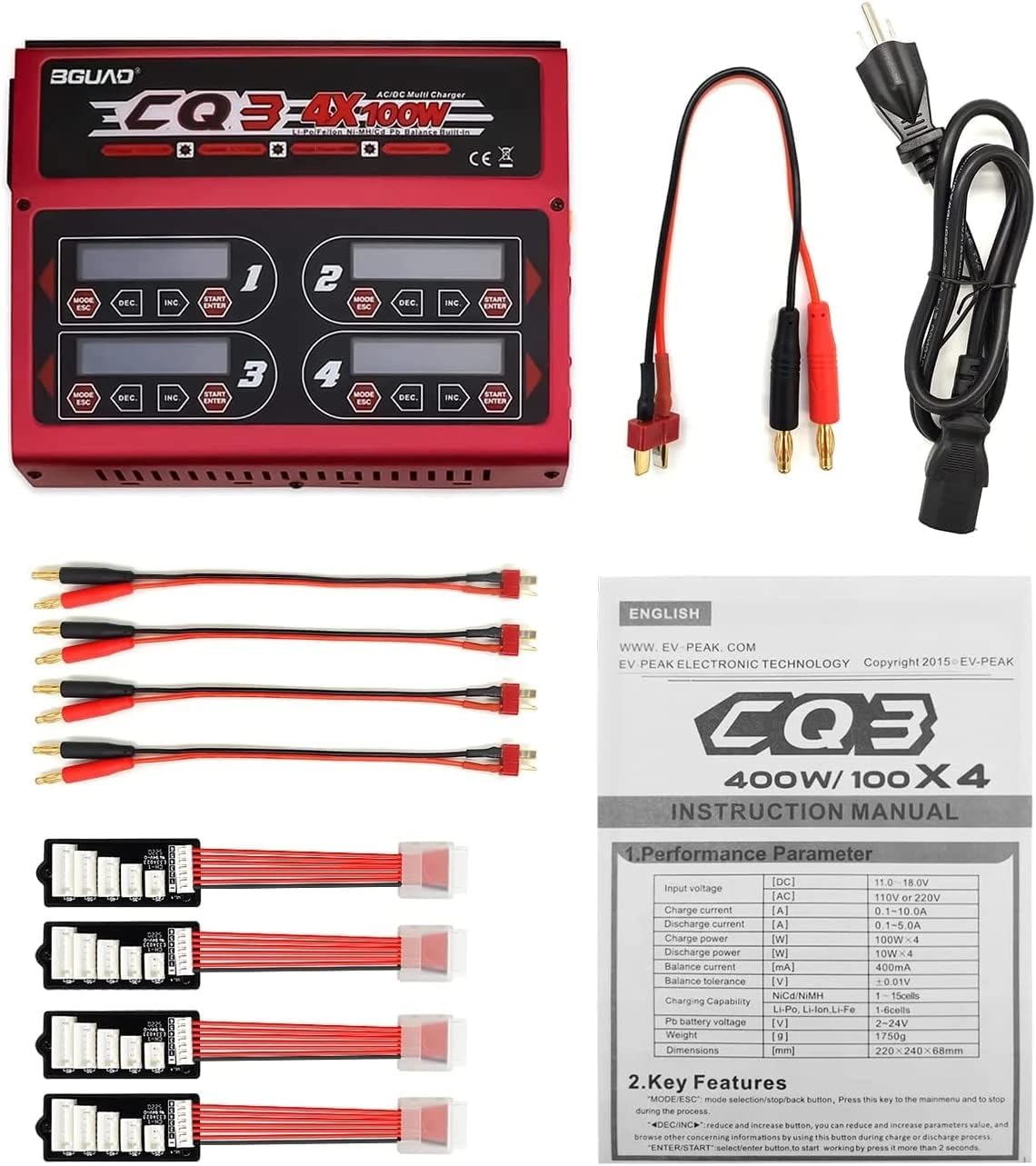

What is in the Box

• AC/DC Charger x 1
• AC Power Cord USA x 1
• XT60 Plug x 1
• T-Plug x 4
• JST-XH Balancing Plug Wire x
• Instruction Manual
